1U Industrial Rackmount PC 6 Intel LAN Intel Core i3 i5 i7
Product Details:
| Place of Origin: | Industrial Computer Manufactur |
| Brand Name: | YANLING |
| Certification: | CCC, CE, ROHS, ISO9001 |
| Model Number: | NS-1U8L B75 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Unit |
|---|---|
| Price: | $ Customized |
| Packaging Details: | Each pc for one neutral box |
| Delivery Time: | 3~5 Working Days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 10000 Pcs/Month |
Detailed Product Description
1U Industrial Rackmount PC DescriptionIndustrial rackmount PC (Model: NS-1U8L B75) is a professional 1U, 19-inch rack-mounted network security application platform designed for stable, 24/7 high-traffic data processing. Encased in a high-quality cold-rolled sheet shell, this system provides the physical durability required for server room environments. It supports 3rd Generation Intel Core i3/i5/i7 processors (LGA1155 socket) on the Intel B75 chipset, offering a balanced combination of cost-efficiency and reliable performance. With 6*Intel 1000M LAN ports (including optional 2*Optical Fiber ports), this industrial rackmount PC serves as a high-density connectivity hub for complex network infrastructures. |  |
Specification of 1U Industrial Rackmount PC NS-1U8L (B75) | |
Model | NS-1U8L (B75) |
Color | Black |
Shell Material | Good quality of cold-rolled sheet |
Processor | Intel Core i3 3220（dual core, 4 threads，3.3 GHz） |
Intel Core i5 3450（quad core, 4 threads，3.1 GHz，turbo boost 3.5 GHz） | |
Intel Core i7 3770（quad core, 8 threads，3.4 GHz，turbo boost 3.9 GHz） | |
Chipset | Intel B75 |
Memory | Support 2*DDR3 1333/1600 MHz，Max:16 GB |
Display Port | 1*VGA |

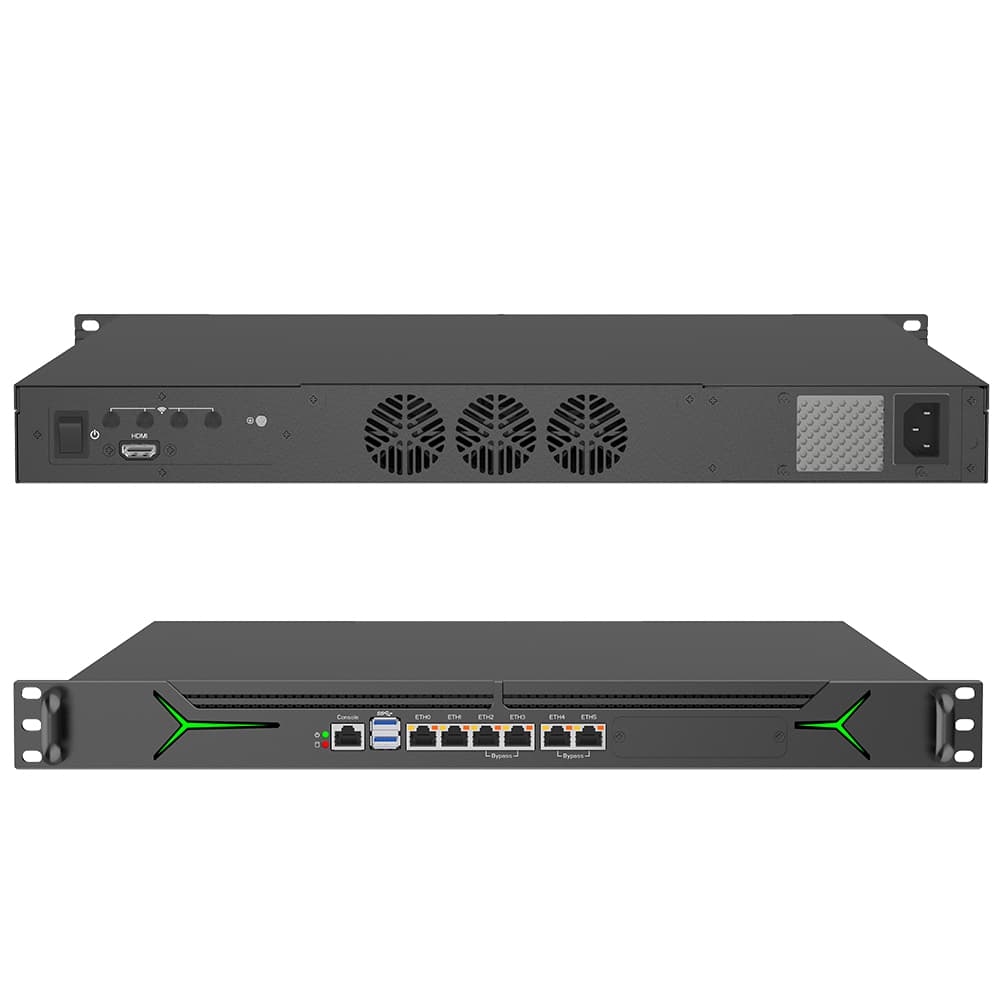

Front I/O Port | 1*RJ45 COM（support Console），2*USB2.0，6*Intel 1000M LAN |
Back I/O Port | 1*VGA，1*Power Switch，1*AC power port |
Expansion Slot | 1*MINI PCIE（Support MSATA） |
1*MINI PCIE（WIFI/Bluetooth optional） | |
LAN | 6*Intel i210-AT 1000M LAN，2*Optical Fiber Ports optional |
Storage | 1*MSATA |
1*CF Slot | |
1*2.5” SATA HDD（2*2.5” SATA HDD optional） | |
Power Supply | 110～240V/50～60Hz AC Input |
Work Temp | -10℃ ～ +50℃ |
Work Humidity | 5% ～ 95% non-condensing |
Dimension | 440 * 250 * 44.5mm |
Weight | 3.4kg |

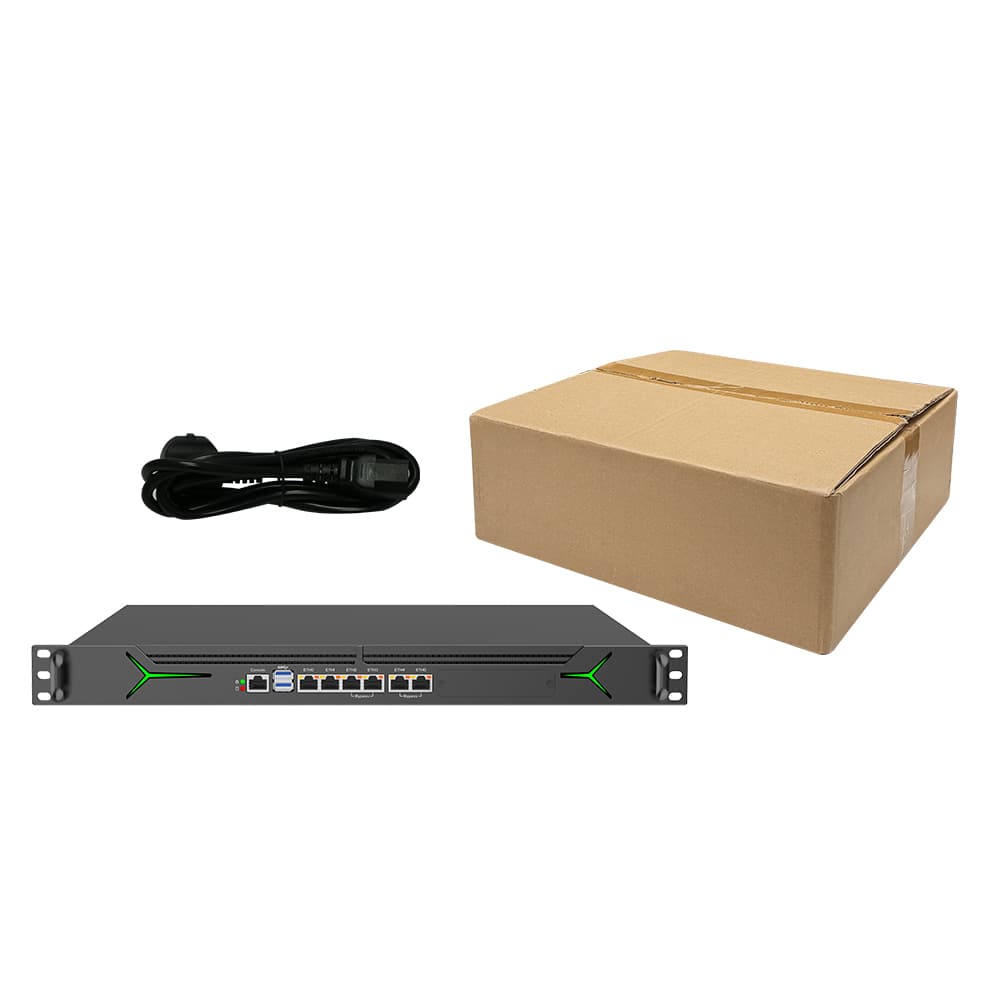

Accessory of This 1U Industrial Rackmount PC | ||
Name | Quantity | Specification |
Power Supply | 1 | 1U 150W/250W |
Power Cord | 1 | Any Plug is optional (Chinese, British, USA standard etc) |
CD Driver | 1 | Neutral |
Order Information of 1U Industrial Rackmount PC NS-1U8L (B75) | |||
Configuration 1 | NS-1U8L (B75) | Intel Core i3 3220 | Standard Port |
Configuration 2 | Intel Core i5 3450 | Standard Port | |
Configuration 3 | Intel Core i7 3770 | Standard Port | |
|  |
Professional Value Analysis of 1U Industrial Rackmount PC
Optimized Network Security: The 1U architecture is specifically engineered as a Network Security Platform, making it an ideal hardware foundation for specialized firewalls and VPN gateways.
High-Speed Throughput: Utilizing Intel i210-AT 1000M LAN controllers ensures lower CPU overhead and higher packet processing efficiency compared to standard consumer-grade network chips.
Versatile Storage & OS Support: With slots for MSATA, CF, and dual 2.5" HDD, this industrial rackmount PC offers flexible data management and supports Windows 7, 8, 10, and Linux operating systems.
Reliable Server-Grade Build: The cold-rolled sheet construction and rack-mountable ears allow for secure installation in standard server cabinets, ensuring EMI protection and structural integrity.
Recommended Projects & Target Buyers: Who needs this 1U Industrial Rackmount PC
Target Applications:
Cybersecurity Infrastructure: Deploying enterprise firewalls (pfSense/OPNsense), IDS/IPS systems, and secure VPN routers.
Intelligent Network Monitoring: Serving as a central server for network traffic analysis or gateway management.
Data Communications: Managing terminal connections in telecommunications or industrial automation hubs.
Ideal for:
IT System Integrators looking for a stable, long-lifecycle 1U hardware platform.
Network Engineers requiring high port density with Intel-based network stability.
Factory Operators needing a rack-mounted controller that survives in standard non-climate-controlled environments (-10°C to +50°C).
YANLING Service & Support
Factory-Direct Wholesale
| Technical Customization
| Certified Reliability
|
Conclusion & Call to Action
The NS-1U8L B75 industrial rackmount PC is the ultimate balance of performance and reliability for network security. By integrating 6*Intel LAN ports into a durable 1U rack-mount chassis, YANLING provides the robust hardware your network infrastructure demands.
Upgrade your network security today. Contact YANLING to discuss your project requirements and receive a professional quotation on the NS-1U8L B75!
