Fanless i7 Industrial Computer with 12th Gen Core, Dual Storage, and Wide Voltage Support
Product Details:
| Place of Origin: | Industrial Computer Manufactur |
| Brand Name: | YANLING |
| Certification: | CCC, CE, ROHS, ISO9001 |
| Model Number: | IBOX-711 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Unit |
|---|---|
| Price: | $ Customized |
| Packaging Details: | Each pc for one neutral box |
| Delivery Time: | 3~5 Working Days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 10000 Pcs/Month |
Detailed Product Description
Fanless i7 Industrial Computer Introduction
The IBOX-711 is a Fanless i7 Industrial Computer, powerhouse engineered for the most demanding industrial environments. Combining the raw processing power of Intel's 12th Generation Core i7 with a robust, fanless architecture, this system is designed to provide 24/7 reliability without compromise. Encased in an all-aluminum alloy structure, it excels in heat dissipation and physical durability, making it an ideal choice for high-stakes applications in automation and machine vision.
Detailed Specifications of Fanless i7 Industrial Computer | |
Model | IBOX-711 |
Color | Blue + grey (color available) |
Material | High quality all-aluminum alloy, surface hard anodized |
Processor
| Intel N97 (4 Core 4 threads, 6MB cache, Max Turbo 3.6 GHz) |
Intel i5 1035G1（4 Core 8 threads, 6MB cache, Max Turbo 3.6 GHz) | |
Intel i5 1235U (10 core 12 threads, 12MB cache, Max Turbo 4.4 GHz) | |
Intel i7 1255U (10 core 12 threads, 12MB cache, Max Turbo 4.7 GHz) | |
Memory | 1 x DDR4 3200 SODIMM ram slot, Max 32 GB |
BIOS | AMI EFI BIOS |
Display Chip | Intel ® UHD Graphics / Intel Iris Xe Graphics eligible |
Displays Port | 1x VGA , 1x HDMI |
Front I / O | 2 x USB2.0,1 x Power Button, 4P Phoenix Terminal (Remote Switch) 1 x 2.5-inch drawer style hard drive expansion slot |
Rear I / O
| 4 x USB3.0(N97:3x USB3.0, 1 x USB 2.0),2 x Intel Gigabit Ethernet, 1 x VGA , 1 x HDMI |
1 x 2P powered Phoenix terminal, 1* clear COMS button, 6* COM ( COM1-4 RS 485 , COM5-6 RS232 ) | |
10P Phoenix terminal 4 in 4 out GPIO (with optical coupler isolation,9-24V wide voltage), 6P Phoenix Terminal (Customizable Pin) | |
Expansion I / O
| 1 x M.2 2280 M-key slot (SATA) |
1 x MINI PCIE (3G/4G, Core CPU support PCIE & USB , N97 only USB signal), with SIM card holder | |
1 x MINI PCIE slot (support WIFI/BT,Support PCIE & USB) | |
Optional Port ( standard shipments not included in): Audio , expandable 4-in-4-out GPIO | |
Expansion Slot | 1 x PCIE X8 slot (N97 1X, 1035G1/1235U/1255U4X)+1 PCI slot (32-bit) |
Network | N97: 2 x Intel i210 10 / 100 / 1000M Ethernet; 1035G1/1235U/1255U: 1 Intel i210-AT, 1 i219-V Gigabit Ethernet |
Storage | 1 x M.2 (SATA )slot, 1 x 2.5-inch HDD or SSD |
Input Voltage | DC 12~24V wide voltage input, support positive and negative reverse connection protection |
Other Functions | Auto Power on, Timing Boot, Wake On Lan, PXE, Watchdog (0~255 levels) |
Work Temp | 0℃ ~ + 50℃ (commercial HDD), -20℃ ~ + 60℃ (industrial SSD), with surface air flow |
Work Humidity | 5% ~ 95% non-condensed state |
Certificate | CE, CCC, FCC Class A, RoHS |
Dimension | 216 x 185 x 115 mm [Wall mount not included] |
Net Weight | 4kg [Wall mount not included] |
Application | Industrial Automation, Medical, Logistics And Transportation, Warehousing, Machine Vision etc |
Core Performance & Technical Advantages of This Fanless i7 Industrial Computer
Next-Gen Processing Power: Supports a versatile range of Intel processors, including the high-efficiency Intel N97 and powerful 10th/12th Gen Core i5/i7 CPUs to handle complex industrial workloads.
Rugged Fanless Design: The all-aluminum alloy chassis acts as a giant heat sink, allowing for a completely fanless design that eliminates noise and prevents dust intake, significantly extending the hardware's lifespan.

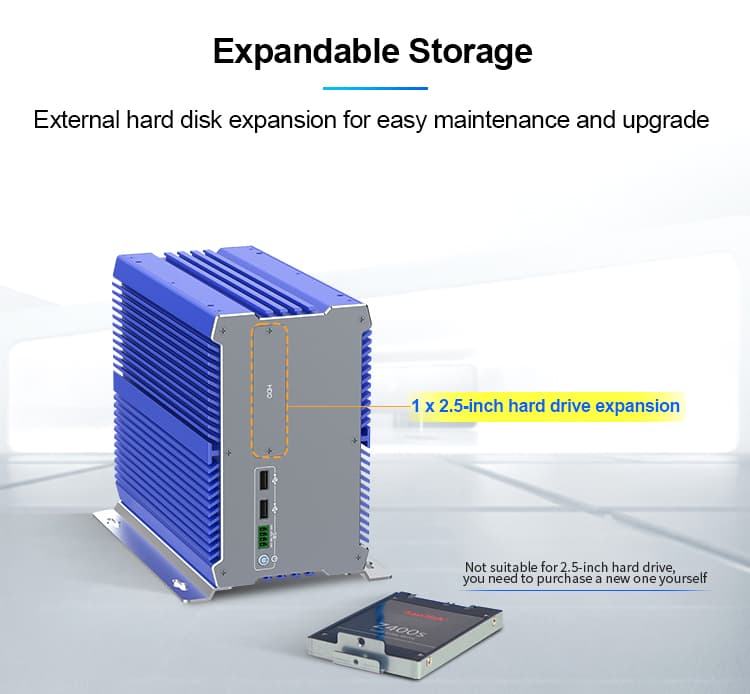

Dual Storage Solutions: Features a hybrid storage setup with 1 x M.2 (SATA) slot for high-speed OS booting and a 1 x 2.5-inch drawer-style HDD/SSD bay for massive data storage.
Industrial Networking: Equipped with dual Gigabit Ethernet ports—utilizing Intel i210-AT and i219-V controllers—ensuring stable and high-speed data transmission for IoT and networking tasks.
Expansive I/O Connectivity: Supports rich peripheral integration with VGA, HDMI, and up to 6 COM ports (supporting RS232/485), plus 4-in-4-out GPIO for direct machine control.
Operation of Fanless i7 Industrial Computer
The IBOX-711 is built to adapt to your specific workflow requirements with ease:
Wide Voltage Input: Supports DC 12~24V wide voltage input, featuring positive and negative reverse connection protection to safeguard your equipment against electrical fluctuations.
Extreme Environment Ready: Operates reliably in temperatures ranging from -20°C to +60°C (when using industrial SSDs), making it suitable for both freezing warehouses and hot factory floors.
Smart Management Features: Includes advanced BIOS functions such as Auto Power On, Timing Boot, Wake On Lan, PXE, and a Watchdog timer (0~255 levels) to ensure the system recovers automatically from software hangs.
Flexible Installation: The compact dimensions (216 x 185 x 115 mm) and wall mount support allow it to be integrated into tight control cabinets or directly onto industrial machinery.
Immediate Action Required
Don't let hardware limitations slow down your digital transformation. The IBOX-711 offers the perfect balance of elite performance and rugged reliability. Ensure your project's success with a machine that never sleeps.
Contact us now to secure your IBOX-711 and experience the pinnacle of industrial computing!
