2U Rack Mount Computer 4 Optical Port For Modernize Data Center
Product Details:
| Place of Origin: | Industrial Computer Manufactur |
| Brand Name: | YANLING |
| Certification: | CCC, CE, ROHS, ISO9001 |
| Model Number: | 2U6L-ADL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Unit |
|---|---|
| Price: | $ Customized |
| Packaging Details: | Each pc for one neutral box |
| Delivery Time: | 3~5 Working Days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 10000 Pcs/Month |
Detailed Product Description

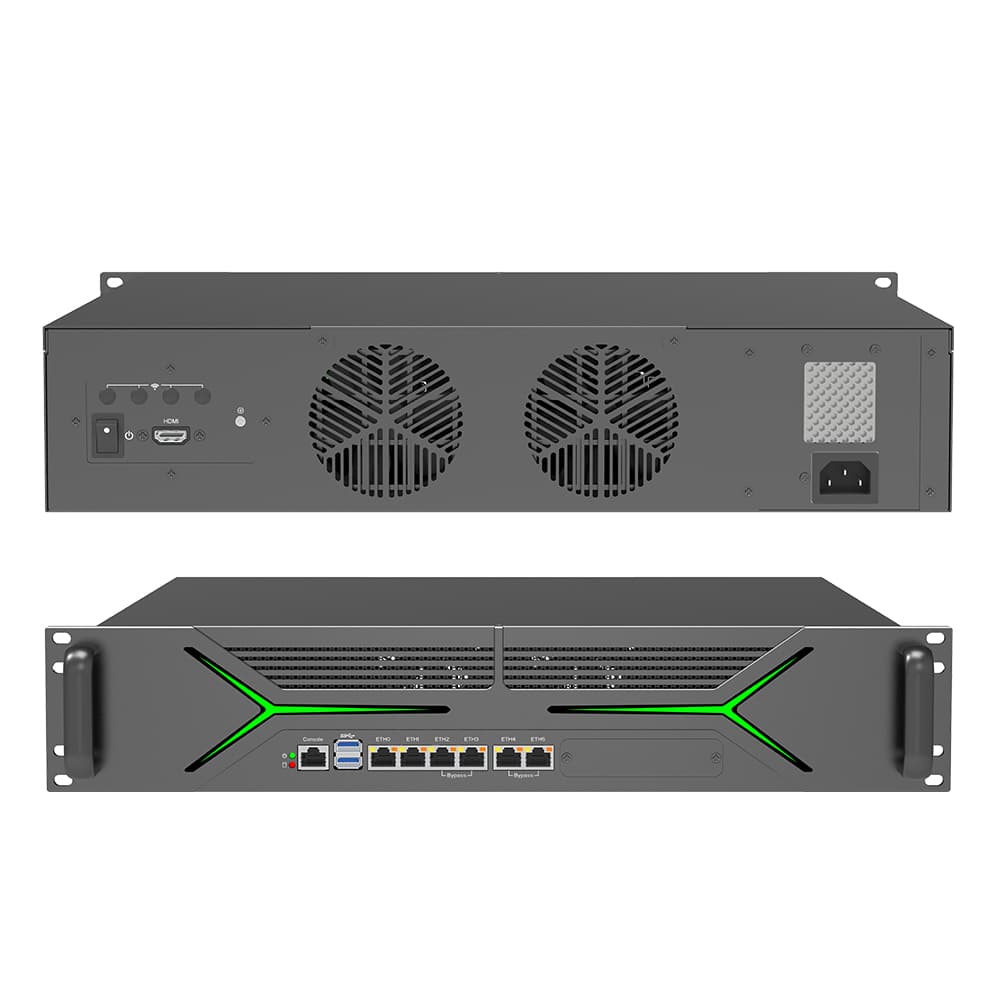

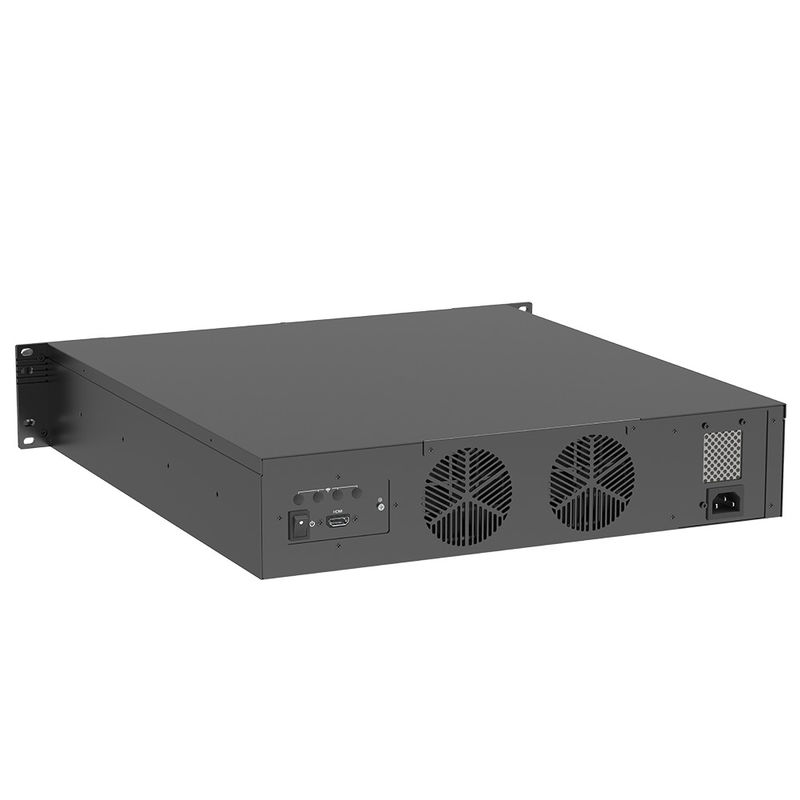

Product Overview: 2U Rack Mount Computer for Data Centers
The 2U6L-ADL is a high-density 2U Rack Mount Computer engineered to modernize data center infrastructure. Powered by the 12th Gen Intel Core architecture (supporting i3, i5, and i7-12700 processors), this server delivers the high-frequency performance required for complex network security and virtualization tasks.
What sets this 2U Rack Mount Computer apart is its sophisticated networking array: it features 6 Intel i210-AT Gigabit Ethernet ports with two sets of Bypass functionality to ensure zero-downtime connectivity even during system failures. For high-bandwidth environments, the internal PCIe x8 slot allows for the expansion of 4 Optical Ports, making it a versatile hub for firewalls, VPNs, and enterprise-level routing. With support for up to 64GB DDR4 3200MHz memory and redundant power supply options, it offers the stability and scalability essential for 24/7 mission-critical operations.
 |
Specification and Parameter of 2U Industrial Rackmount Computer
Parameter | 2U6L-ADL | Storage | ||
| Processor | Intel Core I5-12400 6 Core 12 Threads, 2.5 Ghz, Turbo Frequency 4.4 Ghz, 7.5MB | M.2 | 1 M.2 (M-Key 2280 supports SATA) | |
| Chipset | Alder Lake-N | SATA | optional 1 X 3.5 inch HDD or 2 x 2.5 inch HDD | |
| Memory | 2 DDR4 3200 U-DIMM Memory , Max. 64GB | Expansion slots | ||
| Graphics Card | Mini PCIE | 1 PCIE X8 ( 4 Optical Ports / 4 Network Ports) | ||
| Graphics Card | Intel UHD Graphics 730/770 | M.2 | 1 M.2 (M-Key 2280, supports SATA SSD) | |
| Display port | 1 x HD-MI | Size/weight | ||

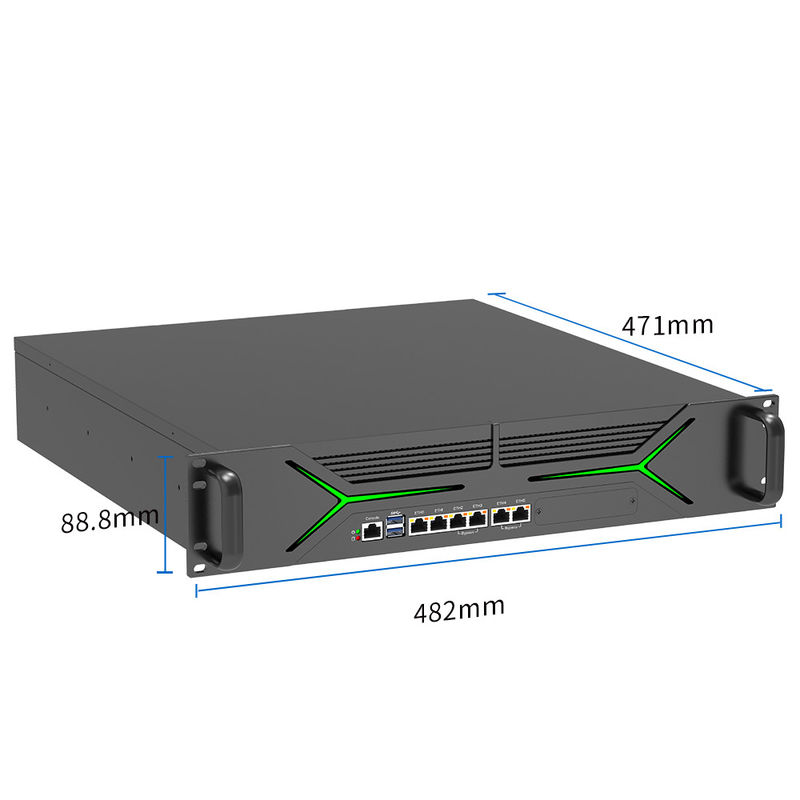

| Dimension | 482 x 471 x 88.8mm | |||
| Ethernet | weight | 7.19 kg (barebone) | ||
| Internet port | 6 Intel i210-AT Gigabit Ethernet ports ( 2 sets of Bypass) | Installation | / | |
| I/O | Environmental | |||
| USB | 2 x USB 3.0 | Operating Temperature | 0℃ to 50℃, Surface air flow | |
| COM | 1x RS232/485 COM | Operating Humidity | 5% ～ 95% Non-condensing state | |
| Audio | / | Other Function | Watchdog (level 0-255) Diskless boot, Wake on LAN, Auto power on, Timing boot | |
| Power supply | ||||
| Power Input | 90 to 265V (47Hz-63Hz) AC input (optional redundant power supply) | Application | Firewall, VPN, network server, network security, router .,etc | |
|
|
Core Selling Points & Strategic Advantages of 2U Rack Mount Computer
12th Gen Hybrid Architecture: Leverages Intel’s Alder Lake performance cores for heavy compute tasks like AI analytics and web services.
Redundant Network Safety: The 2 sets of Bypass technology act as a fail-safe, maintaining network traffic flow even if the server loses power or crashes.
Optical Connectivity Expansion: Specifically designed to support a 4-port Optical fiber card via PCIe x8, facilitating ultra-fast data transmission in modernized data centers.
Flexible Storage & Power: Accommodates a mix of M.2 SATA SSDs and dual 2.5" or single 3.5" HDDs, with an optional Redundant Power Supply (RPS) to prevent single points of failure.
Industrial-Grade Reliability: Features a built-in Watchdog Timer (0-255 levels), PXE diskless boot, and a wide 90V–265V AC input range for global deployment.
Application Scenarios & Target Audience of 2U Rack Mount Computer
Where to Use 2U Rack Mount Computer
| Who Needs 2U Rack Mount Computer
|
 |
Scientific Buying Guide & Quality Inspection Tips
When purchasing a 2U Rack Mount Computer, perform these critical checks to ensure industrial-grade quality:
Bypass Functionality Test: Simulate a power failure while the system is running to verify that the LAN Bypass correctly maintains the network link without interruption.
Thermal Convection Audit: Ensure the 2U chassis has a high-quality internal fan array. Check if the air ducts align with the Intel 12th Gen CPU to prevent thermal throttling during 4.4GHz turbo boosts.
Expansion Slot Clearance: Verify the PCIe x8 slot depth and power delivery to ensure compatibility with high-end SFP+ optical fiber cards.
Power Supply Stability: If opting for the redundant power module, test the "hot-swap" capability to ensure the system stays online when one module is removed.
Certification Verification: Confirm ISO9001, CE, and FCC markings to ensure the unit meets international EMI and safety standards for data center deployment.
The 2U6L-ADL 2U Rack Mount Computer is the definitive hardware solution for organizations transitioning to high-speed, fiber-optic-ready infrastructure. With its potent blend of Intel 12th Gen processing, redundant networking, and expandable optical ports, it provides the "future-proof" security and performance your data center demands. Modernize your network today—Contact YANLING for a custom configuration quote and technical consultation!
