Network Security Platform Industrial Rackmount Computer 6 Intel LAN 12th/13th Gen Intel Core

Network security platform industrial rackmount computer introduction Network security platform industrial rackmount computer (Model: 1U6L-ADL) is a high-performance 1U rack-mounted server designed specifically for rigorous network security applications. Built with a rugged aluminum alloy front panel and an SGCC cabinet, this system provides a stable hardware foundation for intensive data processing. It features the Intel H610 chipset, supporting powerful 12th and 13th generation Intel Core i3/i5/i7 processors with the LGA1700 socket. Equipped with 6*Intel i210-AT 1000M LAN ports and supporting two sets of Bypass functions, this industrial rackmount computer ensures maximum network uptime and high-speed throughput for firewalls, VPNs, and complex network servers.

Detailed Product Specification of Network Security Platform Industrial Rackmount Computer
Component	Technical Details
Model	1U6L-ADL Black
Chassis Material	Aluminum Alloy Front Panel, SGCC Cabinet
Processor	Intel Core i3-12100 (4C/8T) / i5-12400 (6C/12T) / i7-12700 (12C/20T)
Chipset	Intel H610
Memory	2*DDR4 3200 U-DIMM slots, Max. 64GB
Display Port	1*HDMI (Integrated Intel UHD Graphics 730/770)
Network	6*Intel i210-AT 1000M LAN ports (Supports 2 sets of Bypass)

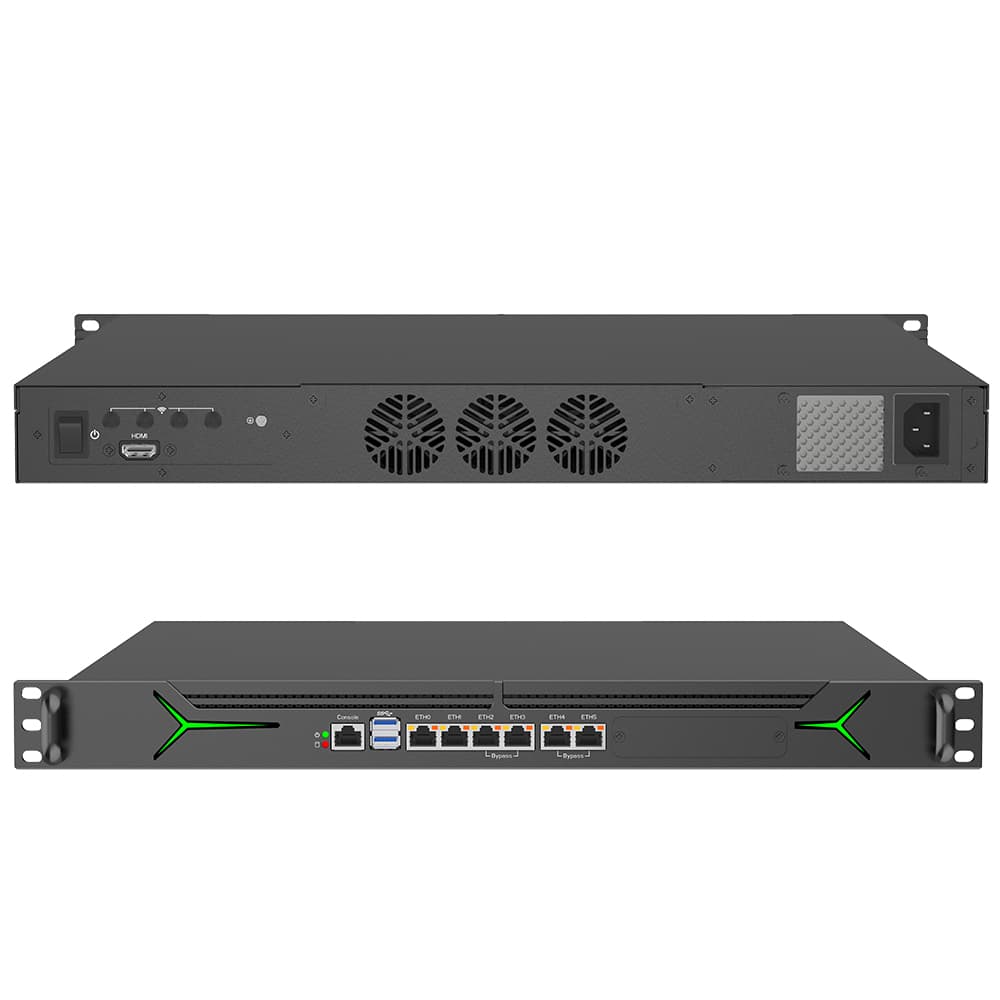

Front I/O	1COM (Console), 2USB3.0, 6*RJ45 LAN, Power/HDD Indicator
Expansion Slot	1PCIE X8 (Option for 4 Optical or 4 Network ports); 1M.2 (M-Key 2280), 1M.2 (E-Key 2230), 1M.2 (B-Key 3042)
Storage	1M.2 (SATA SSD), Optional 13.5" HDD/SSD or 2*2.5" HDD/SSD
Power Supply	90～264V AC input (Optional redundant power supply)
Security/Functions	TPM 2.0, Watchdog, Wake on LAN, Auto power on

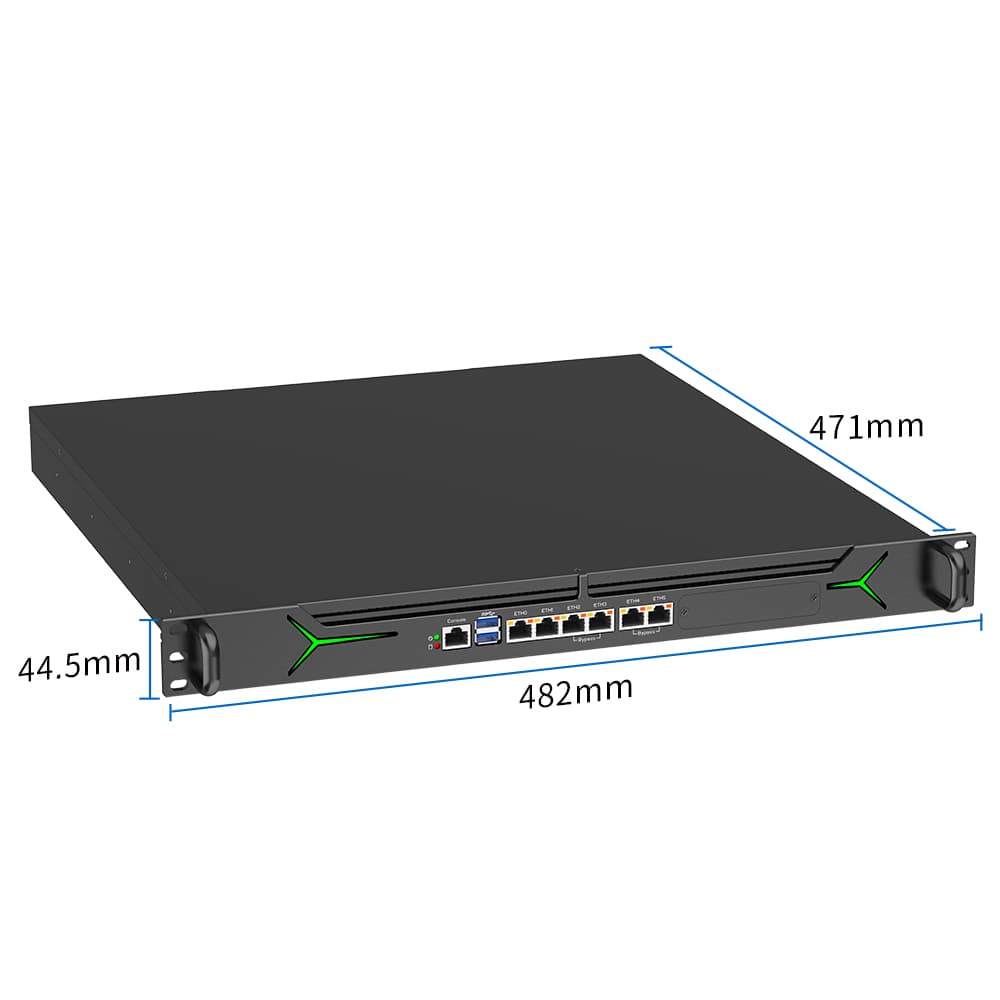

Dimensions	482 * 471 * 44.5mm; Weight: 6.11 kg (barebone)

Advantages for Network Infrastructure Advanced Network Security: The integration of TPM 2.0 and 2 sets of Bypass functionality provides hardware-level data protection and ensures network connectivity even during system power failure or software crashes. High-Density Connectivity: With 6*Intel i210-AT LAN ports, this computer manages high-traffic loads efficiently, reducing CPU overhead compared to standard network controllers. Scalable Performance: Supporting up to 64GB DDR4 and 13th Gen Intel Core processors allows the system to scale from simple routing to intensive packet inspection and enterprise-grade firewall duties. Industrial Durability: The 1U rack-mount form factor and SGCC cabinet are optimized for standard server racks, providing superior EMI shielding and heat dissipation for 24/7 reliability.

Applications of network security platform industrial rackmount computer

• Cybersecurity: High-speed Firewalls, VPN gateways, and Intrusion Detection Systems (IDS).

• Network Management: Enterprise-level routers, network servers, and monitoring platforms.

• Data Protection: Secure storage gateways and private network infrastructure.

Customization Options of network security platform industrial rackmount computer

1. Expansion Flexibility: The PCIE X8 slot can be configured with an additional 4 Optical Ports or 4 Network Ports.

2. Storage Variations: Choose between a single 3.5" HDD or dual 2.5" HDD/SSD setups depending on redundancy needs.

3. Power Redundancy: Optional redundant power supply to prevent downtime in the event of a PSU failure.

4. Extended I/O: Optional expansion for 8*GPIO, LPT, PS/2, or additional USB ports.

industrial rackmount computer Installation & Usage Guide 1. Rack Mounting: Secure the unit into a standard 19-inch rack using the integrated mounting ears. Ensure at least 1U of clearance above for optimal airflow. 2. Network Setup: Connect the management cable to the Console port for initial configuration. Use the 6 RJ45 ports for primary network traffic. 3. Power Connection: Use the AC input (90~264V). If using a redundant power supply, connect both to separate power circuits for maximum reliability.

YANLING Technical Support & Service

Technical FAQs & Emergency Handling

Q1: How do the "Bypass" ports function in a network emergency?

A: The 2 sets of Bypass ports act as a physical bridge. If the industrial rackmount computer loses power or the OS hangs, the Bypass mechanism maintains the physical connection between the ports, ensuring the network link is not broken.

Q2: Is the TPM 2.0 module built-in or optional?

A: The system supports TPM 2.0 natively, which is essential for hardware-based encryption and secure booting in modern network security environments.

Q3: What should I do if the system fails to boot after a power surge?

A: First, verify the AC power input (90~264V). If the system is unresponsive, check the Watchdog settings or utilize the Auto power on feature to restore operation. Contact YANLING support if hardware damage is suspected.

Q4: How do I maintain the 1U rack-mount chassis for 24/7 operation?

A: Regularly check the internal cooling fans and ensure the surface airflow is not obstructed. Since it is used for network security, periodically check logs for Watchdog triggers (level 0-255) to identify software instability.

Conclusion & Call to Action

The 1U6L-ADL is the ultimate network security platform industrial rackmount computer for high-demand enterprise environments. By combining 12th/13th Gen Intel power with 6*Intel LAN ports and hardware redundancy, it provides the "zero-failure" performance your network infrastructure requires.

Secure your network today. Contact YANLING for wholesale pricing and customized 1U rackmount solutions!
