As a leading industrial PC manufacturer with over 20 years of R&D expertise, YANLING delivers professional Small Industrial Computer Solutions engineered for extreme reliability. Our hardware is encased in high-grade 6063 Aluminum Alloy, utilizing a fully fanless, fin-array thermal design to eliminate mechanical failure and dust intake.
We offer a comprehensive range of configurations—from ultra-low power Intel Alder Lake N100 and J3160/J3710 series to the latest high-performance 12th Gen Core i5/i7 and 14th Gen Core Ultra architectures. Our services include ready-to-ship models and professional OEM/ODM services, where we customize I/O (up to 6x LAN, 6x COM, or GPIO), branding, and specialized power modules (DC 9-36V). YANLING solutions are the backbone of modern machine vision, industrial IoT gateways, and high-speed network firewalls, providing the perfect balance of compact size and massive industrial-grade performance.

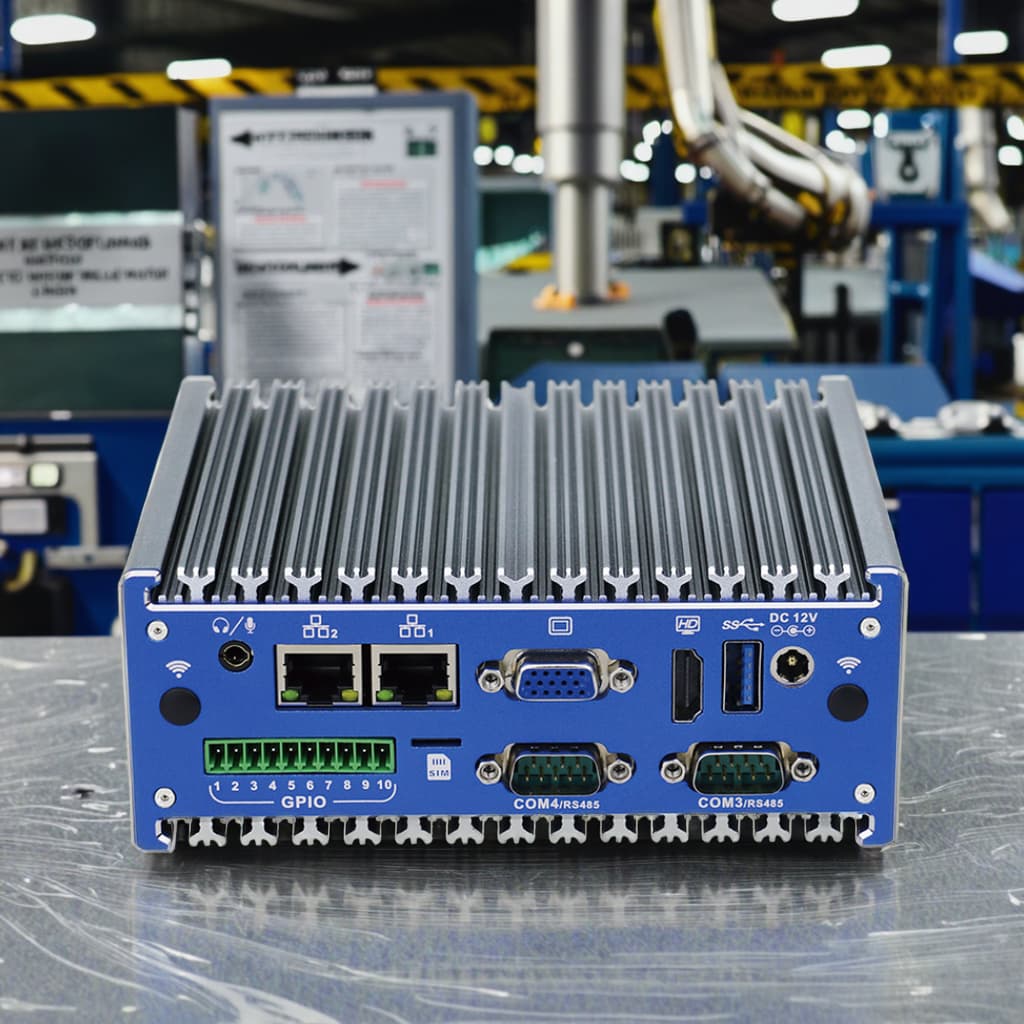

A true Small Industrial Computer is defined by its Volume-to-Performance ratio. Standard dimensions typically fall under 2 liters in volume, featuring Book-style or NUC-like form factors that prioritize height reduction and mounting flexibility (DIN-Rail/VESA).
Space Optimization: Easily integrates into crowded electrical cabinets or slim self-service terminals.
Energy Efficiency: Optimized for low TDP (6W–35W), reducing thermal load and operational electricity costs.
Shock Resistance: The smaller mass and rigid aluminum build make them more resistant to vibrations in mobile or robotic applications.
Aesthetic Integration: Provides a clean, professional look for front-end medical or commercial equipment.

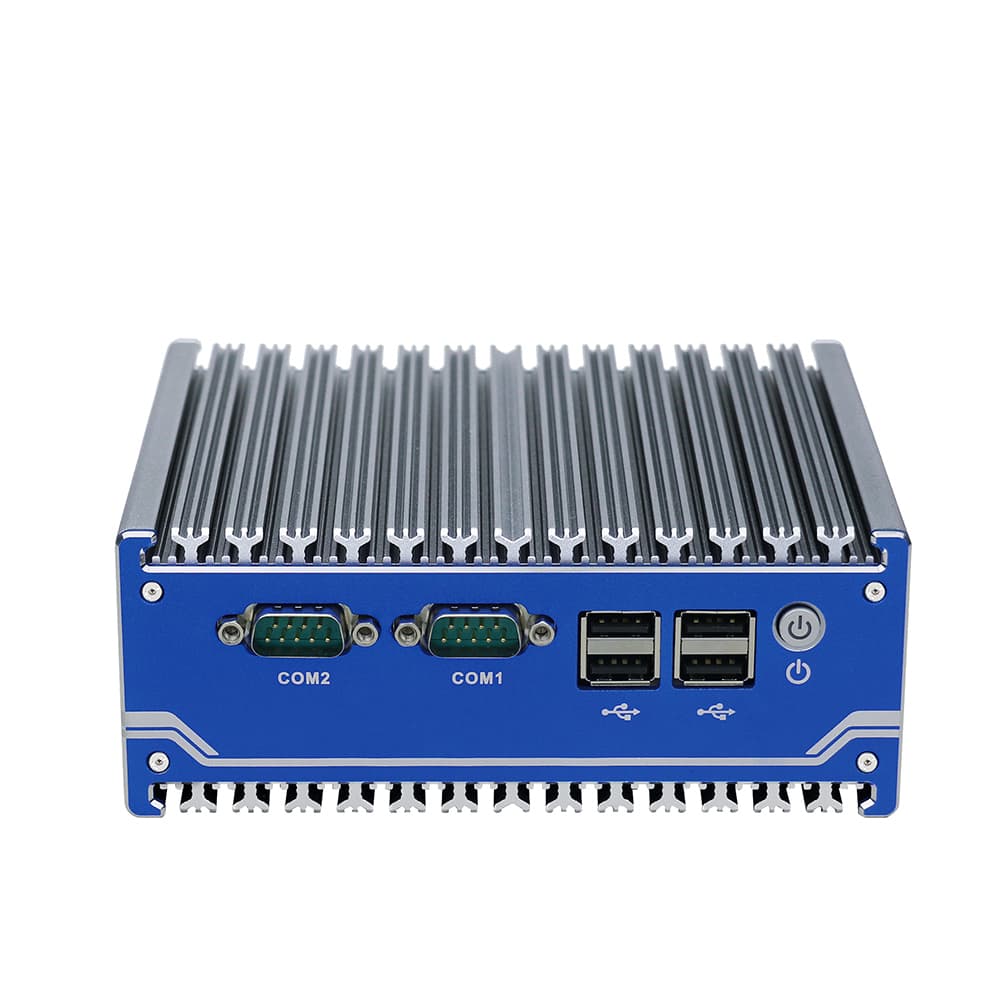

Small industrial computers are widely used in the industrities below:
Due to the 3.5-inch motherboard design, YANLING units fit behind touchscreens to manage multi-display outputs (HDMI+DP+VGA) and peripheral sensors.
Compact 4-LAN or 6-LAN models act as high-speed gateways in small office or industrial racks, providing 2.5G throughput in a fanless box.
Small form factors with wide voltage (DC 9-36V) are installed in buses and trucks for mobile DVR and fleet tracking, resisting road shocks.
The Core i7-12700T models provide 12 cores of power in a mini-chassis for real-time AOI (Automated Optical Inspection) on factory floors.

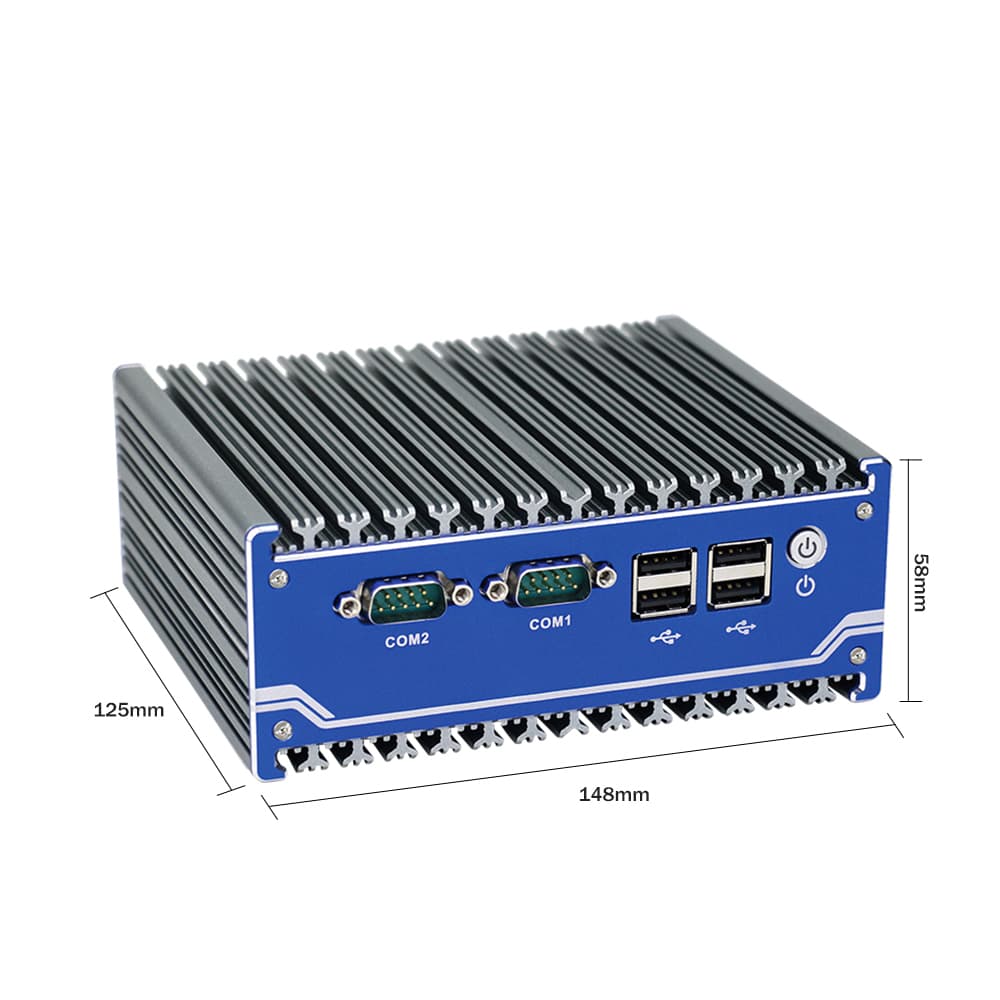

To ensure you use a small industrial computer correctly and safety, you should follow the steps below:
While fanless, ensure at least 5cm of air space around the aluminum fins for optimal natural convection.
Always use the grounded screw on the chassis to prevent ESD (Electrostatic Discharge) in industrial environments.
Avoid plugging/unplugging COM or GPIO ports while the device is powered to prevent IC damage.
Verify if your model is DC 12V only or Wide Voltage (9-36V) before connecting to high-voltage industrial rails.
The "Small" category at YANLING focuses on maximizing I/O density while maintaining a fanless, compact footprint (typically sub-2L volume).
We offer a tiered processor strategy to match diverse industrial workloads:
The Powerhouse (14th Gen): Intel® Core™ Ultra 5 125U / Ultra 7 155U (Integrated AI Boost/NPU for edge intelligence).
The Workhorse (12th Gen): Intel® Core™ i7-12700T (12 Cores), i5-1235U, and i3-1215U.
The Efficiency Expert: Intel® Alder Lake-N N100, N97, and N150 (TDP as low as 6W).
Legacy/Entry Level: Intel® Celeron® J3710, J3160, and J1900 for cost-effective automation.
Next-Gen: Support for DDR5 4800MHz (up to 64GB) in our Ultra and 12th Gen series, providing massive bandwidth for machine vision.
Standard: Dual-channel DDR4 3200MHz or DDR3L for low-power J-series models.
Multi-Port Setup: Configurations ranging from 2 to 6 Ethernet ports.
High-Speed Controllers: Primarily utilizing Intel i225-V or i226-V 2.5G GbE chips for ultra-reliable, high-bandwidth communication.
Application: Optimized for Pfsense, Opnsense, and industrial fieldbus protocols.
Main Storage: M.2 2280 NVMe PCIe Gen4 x4 for lightning-fast OS booting and data logging.
Secondary/Legacy: Support for mSATA and 2.5-inch SATA SSDs for high-capacity storage.
Wireless Expansion: Mini-PCIe or M.2 slots supporting WiFi 6, Bluetooth 5.0, 4G LTE, and 5G (with integrated SIM slots).
Serial Communication: Up to 6x COM ports (Supporting RS232, RS485, and RS422 protocols).
Display Output: Triple display support via HDMI, DisplayPort (DP), and VGA (supporting 4K @ 60Hz).
USB Density: Up to 10x USB ports (mix of USB 3.2 Gen 2 and USB 2.0).
Customization: GPIO (4-in/4-out) for direct sensor and relay control.
Wide Voltage: Options for DC 9V–36V wide voltage input for vehicle and unstable power environments.
Fanless Cooling: 100% aluminum alloy chassis with high-surface-area fins for passive heat dissipation.
Security: TPM 2.0 hardware encryption and Hardware Watchdog Timer (WDT).
Choose yanling as your industrial computer supplier you can enjoy the follow advantages:
Original Factory Customization: Direct access to our engineering team for BIOS modifications and hardware port re-design.
Robust R&D & Capacity: State-of-the-art SMT lines and assembly workshops ensuring high-volume output without compromising precision.
Fast Lead Times: Strategic component stock allows for rapid delivery of standard and modified samples.
Global Service: Comprehensive technical support and a verified track record of stability in 50+ countries.
