Intelligent Embedded Computer With Intel 12th Gen Intel Core I3 35 W

Product Overview: Intelligent Embedded Computer (Intel 12th Gen Core i3)

The IEXP-732 is a high-performance Intelligent Embedded Computer featuring the 12th Gen Intel Core i3-12300T processor with a 35W base power. Built on the Intel H610 chipset, this rugged system supports up to 64GB of DDR4 3200MHz memory, making it a powerhouse for multitasking and data-heavy workloads. It features dual Gigabit LAN, 4K HDMI/VGA dual-display output, and extensive I/O including 4x COM ports (RS232/485). Engineered for reliability, the fanless-ready design operates flawlessly between -20°C to 60°C, providing a stable computing backbone for Edge AI and high-end industrial control.

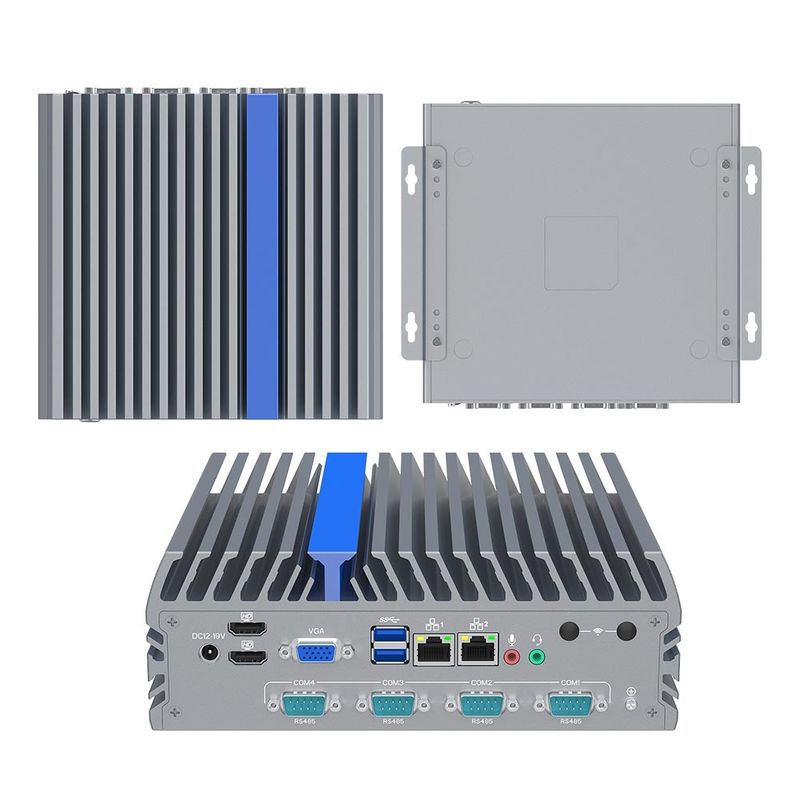

Specifications of This Intelligent Embedded Computer

Core Selling Points (Unique Value Propositions) of Intelligent Embedded Computer

• High-Performance 35W TDP: Powered by the i3-12300T (4 Cores/8 Threads, Max 4.2GHz), balancing high computational speed with optimized thermal management.

• Massive Memory Capacity: Supports up to 64GB DDR4, significantly higher than standard embedded PCs, ensuring smooth operation for AI and virtualization.

• Rugged Durability: Industrial-grade components housed in a 3.27kg chassis, resistant to extreme temperatures and high humidity (5%–95%).

• Flexible Expansion: Integrated M.2 NVMe slot for high-speed storage and a Mini-PCIe slot with a Nano-SIM for 4G/5G/WiFi connectivity.

• Wide Voltage Input: Supports DC 12V–19V, adapting to various industrial power environments and vehicle power systems.

Application & Target Audience Analysis of This I3 Embedded Computer Edge Intelligence & AI Developers: Ideal for those needing localized data processing and real-time machine learning at the edge. Medical Equipment Manufacturers: Perfect for medical imaging, diagnostic workstations, and hospital information terminals requiring CE/FCC certification. Smart Logistics & Warehousing: Recommended for warehouse management systems (WMS) and automated sorting controllers. Transportation Engineers: A top choice for traffic monitoring, fleet management, and in-vehicle control systems due to its vibration resistance and wide temp range.

Installation & Operational Guide to Intelligent Embedded Computer With Intel 12th Gen Intel Core I3

The IEXP-732 comes standard with Wall-mounted brackets and also supports Desktop placement. For installation:

1. Secure the brackets to the side of the chassis using the provided screws.

2. Ensure sufficient surface airflow around the heat-dissipating fins.

3. Connect the DC power supply (ensure the input is within the 12V–19V range).

4. Configure the BIOS for specific needs like Wake on LAN (WOL) or Watchdog (0–255 levels) to ensure unattended 24/7 operation.

Safety & Precautions of This Intelligent Embedded Computer Power Stability: Use a stabilized DC power source to prevent voltage spikes. Thermal Management: Do not cover the aluminum fins; surface airflow is critical for the fanless cooling efficiency. Connectivity: Always power off before inserting or removing the Nano-SIM or Mini-PCIe modules to avoid static damage. Environment: While moisture-resistant, avoid direct water exposure to the I/O ports.

Quality Testing Tips & Core Inspection Points for This Intelligent Embedded Computer

When evaluating an Intelligent Embedded Computer, focus on:

1. Thermal Stress Test: Run the CPU at 100% load for 24 hours at 60°C to verify frequency stability and heat dissipation.

2. Vibration Resistance: Check the internal cable-free design or secure locking connectors, which are vital for mobile or industrial use.

3. I/O Reliability: Test the RS232/485 communication stability under electromagnetic interference.

4. Security Validation: Verify the TPM 2.0 functionality for data encryption requirements.

The IEXP-732 Intelligent Embedded Computer is a robust, future-proof solution that brings the power of Intel 12th Gen 35W processors to the harshest industrial settings. Whether you are scaling an AI-driven warehouse or deploying medical computing solutions, the IEXP-732 offers the memory, connectivity, and durability required to succeed. Contact YANLING today for a custom quote and technical consultation!
