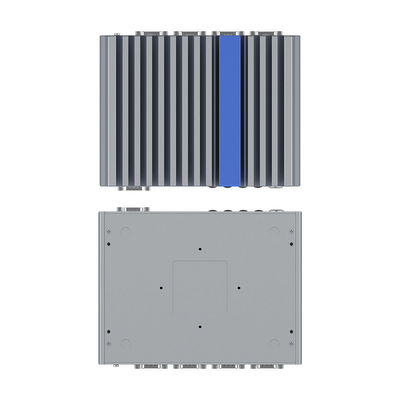

Fanless Embedded Computer 6W TDP With 12th Gen Intel Alder Lake-N N100 CPU 16GB DDR5
Product Details:
| Place of Origin: | Industrial Computer Manufactur |
| Brand Name: | YANLING |
| Certification: | CCC, CE, ROHS, ISO9001 |
| Model Number: | IEXP-322 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Unit |
|---|---|
| Price: | $ Customized |
| Packaging Details: | Each pc for one neutral box |
| Delivery Time: | 3~5 Working Days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 10000 Pcs/Month |
Detailed Product Description

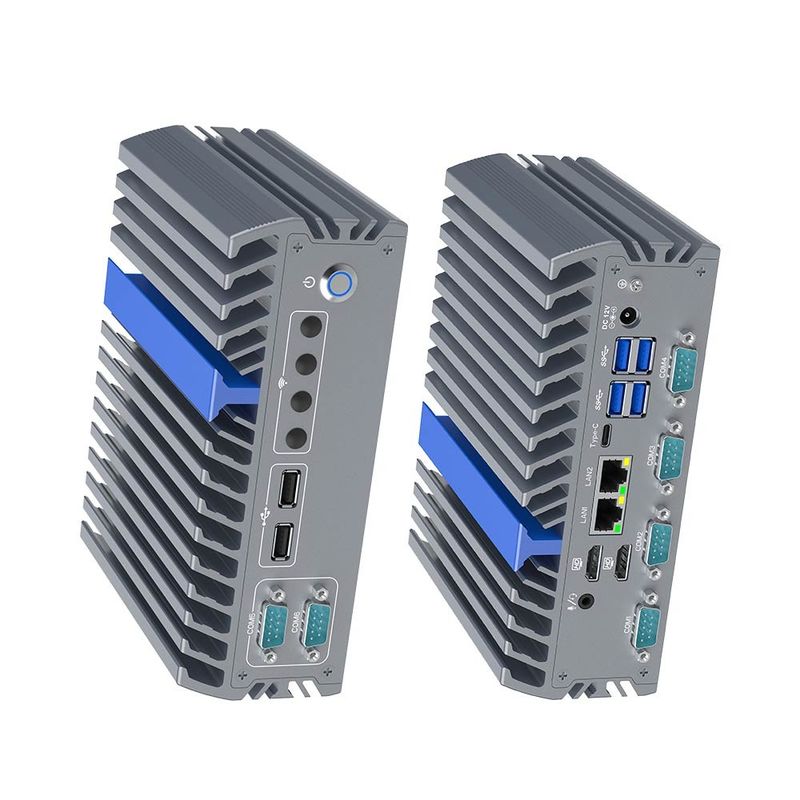

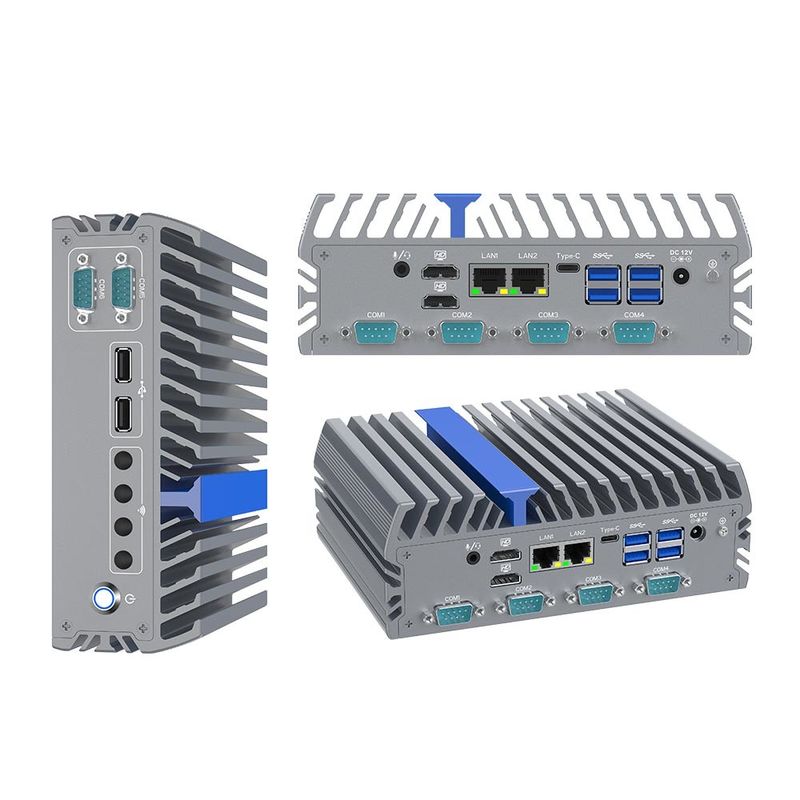

Product Overview: High-Performance Fanless Embedded ComputerThe IEXP-322 is a high-performance Fanless Embedded Computer powered by the 12th Gen Intel Alder Lake-N N100 processor (up to 3.4GHz). Engineered for 24/7 reliability in demanding environments, this industrial PC features a 6W ultra-low TDP design, ensuring silent operation and energy efficiency without compromising power. Supporting up to 16GB DDR5 4800MHz memory and dual 2.5GbE Intel I226-V Ethernet, it provides lightning-fast data processing and networking. With its ruggedized chassis, multi-display support (4K @ 60Hz), and extensive I/O (including 6x COM ports), it is the definitive solution for edge computing and industrial automation. |  |
Technical Parameters of Fanless Embedded Computer With 12th Gen Intel Alder Lake-N N100 CPU
Parameter | Storage | |||
| Processor | Intel N100(quad core quad thread,Max Turbo 3.4 GHz) | M.2 | 1x M.2 2280 M-key slot(support SATA ) | |
| Chipset | Alder Lake-N | SATA | 1x 2.5 inch SSD slot | |
| Memory | 1x DDR5 4800 slot, Max 16 GB | Expansion slots | ||
| Graphics Card | Mini PCIE | 1 x Full length Mini PCIe slot(PCIE&USB2.0 ,4G/WIFI/BT optional), Nano-SIM slot | ||
| Graphics Card | Intel(R) UHD Graphics | M.2 | 1x M.2 2230 E-key slot( support WiFi / BT) | |
| Display port | 2 x HD-MI , 1x Type-C | Size/weight | ||
| Dimension | 7.3x 5.5 x 2.6 inch | |||
| Ethernet | weight | |||
| Internet port | 2 x Intel I226-V 2.5G Ethernet | Installation | VESA , Wall-mounted, Din-rail (optional) | |
| I/O | Environmental | |||
| USB | 4x USB 3.0, 2x USB 2.0 | Operating Temperature | -20℃ to 60℃, Surface air flow | |
| COM | 6 x RS232 COM (standard) | Operating Humidity | 5% ～ 95% Non-condensing state | |
| Audio | 1 x Line-out/Mic-in, two in one audio | Other Function | Power on when there is electricity, network wake up timed startup, PXE startup ,TPM2.0 | |
| Power supply | ||||
| Power Input | 1 x DC(5.5 x 2.5mm), support 12V input | Application | Industrial automation, medical, transportation, logistics, warehousing, e-education.,etc | |
Key Features & Functions of Fanless Embedded Computer
This high-performance Fanless Embedded Computer is our the most popular product, as follow features and functions:
Next-Gen Processing: Powered by the Intel N100 Quad-Core CPU for efficient multitasking at just 6W TDP.
High-Speed Connectivity: Dual 2.5G Intel Ethernet ports for low-latency networking and high-speed data transfer.
Versatile I/O Interface: Equipped with 6x RS232 COM ports, 4x USB 3.0, and 2x USB 2.0 for seamless peripheral integration.
Triple Display Support: Dual HDMI and a full-function Type-C port support 4K @ 60Hz visual output.
Rugged Fanless Design: Aluminum alloy chassis supports an operating temperature range of -20°C to 60°C, resisting dust and noise.
Flexible Expansion: Features M.2 (SATA/WiFi/BT) and Mini-PCIe slots with a Nano-SIM for 4G/5G/WiFi modularity.
Industrial Applications of Fanless Embedded Computer
This Fanless Embedded Computer widely used for the follow industries:
Industrial Automation
| Smart Logistics & Warehousing
|
Smart Transportation
| Medical & Education
|
Who Needs & Where to Use Fanless Embedded Computer
Target Users
System integrators, automation engineers, IT managers in logistics, and industrial hardware distributors.
Deployment Scenarios:
Where to use
Factory Floors: Mounting on DIN-rails or walls near heavy machinery.
Outdoor Enclosures: Integrated into kiosks or cabinets thanks to its wide temperature tolerance.
Vehicle Systems: Used in forklifts and fleets requiring DC 12V power and anti-vibration durability.
Advantages: The IEXP-322 stands out by combining DDR5 high-speed memory with a fanless 6W architecture. Its 6x COM ports offer superior legacy equipment support compared to standard mini PCs, while the 2.5GbE dual-NIC setup ensures it is future-proof for high-bandwidth industrial IoT (IIoT) applications.
CTA: Ready to upgrade your industrial infrastructure with the 12th Gen Intel N100? Contact YANLING today for a negotiable quote and customized I/O solutions!
