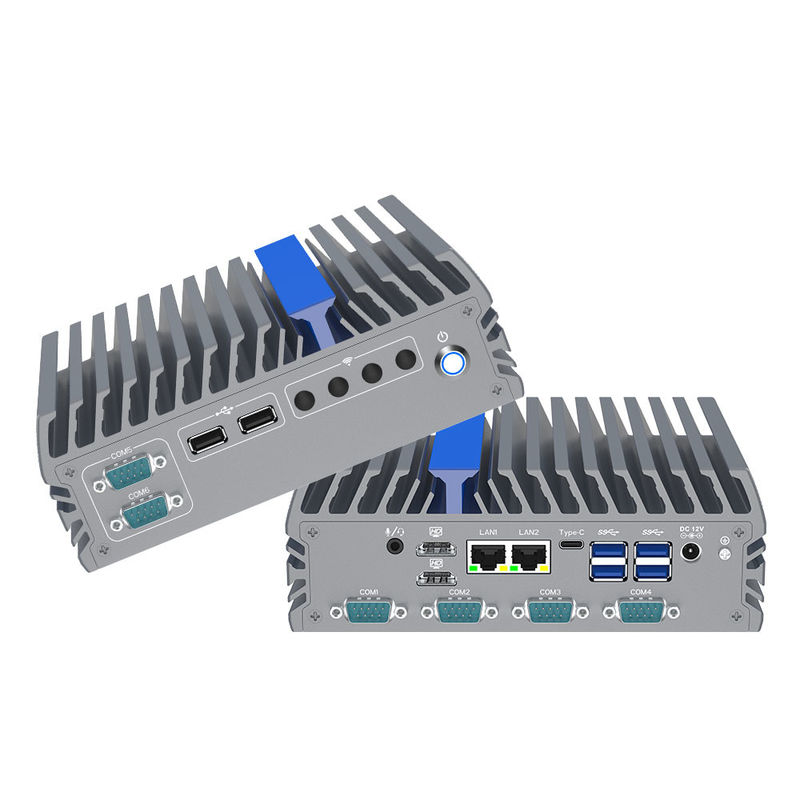

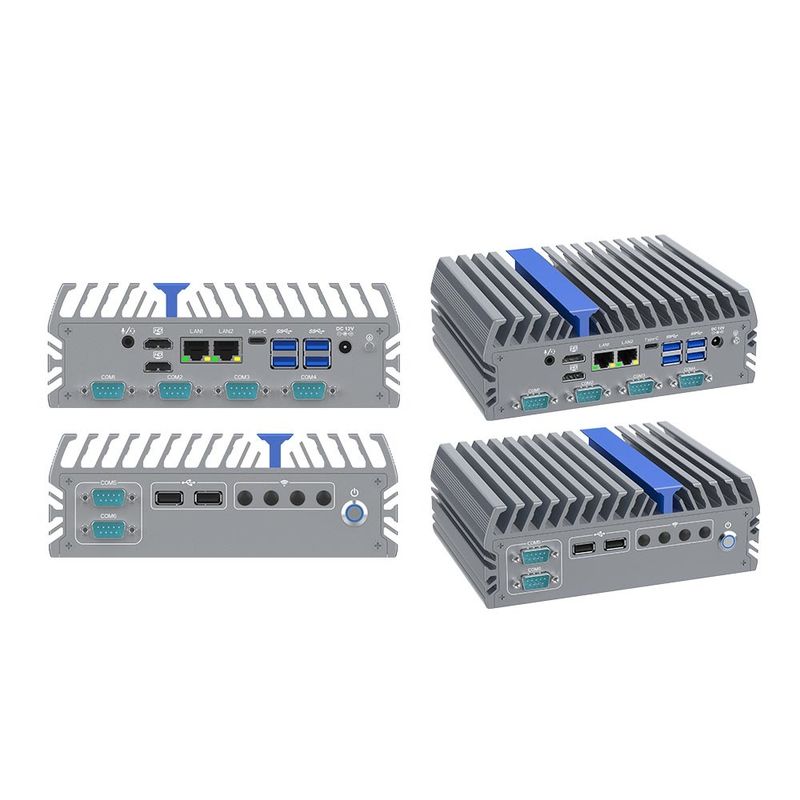

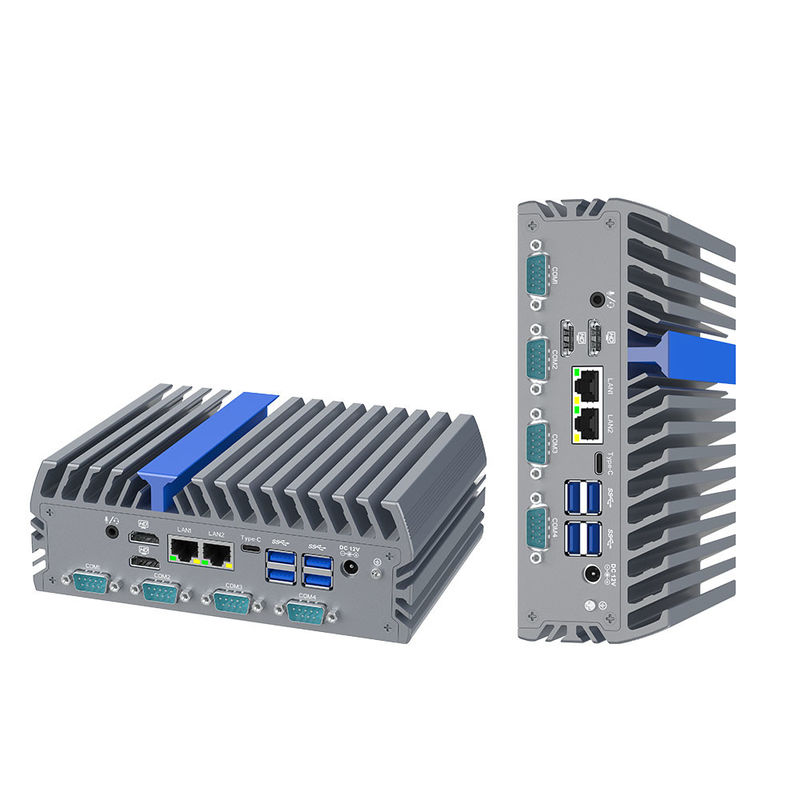

Fanless Industrial Computer 12th Gen Intel Alder Lake-N N100 Processor With Triple Display Port
Product Details:
| Place of Origin: | Industrial Computer Manufactur |
| Brand Name: | YANLING |
| Certification: | CCC, CE, ROHS, ISO9001 |
| Model Number: | IEXP-322 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 Unit |
|---|---|
| Price: | $ Customized |
| Packaging Details: | Each pc for one neutral box |
| Delivery Time: | 3~5 Working Days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 10000 Pcs/Month |
Detailed Product Description
Product Overview: Fanless Industrial Computer 12th Gen Intel N100
This Fanless Industrial Computer made by YANLING, Model IEXP-322, engineered for 24/7 reliability in demanding environments. Powered by the 12th Gen Intel Alder Lake-N N100 processor (Quad-Core, up to 3.4GHz), it delivers a 30% performance boost over previous generations while maintaining ultra-low power consumption. Its standout feature is the Triple Display capability, utilizing dual HDMI and a versatile Type-C port to support resolutions up to 3840X2160 @ 60Hz.
Designed for versatility, it supports up to 16GB DDR5 4800MHz RAM and dual storage via M.2 SATA and a 2.5-inch SSD slot. Connectivity is a core strength, featuring dual Intel 2.5G Ethernet ports for high-speed networking and 6 x RS232 COM ports for legacy industrial equipment integration. With its wide operating temperature range (-20°C to 60°C) and compact, dust-proof aluminum chassis, the IEXP-322 is the ideal engine for edge computing and automated control systems.
Detailed Informations of Fanless Industrial Computer 12th Gen Intel N100
Category | Component | Technical Specifications | Features / Notes |
Performance | Processor | Intel Alder Lake-N N100 | Quad-core, Turbo 3.4GHz, 6W TDP |
Memory | 1x DDR5 4800MHz SODIMM | Max capacity up to 16GB | |
Graphics | Intel® UHD Graphics | Supports 4K @60Hz resolution | |
Connectivity | Video Output | 2x HDMI, 1x Type-C | Triple Display simultaneous output |
Network | 2x Intel I226-V 2.5G LAN | High-speed dual Ethernet ports | |
Serial / COM | 6x RS232 COM | Standard industrial interface | |
USB Ports | 4x USB 3.0, 2x USB 2.0 | Total 6 ports for peripherals | |
Storage | M.2 Slot | 1x M.2 2280 M-key | Supports SATA protocol |
SATA Bay | 1x 2.5-inch SSD/HDD | Internal expansion for large data | |
Expansion | Mini PCIe | 1x Full-length Mini PCIe | Supports 4G / WIFI / BT modules |
SIM Slot | 1x Nano-SIM slot | Integrated for cellular connectivity | |
Wireless | 1x M.2 2230 E-key | Dedicated slot for WiFi/BT cards | |
Reliability | Power Input | DC 12V (5.5 x 2.5mm) | Supports "Power on after Power Loss" |
Temperature | -20°C to 60°C | Fanless passive cooling design | |
Mounting | VESA, Wall, Din-rail | Flexible installation options | |
Physical | Dimensions | 7.3 x 5.5 x 2.6 inches | Compact aluminum alloy chassis |
Functions | TPM 2.0, PXE, WoL | Enterprise-level security & remote boot |
Key Advantages & Selling Points of Intel Alder Lake-N N100 Fanless Industrial Computer
Next-Gen Processing: The 12th Gen Intel N100 offers superior multi-tasking and efficient thermal management without the need for noisy, failure-prone fans.
Triple 4K Display Output: Simultaneous output via 2x HDMI and 1x Type-C streamlines complex monitoring setups and digital signage arrays.
Industrial-Grade I/O: Equipped with 6x COM ports and 2.5G dual LAN, ensuring stable data transmission and compatibility with PLCs, sensors, and high-speed cameras.
Flexible Expansion: Includes Mini PCIe for 4G/WiFi/BT modules and an M.2 E-key slot, making it future-proof for IoT and remote deployment.
Durability in Harsh Conditions: The fanless, solid-state design resists vibration, dust, and electromagnetic interference, significantly reducing maintenance costs.
Application Analysis & Investment Recommendation of The 12th Gen Intel N100 Fanless Industrial Computer
 | The IEXP-322 is a strategic investment for businesses looking to modernize their infrastructure with energy-efficient, reliable hardware.
|
Installation and Operation Guide to The 12th Gen Intel N100 Fanless Industrial Computer
1. Mounting
| 2. Hardware Setup
|
3. Bios Configuration
| 4. OS Deployment
|
The IEXP-322 redefines what a compact industrial PC can achieve, balancing 12th Gen Intel power with the silence and reliability of a fanless design. Whether you are scaling a smart factory or deploying edge devices across a city, this unit provides the stability your data requires. Contact our Sales Team today for a custom quote or bulk pricing.
