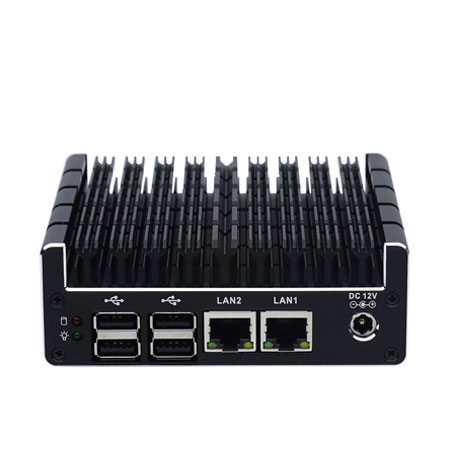

Micro Firewall Appliance NUC Industrial Computer Fanless J3060 Mini PC with Dual Intel LAN & Dual HDMI Display

The Micro Firewall Appliance NUC Industrial Computer (Model: NUC-C3) is a high-performance, ultra-compact solution specifically designed for network security and stable industrial control. At its heart lies the Intel Celeron J3060 dual-core processor, optimized for energy efficiency while providing a burst frequency of up to 2.48GHz. Encased in a premium all-aluminum, fanless chassis, this machine eliminates the noise and mechanical failure risks associated with traditional cooling fans, making it the definitive choice for silent, 24/7 continuous operation in demanding environments.

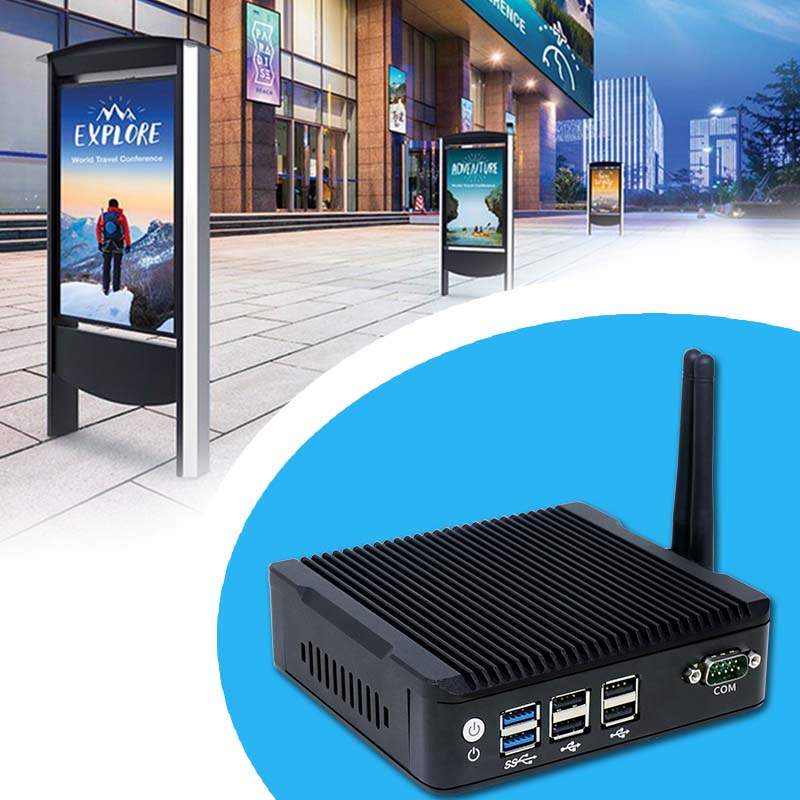

Fanless 4K Triple Display NUC Industrial Computer Intel Quad Core Mini PC with Dual LAN & Dual Storage Support

The Fanless 4K Triple Display NUC Industrial Computer (Model: N5) is a robust and compact embedded solution specifically engineered for high-availability environments. This small-form-factor powerhouse utilizes an all-aluminum, fanless cooling structure that ensures silent operation and zero maintenance. By eliminating mechanical fans, it removes the primary point of failure common in traditional PCs, preventing downtime caused by dust accumulation or mechanical wear. Powered by high-efficiency Intel Quad Core processors like the Pentium J3710, it delivers the consistent performance required for 24/7 industrial operations.

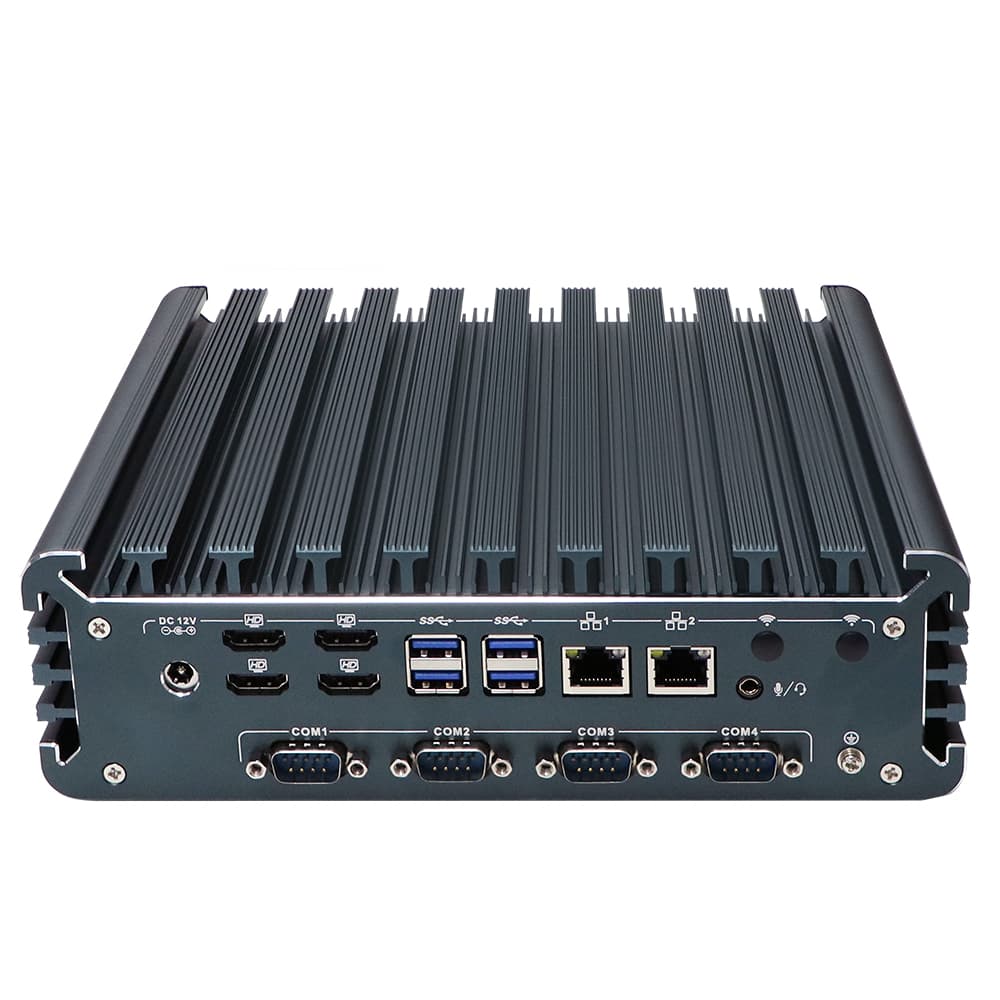

Fanless Quad HDMI Display i7 Industrial PC Alder Lake i7-1355U Rugged Desktop Computer with 4*USB3.0

The Fanless Quad HDMI Display i7 Industrial PC (Model: IBOX-3226) is a powerhouse of performance and reliability, engineered for the most demanding industrial environments. Driven by the 12th/13th Gen Intel® Core™ i7-1355U processor (up to 5.0 GHz), this system delivers enterprise-grade computing with a 10-core, 12-thread architecture. Its standout feature is the native support for 4 independent HDMI displays, housed in a rugged, fanless aluminum alloy chassis designed for silent, 24/7 continuous operation.

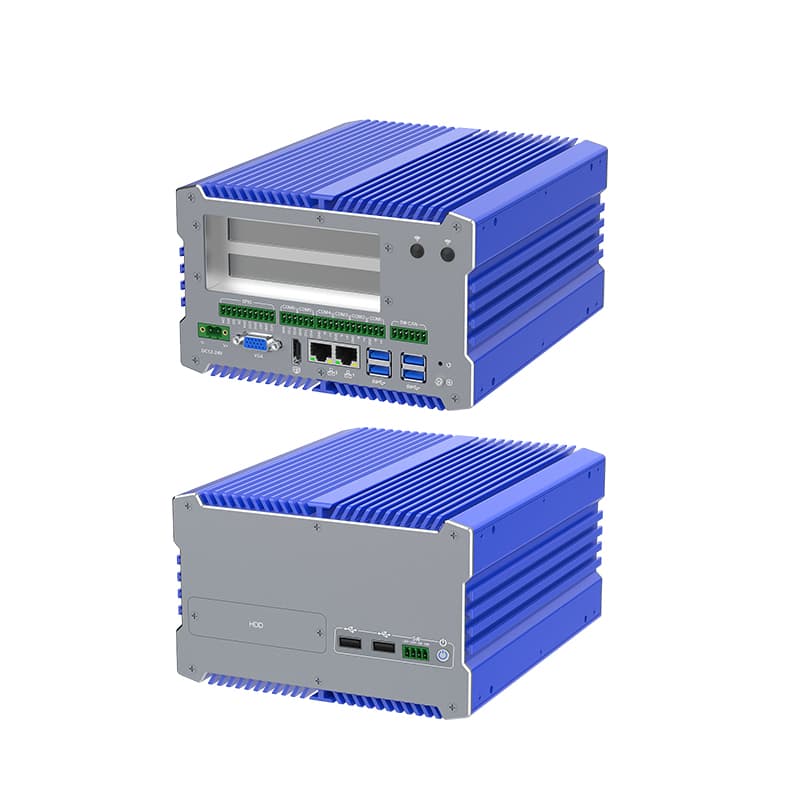

Fanless i7 Industrial Computer with 12th Gen Core, Dual Storage, and Wide Voltage Support

The IBOX-711 is a Fanless i7 Industrial Computer, powerhouse engineered for the most demanding industrial environments. Combining the raw processing power of Intel's 12th Generation Core i7 with a robust, fanless architecture, this system is designed to provide 24/7 reliability without compromise. Encased in an all-aluminum alloy structure, it excels in heat dissipation and physical durability, making it an ideal choice for high-stakes applications in automation and machine vision.

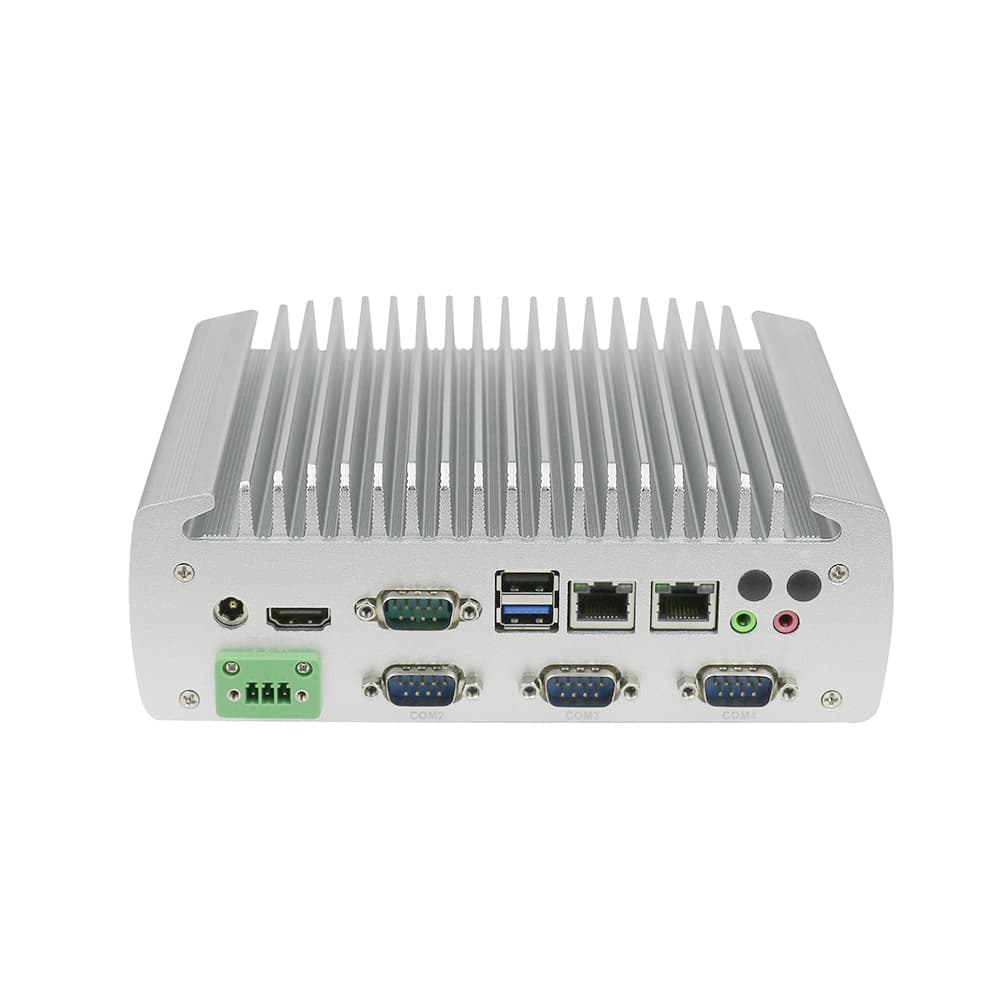

6 COM Ports Fanless Industrial Mini PC Intel J1900 Quad Core Embedded PC Dual LAN Rugged Gateway

Product Details:

Place of Origin:	Mini PC manufacturer China
Brand Name:	YANLING
Certification:	CCC,CE,ROHS,ISO9001
Model Number:	IBOX-101 Plus

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	$
Packaging Details:	Each pc for one neutral box
Delivery Time:	3-5 Days
Payment Terms:	T/T, Paypal
Supply Ability:	10000 Pcs/Month

Contact Now 8613243738816

Detailed Product Description

6 COM Ports Fanless Industrial Mini PC Overview

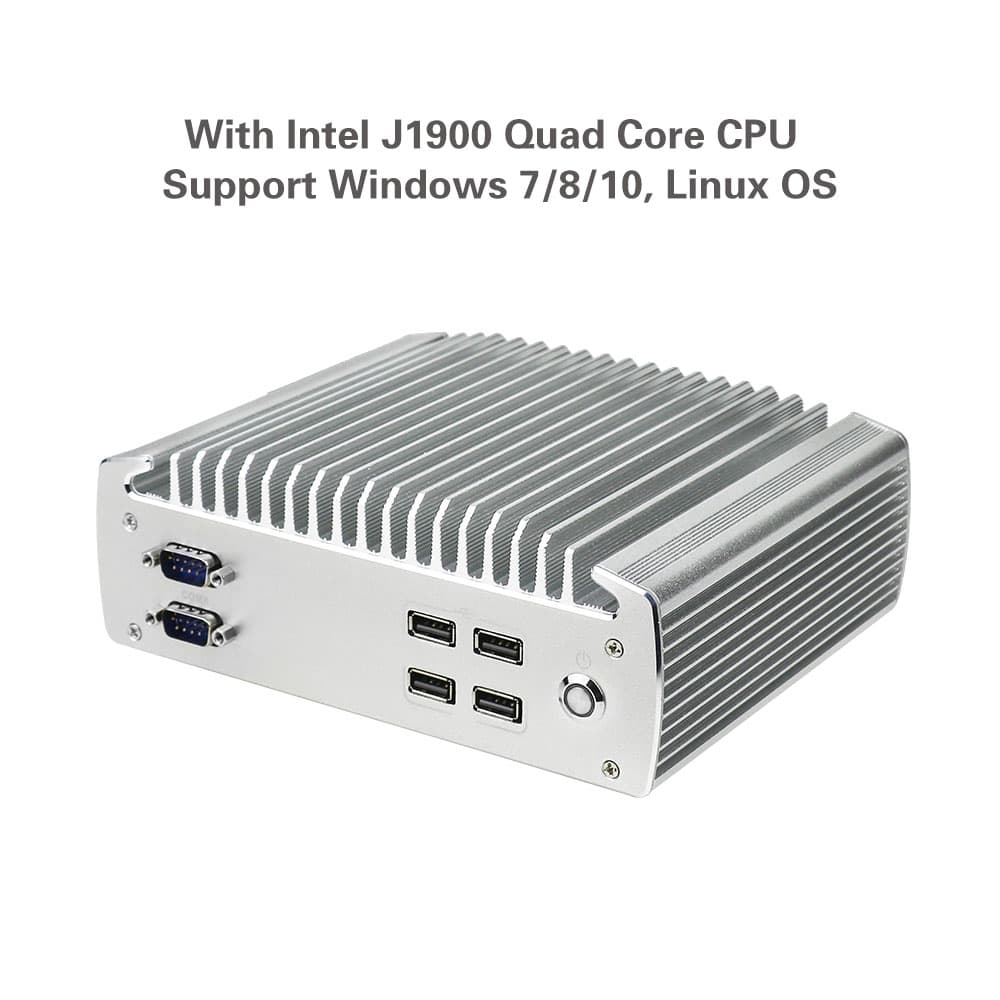

The 6 COM Ports Fanless Industrial Mini PC (Model: IBOX-101 Plus) is a high-reliability embedded system engineered for seamless machine-to-machine (M2M) communication. Built around the Intel Celeron J1900 Quad Core processor, this rugged unit provides the stability and legacy support required for complex industrial automation and data acquisition tasks.

Ket Technical Highlights of This 6 COM Ports Fanless Industrial Mini PC

Processing Power

Features an onboard Intel Celeron J1900 (Quad core, 1.99GHz) with a low 10W TDP for energy-efficient 24/7 operation.

Connectivity Hub

Equipped with 6x COM ports (COM1 and COM2 support RS232/485 optional), 2x Intel i211-AT Gigabit LAN, and a mix of USB 3.0/2.0 ports.

Display & Storage

Supports dual displays via HDMI and built-in LVDS, with dual storage options through 1x MSATA slot and 1x 2.5" HDD.

Wireless Expansion:

Includes a Mini PCIE slot with an embedded SIM slot, supporting WiFi, 3G, or 4G LTE modules.

2 2.jpg

Specification of 6 COM Ports Fanless Industrial Mini PC Intel J1900 Quad Core Embedded PC
Model	IBOX-101 Plus
Color	Silver（Color can be customized）
Material	High-quality all aluminum，surface anodic oxidation
Processor	Onboard Intel Celeron J1900（Quad core quad threading，1.99GHz，TDP: 10W）
RAM	Support 1*DDR3L 1333/1600MHz SODIMM RAM Slot，Max turbo 8GB
BIOS	AMI UEFI BIOS
Display Chip	Integrated Intel HD Graphics
Display Port	1HDMI，1Built-in LVDS （Support synchronous and asynchronous dual display）

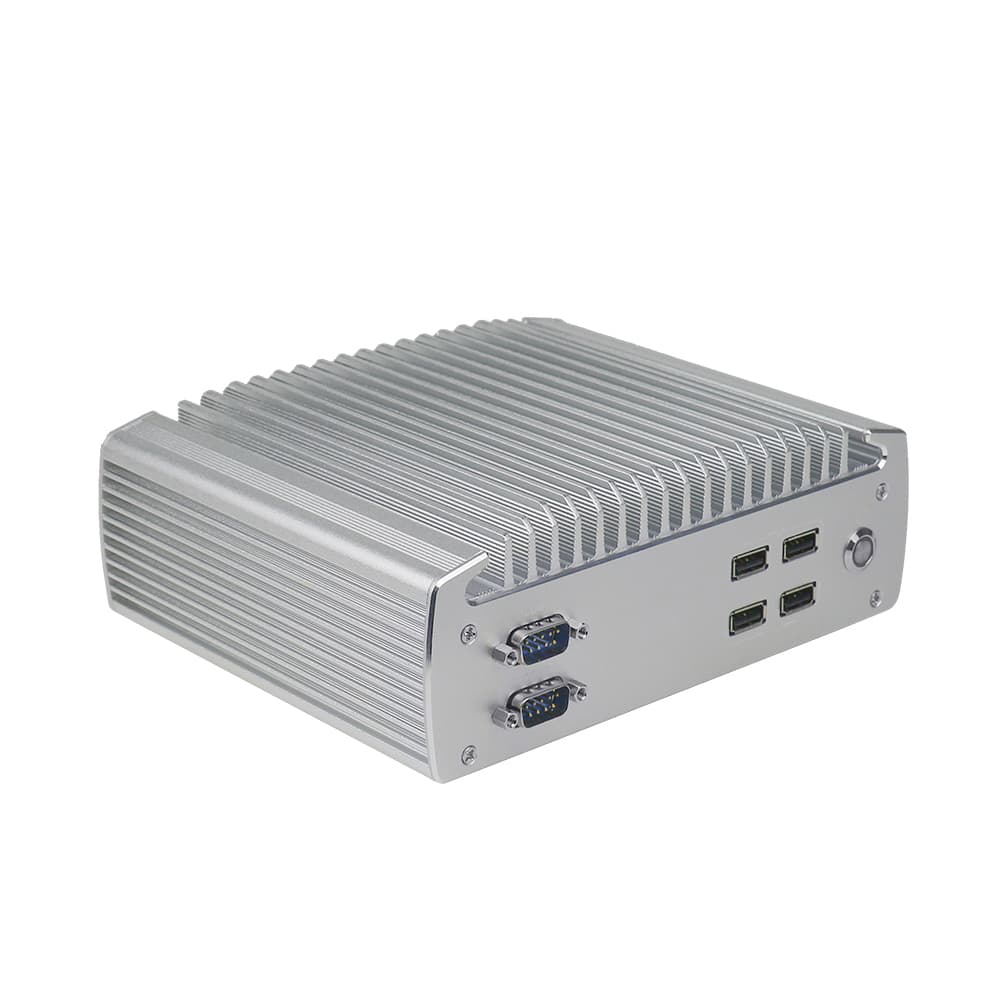

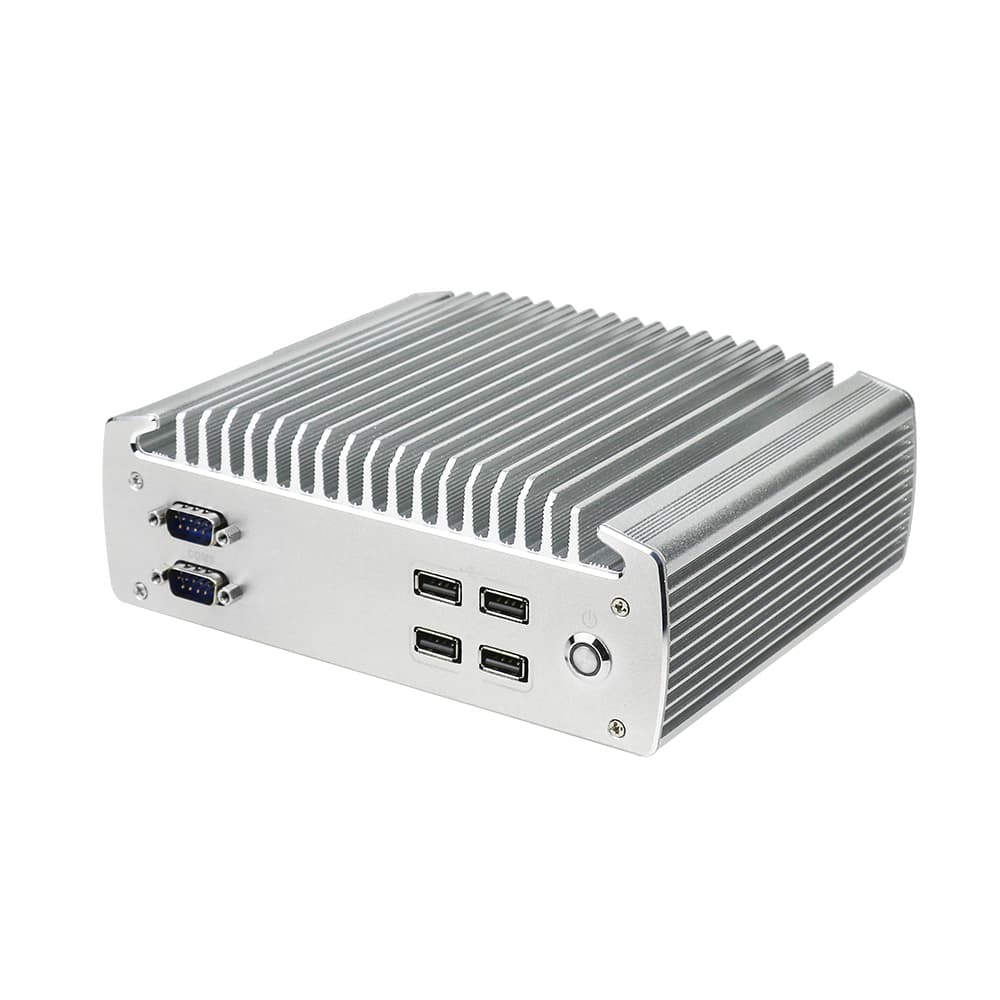

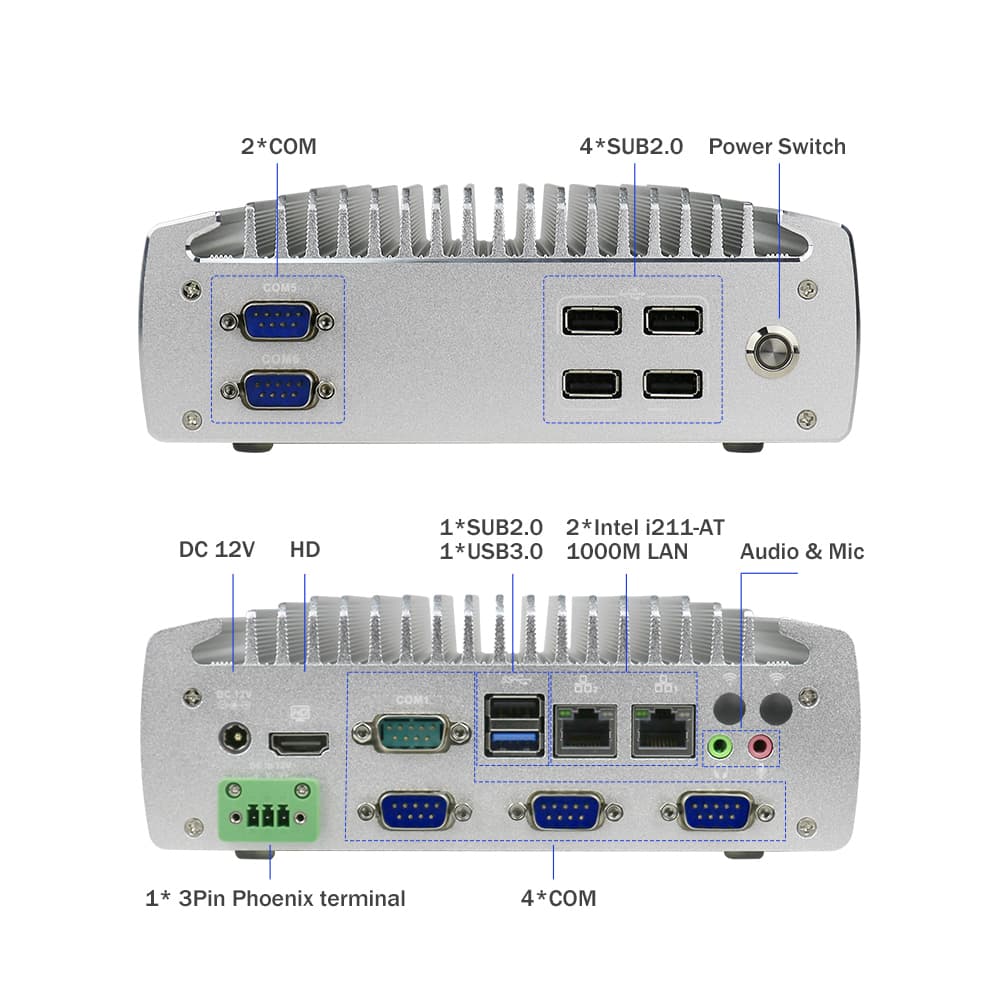

Front I/O	4USB2.0，2COM，1*Power Switch
Rear I/O	1USB3.0，1USB2.0，4COM（COM1、COM2 RS232/485 Optional），13PIN Phoenix connector
Rear I/O	21000M LAN，1HDMI，1DC 12V Input，1Mic，1*Line Out
Expansion Slot	Support 1*MINI PCIE Slot（Support MSATA）；

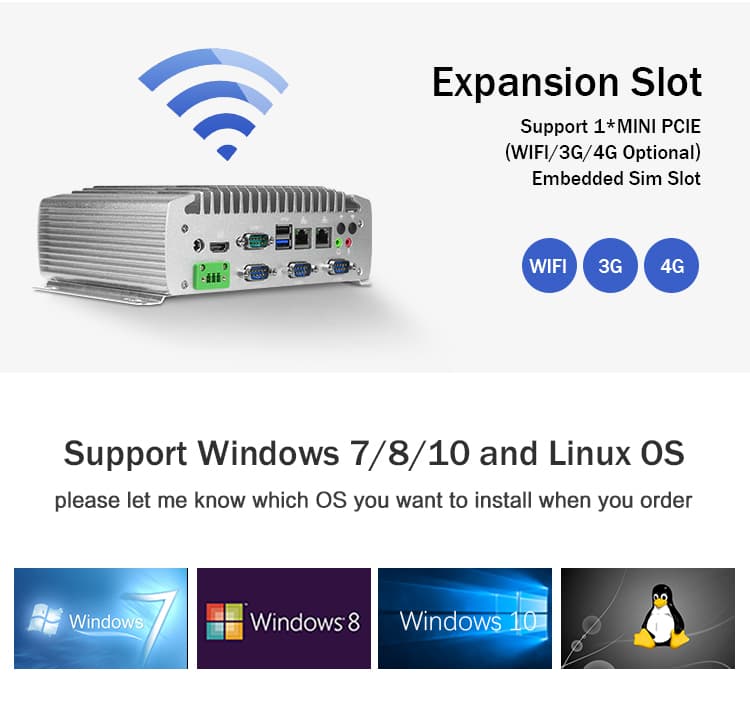

Expansion Slot	Support 1*MINI PCIE Slot（WIFI/3G/4G Optional），Embedded SIM Slot；
Network	2*Intel i211-AT 1000M LAN
Storage	Support 1MSATA Slot，12.5”HDD
Input Voltage	Support DC 12V Input
Other Function	Auto power on when there is electricity、 Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level）(Standard version doesn’t set these function)
Work Temp	0℃ ～ +50℃（Commercial HDD），-20℃ ～ +60℃（Industrial SSD），Surface air flow
Work Humidity	5% ～ 95% non-condensing
Certificates	CE、 CCC、 FCC Class A、 ROHS
Dimension	186 * 150 * 66mm【Not include the brackets】
Net Weight	1.6kg【Not include the brackets】
Application	Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc.

6 COM Ports Fanless Industrial Mini PC Specifications

Core Advantage: Exceptional Serial Connectivity

The primary selling point of this fanless industrial mini PC is its integrated 6 COM ports. In modern industrial settings, many specialized sensors, PLCs, and legacy hardware still rely on serial communication. The IBOX-101 Plus eliminates the need for unstable USB-to-Serial adapters, providing direct, reliable hardware-level connections for:

Industrial Automation

Controlling multiple robotic arms or CNC machines simultaneously.

Retail & POS

Managing receipt printers, barcode scanners, and customer displays from a single hub.

Medical Equipment

Connecting various diagnostic tools to a centralized processing unit.

Applications & Purchasing Recommendations

Recommended for:

System Integrators looking for a stable platform with extensive legacy I/O support.
Factory Managers needing a rugged gateway that can withstand vibration and dust.
Smart City Projects requiring 4G-enabled outdoor controllers for traffic or environmental monitoring.

Practical User & Operational Guide to 6 COM Ports Fanless Industrial Mini PC

Manufacturing Quality

The high-quality all-aluminum chassis features surface anodic oxidation, providing superior corrosion resistance and heat dissipation.

Installation

The fanless design relies on surface air flow; ensure the aluminum fins are not covered. Use the integrated 3PIN Phoenix connector for secure power input in high-vibration environments.

Usage Tip

Leverage the Watchdog function (0~255 level) to ensure the system automatically reboots if a software crash occurs during remote operation.

Maintenance

Since there are no moving fans, maintenance is minimal. Simply wipe the external fins occasionally to prevent heavy dust buildup from insulating the heat.
