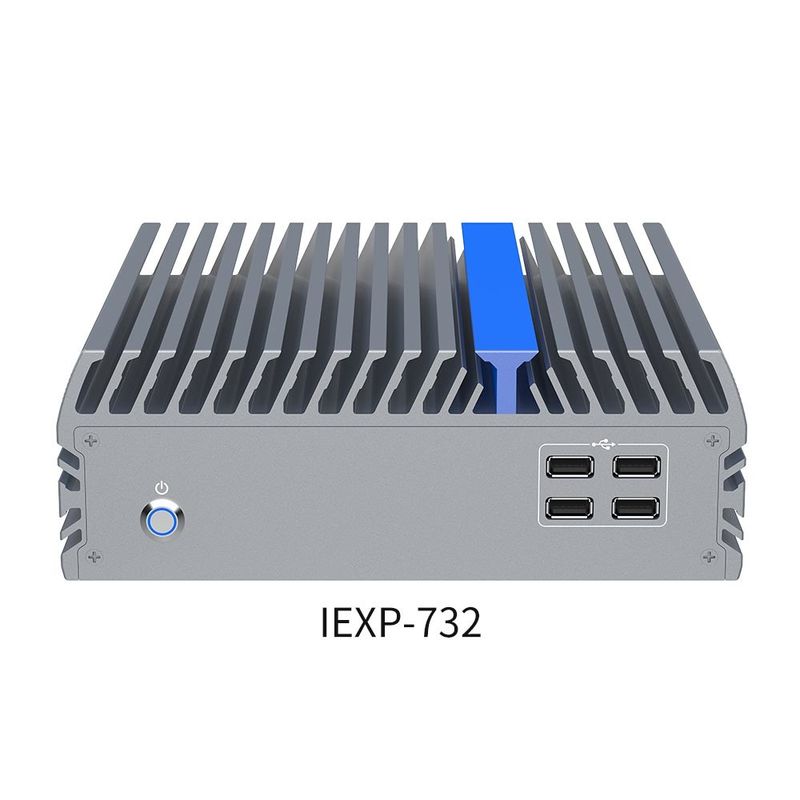

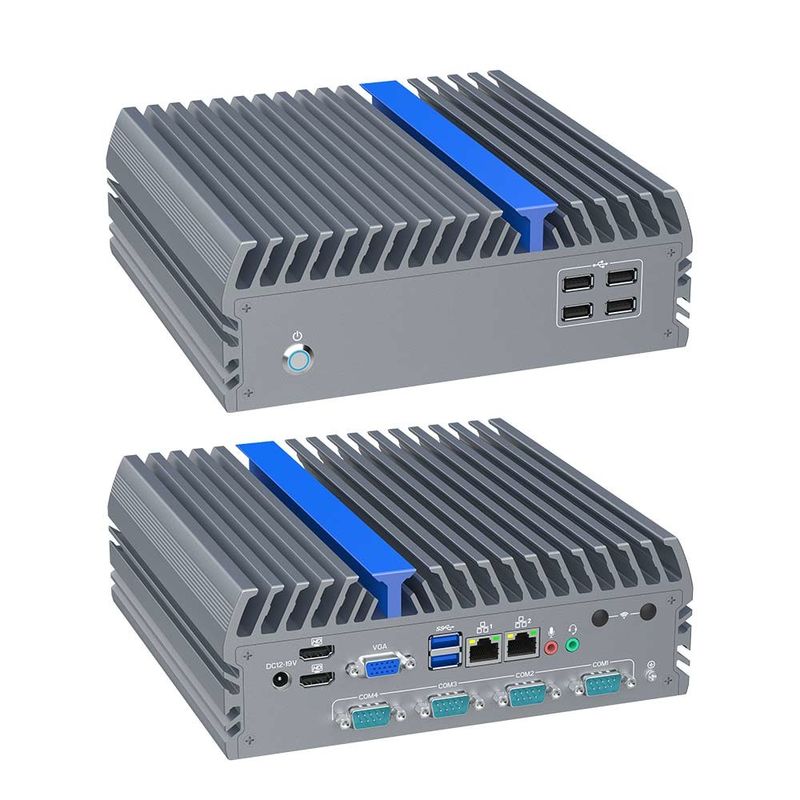

I5-12500T Industrial Mini PC Intel 12th Independent Core I5 6 Core With 4 COM 64GB DDR4 Memory
Product Details:
| Place of Origin: | Mini PC manufacturer China |
| Brand Name: | YANLING |
| Certification: | CCC,CE,ROHS,ISO9001 |
| Model Number: | IEXP-732 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | $ |
| Packaging Details: | Each pc for one neutral box |
| Delivery Time: | 3-5 Days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 10000 Pcs/Month |
Detailed Product Description
I5-12500T Industrial Mini PC: 12th Gen Power with 4 COM & 64GB DDR4 Scalability
The IEXP-732 is a professional-grade I5-12500T Industrial Mini PC designed to bridge the gap between high-performance desktop computing and rugged industrial reliability. Powered by the Intel® 12th Generation Alder Lake architecture, this system features 6 cores and 12 threads, making it a formidable controller for complex automation, medical imaging, and multi-stream data processing.
 | Core Technical Highlights & Features of I5-12500T Industrial Mini PC
|
Technical Parameter of I5-12500T Industrial Mini PC
Parameter | Storage | |||
| Processor | Intel Core i3-12300T Intel Core i5-12500T Intel Core i7-12700T | M.2 | 1xM.2 2280 M-key slot ( support PCIE3.0 x4 NVME) (support SATA SSD requires resistor switching signal) | |
| Chipset | H610 | SATA | 1x2.5 inch HDD | |
| Memory | 2xDDR4 3200MHz SODIMM slot, Max 64 GB | Expansion | ||
| Graphics Card | Mini PCIE | 1xfull-length Mini PCIE slot (support PCIE & USB2.0 singal, Optional 4G/WIFI/BT), internal Nano-SIM card slot | ||
| Graphics | Integrated Intel® UHD Graphics 730/770 (synchronous/asynchronous dual display) | |||
| Display | 1xHDMI Port (Resolution 3840x2160 @60Hz) 1xVGA (Resolution 1920x1080 @60Hz) | Dimension | ||
| Size | 215 x 203 x 75 mm | |||
| Ethernet Network | Weight | 3.27 kg (Barebone) | ||
| Lan Port | 2xRealtek RTL8111H Gigabit LAN | Installation | Wall-mounted (standard included), desktop (default support) | |
| I/O | Environment | |||
| USB | 2xUSB3.0, 6xUSB2.0 | Temperature | -20℃~ +60℃, Surface air flow | |
| COM | 4xCOM (COM1/2 RS232/485 Optional) | Humidity | 5%~95% Non-condensing state | |
| Audio | 1xLine out, 1xMIC | Other Function | Power-on, Timing boot, Wake on LAN, PXE boot, watchdog (level 0-255), TPM2.0 security encryption | |
| Power Supply | ||||
| Power Supply | 1xDC Input (5.5x2.5mm), support 12V~19V | Application | Industrial automation, medical, logistics, transportation, warehousing, e-education and other fields | |

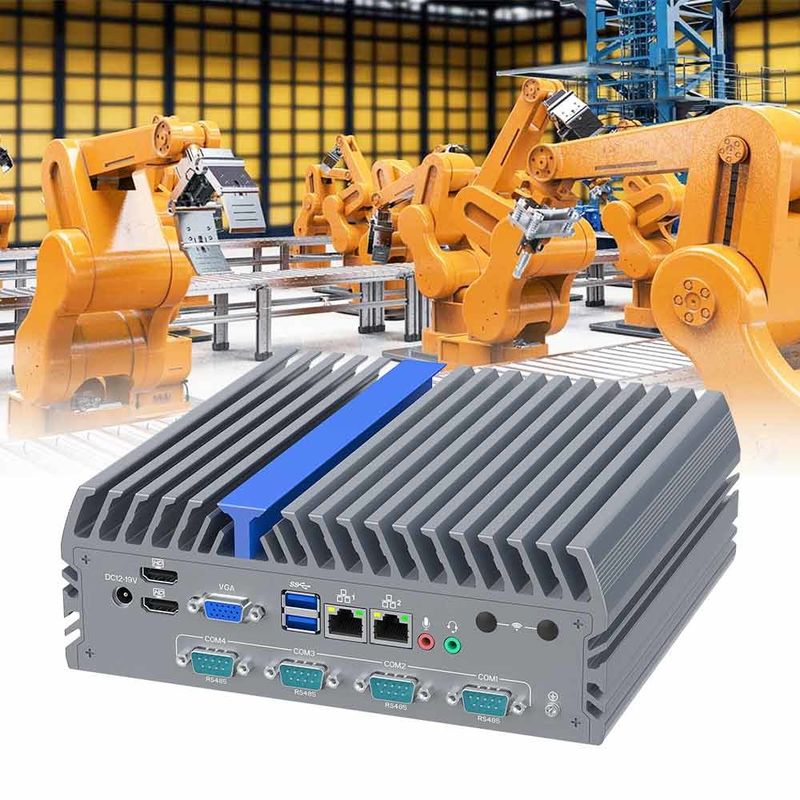

Applications of I5-12500T Industrial Mini PCThe IEXP-732 is engineered for 24/7 stability across various demanding sectors:
|  |
Buyer’s Guide: Why Choose the I5-12500T Industrial Mini PC?
When purchasing an I5-12500T Industrial Mini PC, consider these "Hidden Values" that YANLING provides:
Thermal Management: The IEXP-732 uses high-grade aluminum for surface airflow cooling, rated for -20°C to +60°C. Always verify that your operating environment matches these thermal parameters.
Watchdog & Remote Management: Built-in Watchdog (0-255 levels) and Wake on LAN (WOL) allow the system to self-recover from software hangs—critical for unmanned remote installations.
Power Flexibility: Supports a wide-range DC input (12V~19V), accommodating fluctuations in industrial power grids.
Quality Assurance & Maintenance Tips
Quality Testing: Every YANLING IEXP-732 undergoes a 24-hour full-load aging test and vibration resistance checks to ensure the soldered components withstand factory-floor harmonics.
Maintenance: Thanks to the fanless/low-noise structural design, internal dust accumulation is minimized. We recommend an annual check of external I/O ports and ensuring the DC power brick is kept in a ventilated area.
Technical Support: YANLING provides the IEXP-732 Ver 1.0 PDF documentation for BIOS configuration and driver installation, ensuring your IT team has full control over the hardware.
Empower Your Industrial Edge with IEXP-732
The IEXP-732 is not just a mini PC; it is a high-performance engine for the modern smart factory. By combining the massive 12-thread processing power of the Intel 12th Gen i5-12500T with a rugged, fanless-ready aluminum design, YANLING delivers a solution that eliminates downtime and maximizes data throughput. With 4 COM ports for seamless legacy integration and support for 64GB of RAM, this unit is ready for the most intensive machine vision and AI edge applications.
Take the next step in industrial efficiency. Whether you need a single unit for testing or a bulk OEM/ODM partnership, YANLING offers factory-direct expertise and global shipping. Contact our sales team today for a custom quote or technical consultation!
