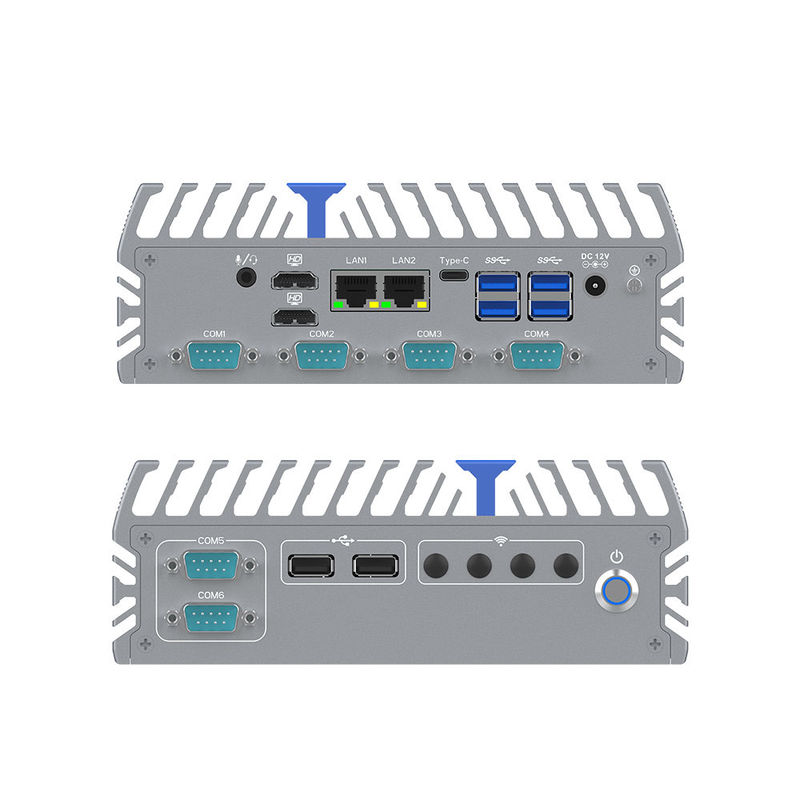

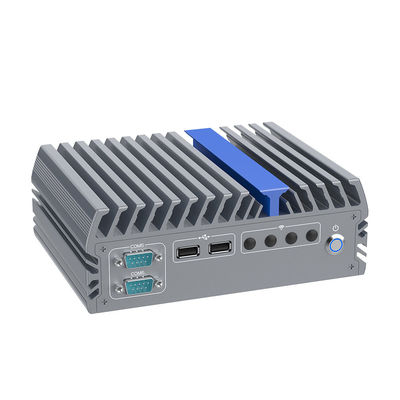

Intel N100 Rugged Industrial PC 6 USB 6 COM Wall Mounted Computer 1 X 2.5 Inch HDD DDR 4800
Product Details:
| Place of Origin: | Industrial Computer Manufactur |
| Brand Name: | YANLING |
| Certification: | CCC, CE, ROHS, ISO9001 |
| Model Number: | IEXP-322 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Unit |
|---|---|
| Price: | $ Customized |
| Packaging Details: | Each pc for one neutral box |
| Delivery Time: | 3~5 Working Days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 10000 Pcs/Month |
Detailed Product Description
Product Overview: Intel N100 Rugged Industrial PCThe IEXP-322 is a high-performance Intel N100 Rugged Industrial PC engineered for mission-critical reliability. Driven by the 12th Gen Alder Lake-N N100 processor with an ultra-efficient 6W TDP, this fanless system excels in 24/7 continuous operation. It features a robust I/O layout with 6 USB ports and 6 RS232 COM ports, facilitating extensive peripheral connectivity. With support for DDR5 4800MHz memory and a dedicated 1 x 2.5 Inch HDD/SSD bay, it provides a perfect balance of high-speed processing and high-capacity storage. Its wide temperature tolerance (-20°C to 60°C) and compact, wall-mountable design make it the definitive choice for industrial automation and edge data collection. |  |
Parameter of Intel N100 Rugged Industrial PC at YANLING
Parameter | IEXP-322 | Storage | ||
| Processor | Intel N100(quad core quad thread,Max Turbo 3.4 GHz) | M.2 | 1x M.2 2280 M-key slot(support SATA ) | |
| Chipset | Alder Lake-N | SATA | 1x 2.5 inch SSD slot | |
| Memory | 1x DDR5 4800 slot, Max 16 GB | Expansion slots | ||
| Graphics Card | Mini PCIE | 1 x Full length Mini PCIe slot(PCIE&USB2.0 ,4G/WIFI/BT optional), Nano-SIM slot | ||
| Graphics Card | Intel(R) UHD Graphics | M.2 | 1x M.2 2230 E-key slot( support WiFi / BT) | |
| Display port | 2 x HD-MI , 1x Type-C | Size/weight | ||
| Dimension | 7.3x 5.5 x 2.6 inch | |||
| Ethernet | weight | |||
| Internet port | 2 x Intel I226-V 2.5G Ethernet | Installation | VESA , Wall-mounted, Din-rail (optional) | |
| I/O | Environmental | |||
| USB | 4x USB 3.0, 2x USB 2.0 | Operating Temperature | -20℃ to 60℃, Surface air flow | |
| COM | 6 x RS232 COM (standard) | Operating Humidity | 5% ～ 95% Non-condensing state | |
| Audio | 1 x Line-out/Mic-in, two in one audio | Other Function | Power on when there is electricity, network wake up timed startup, PXE startup ,TPM2.0 | |
| Power supply | ||||
| Power Input | 1 x DC(5.5 x 2.5mm), support 12V input | Application | Industrial automation, medical, transportation, logistics, warehousing, e-education.,etc | |

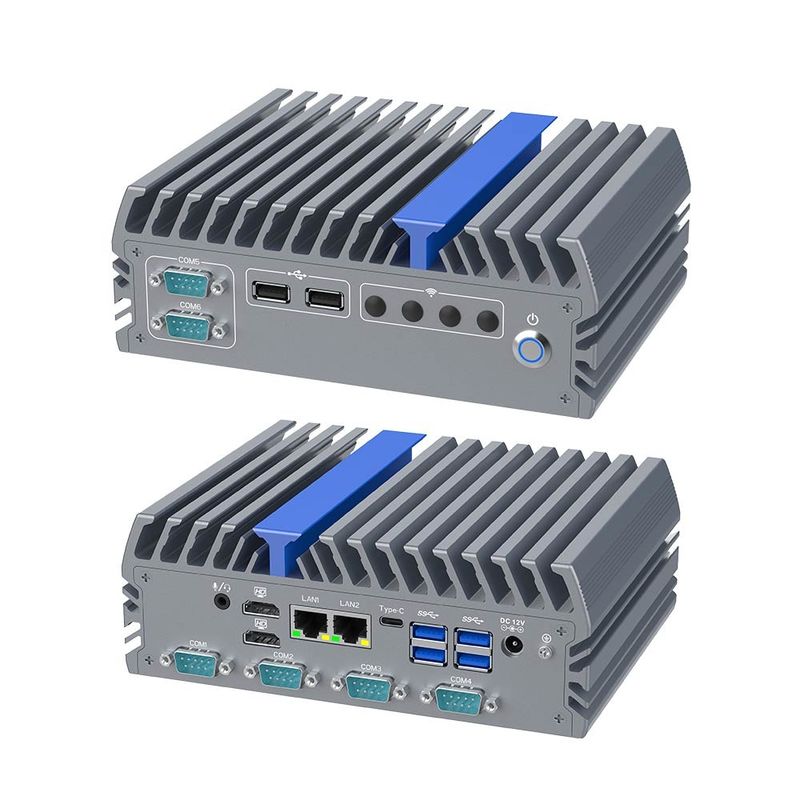

Key Features and Functions of N100 Rugged Industrial PC 6 USB 6 COM
Next-Gen Computing: 12th Gen Intel N100 Quad-Core CPU (up to 3.4GHz) for modern industrial workloads.
Advanced Memory & Storage: Supports high-bandwidth DDR5 4800MHz RAM and dual storage (M.2 NVMe + 2.5" SATA HDD).
Massive Connectivity: Equipped with 6x RS232 COM ports for legacy hardware and 6x USB ports (4x USB 3.0) for high-speed peripherals.
High-Speed Networking: Dual Intel I226-V 2.5G Ethernet ports for low-latency, high-bandwidth communication.
Triple 4K Display: Dual HDMI and a full-function Type-C port supporting 4K @ 60Hz resolution.
Industrial Hardening: Fanless aluminum alloy chassis provides silent cooling and protection against dust and vibration.
Core Selling Points & Advantages of N100 Rugged Industrial PC 6 USB 6 COM 1 X 2.5 Inch HDD DDR 4800
Intel N100 Efficiency: The 6W TDP ensures significantly lower power costs and heat generation compared to traditional industrial PCs.
Legacy & Modern I/O: The inclusion of 6 COM ports eliminates the need for external hubs when connecting sensors, scanners, and PLC controllers.
Hybrid Storage Flexibility: The 1 x 2.5 Inch HDD slot allows for cost-effective, high-capacity local data logging alongside a fast M.2 OS drive.
DDR5 4800 Performance: Utilizing the latest DDR5 standard ensures faster data throughput and improved system responsiveness for AI and IoT tasks.
Industrial Applications of N100 Rugged Industrial PC
Smart Logistics: Integrated into forklifts or AGVs for real-time data collection and navigation.
Factory Automation: Serving as a reliable gateway for CNC machine control and production line monitoring.
Outdoor Kiosks: Powering high-brightness digital signage and ticketing machines in extreme climates.
Medical Solutions: Compact, silent, and stable computing for diagnostic equipment and nursing stations.
 |

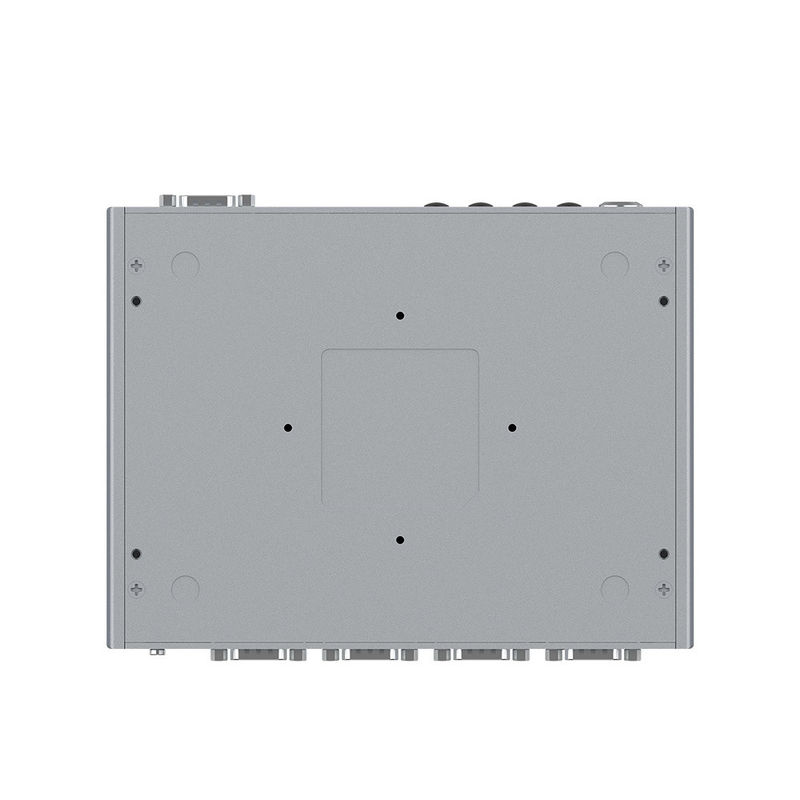

Installation and Maintenance of N100 Rugged Industrial ComputerThe IEXP-322 supports versatile mounting options, including Wall-mounted, VESA, and DIN-Rail. For installation, ensure the aluminum cooling fins are not obstructed to allow for natural convection. Maintenance is minimal due to the fanless design; simply ensure that the external ports remain clean and that the power input stays within the rated 12V DC range. |
Usage and Care Guide to N100 Rugged Industrial PC 6 USB 6 COM
Power Management: Utilize the "Power on when there is electricity" function for automated recovery after outages.
Environmental Care: While rated for -20°C to 60°C, avoid placing the unit in direct sunlight or unventilated enclosures to maximize the lifespan of internal capacitors.
Storage Care: If using a mechanical 2.5-inch HDD, ensure the unit is mounted securely to minimize the impact of external vibrations on the disk.
Quality Inspection & Smart Buying Tips
Thermal Stress Check
| Connectivity Validation
| Certification Check
|
Conclusion & Target Audience
The Intel N100 Rugged Industrial PC is a future-proof investment for system integrators, automation engineers, and logistics managers who demand durability without sacrificing modern performance. Its unique combination of 6 COM ports, DDR5 support, and wall-mount versatility makes it the top-tier choice for industrial edge computing. Contact YANLING today for wholesale pricing and customized I/O configurations!
