YANLING Industrial Computer Technology (Shenzhen) Co., Ltd
Product Details
| Place of Origin: | Industrial Computer Manufactur |
|---|---|
| Brand Name: | YANLING |
| Certification: | CCC, CE, ROHS, ISO9001 |
| Model Number: | IBOX-605 |
Payment & Shipping Terms
| Min Order: | 10 Units |
|---|---|
| Price: | $ Customized |
| Packaging: | Each pc for one neutral box |
| Delivery Time: | 3~5 Working Days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 10000 Pcs/Month |
Detailed Product Description

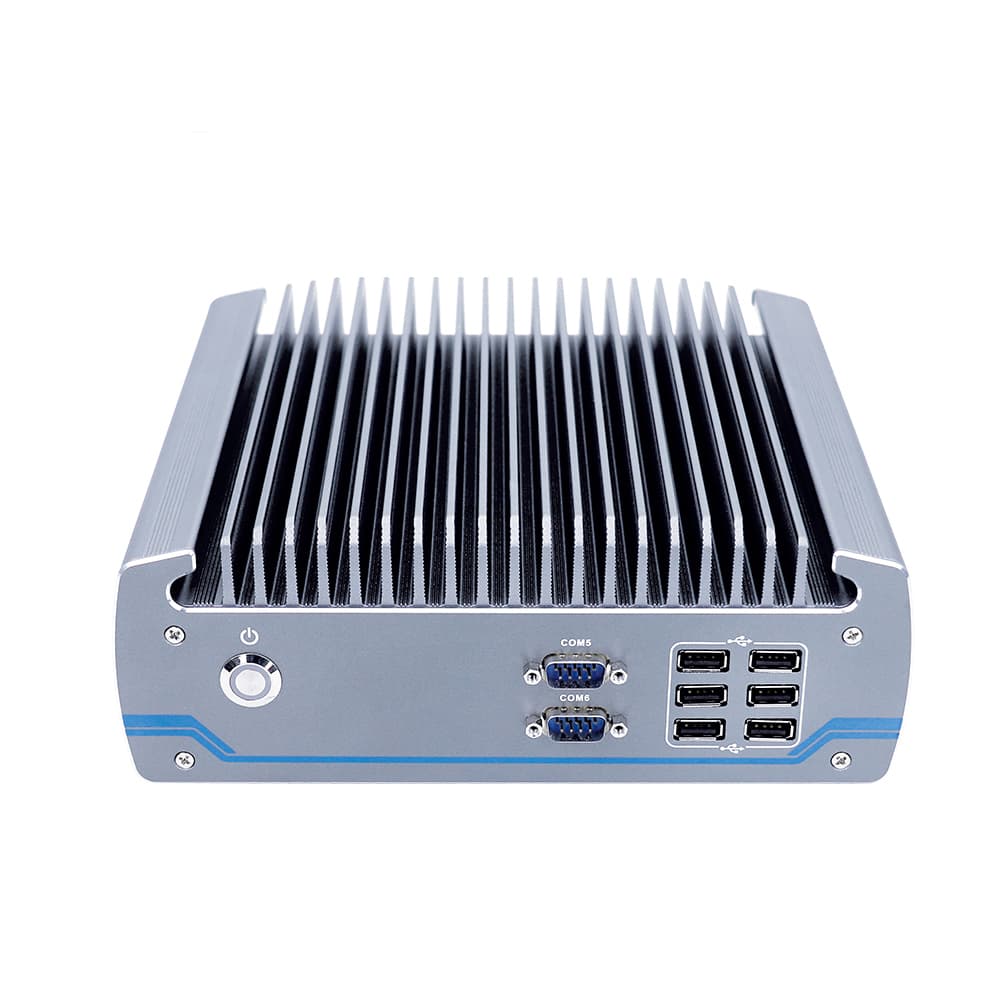

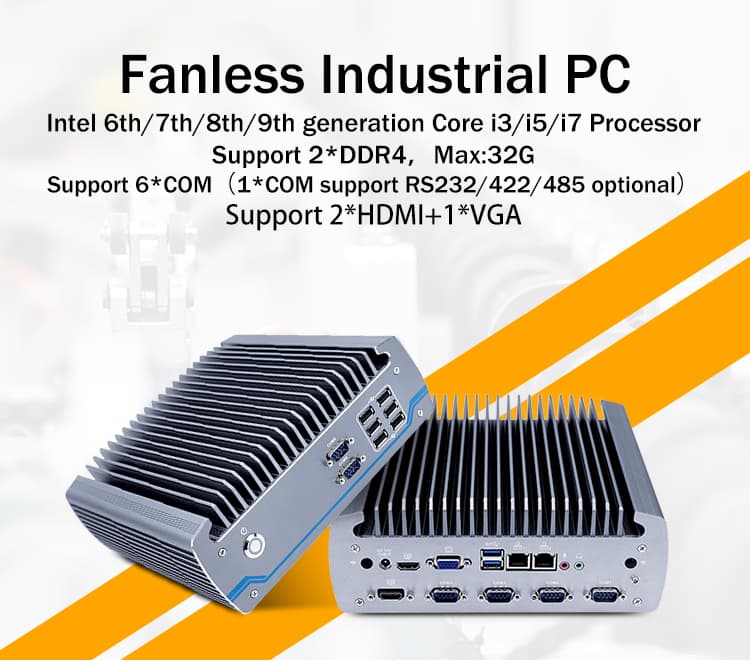

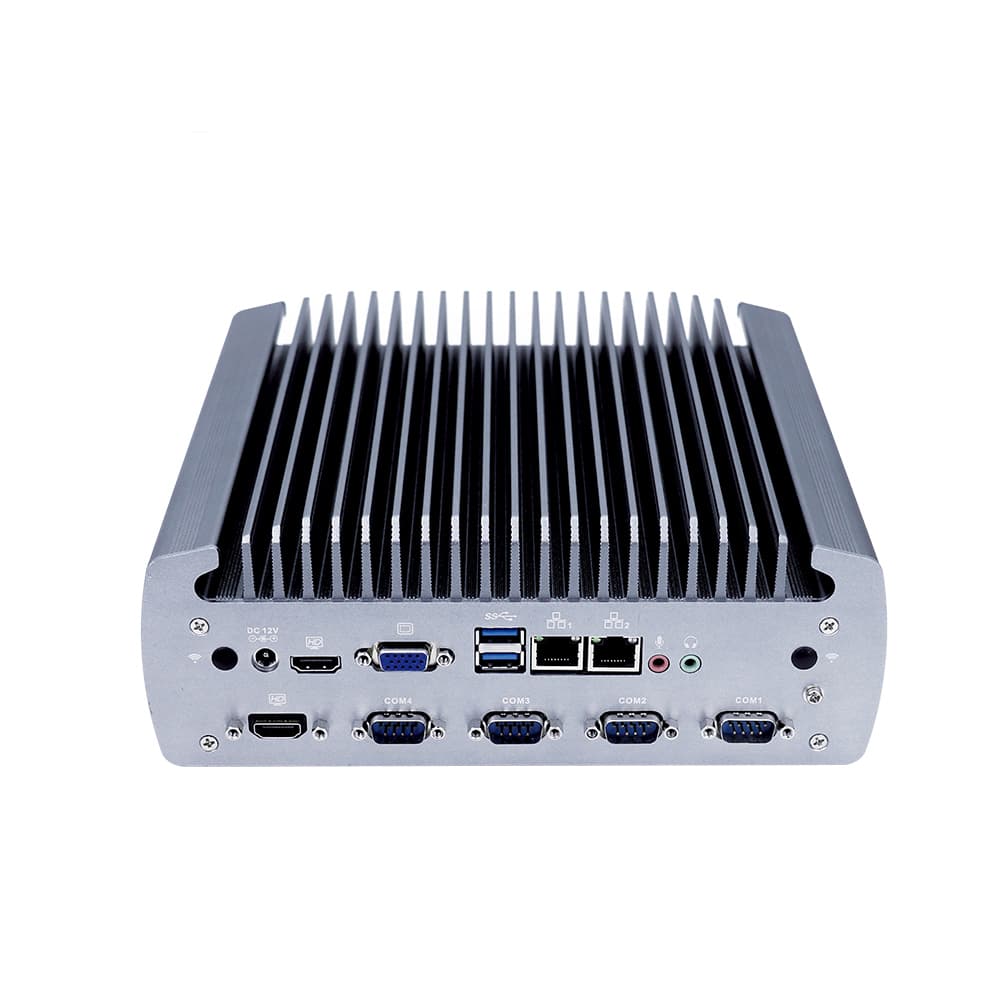

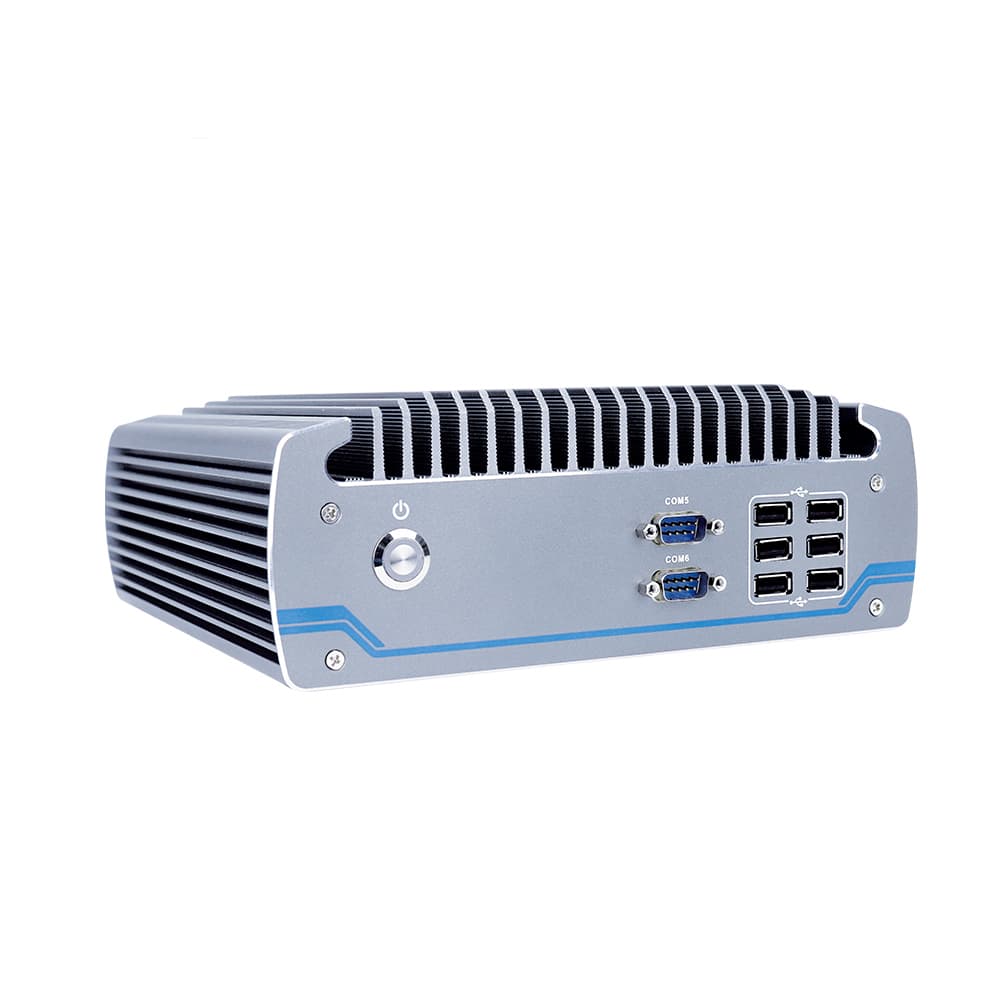

Fanless industrial desktop PC IntroductionFanless industrial desktop PC (Model: IBOX-605) is a robust, high-performance embedded system designed to excel in challenging industrial environments. Encased in a high-quality all-aluminum titanium gray chassis with an anodic oxidation surface, it utilizes a passive cooling design that eliminates mechanical fans, significantly reducing failure points and noise. Powered by the Intel H310 chipset and supporting up to 8th Gen Intel Core i7 processors, this unit provides the computational strength required for complex data processing and automation. With an extensive I/O layout featuring 6*COM ports and dual HDMI outputs, the IBOX-605 offers seamless connectivity for multi-display monitoring and legacy equipment integration. |  |
The fanless all-aluminum structure ensures that this industrial desktop PC remains impervious to dust and debris. By removing fans, we eliminate the primary cause of system failure in factory environments, allowing for 24/7 operation with minimal maintenance.
In industrial sectors, serial communication is vital. This PC provides 6*COM ports (with COM2 optionally supporting RS232/RS422/RS485), enabling simultaneous connection to multiple PLCs, sensors, scanners, and robotic controllers without needing external adapters.
Supporting dual HDMI (and 1*VGA) allows for synchronous or asynchronous triple-display setups. This is a critical advantage for control rooms and digital signage projects that require multiple data visualization points from a single compact source.
Support for the Intel Core i7-8700T (6 cores, 12 threads) means this unit handles edge computing and AI-driven industrial tasks that standard IPCs cannot, all while maintaining a low power profile.
Detailed Specifications of Fanless Industrial Desktop PC 6 COM Ports | |
Component | Technical Details |
Model | IBOX-605 (Titanium Gray All-Aluminum) |
Processor | Intel Core i3-8100T / i5-8500T / i7-8700T (Up to 4.0 GHz) |
Chipset | Intel H310 |
Memory | 2*DDR4 2133/2400 SODIMM slot, Max 32GB |
Display Interface | 2HDMI, 1VGA (Supports Triple Display) |
I/O Ports | 6COM, 2USB 3.0, 6USB 2.0, 2Intel 1000M LAN |
Storage | 1M.2 2280 Slot, 12.5" HDD (Optional 2*2.5" HDD) |
Expansion | 1*MINI PCIE (WIFI/Bluetooth), GPIO (4 Input/4 Output) |
Power Input | DC 12V~19V (Optional DC 9V~36V wide voltage) |
Operating Temp | -20°C ~ +60°C (with Industrial SSD) |

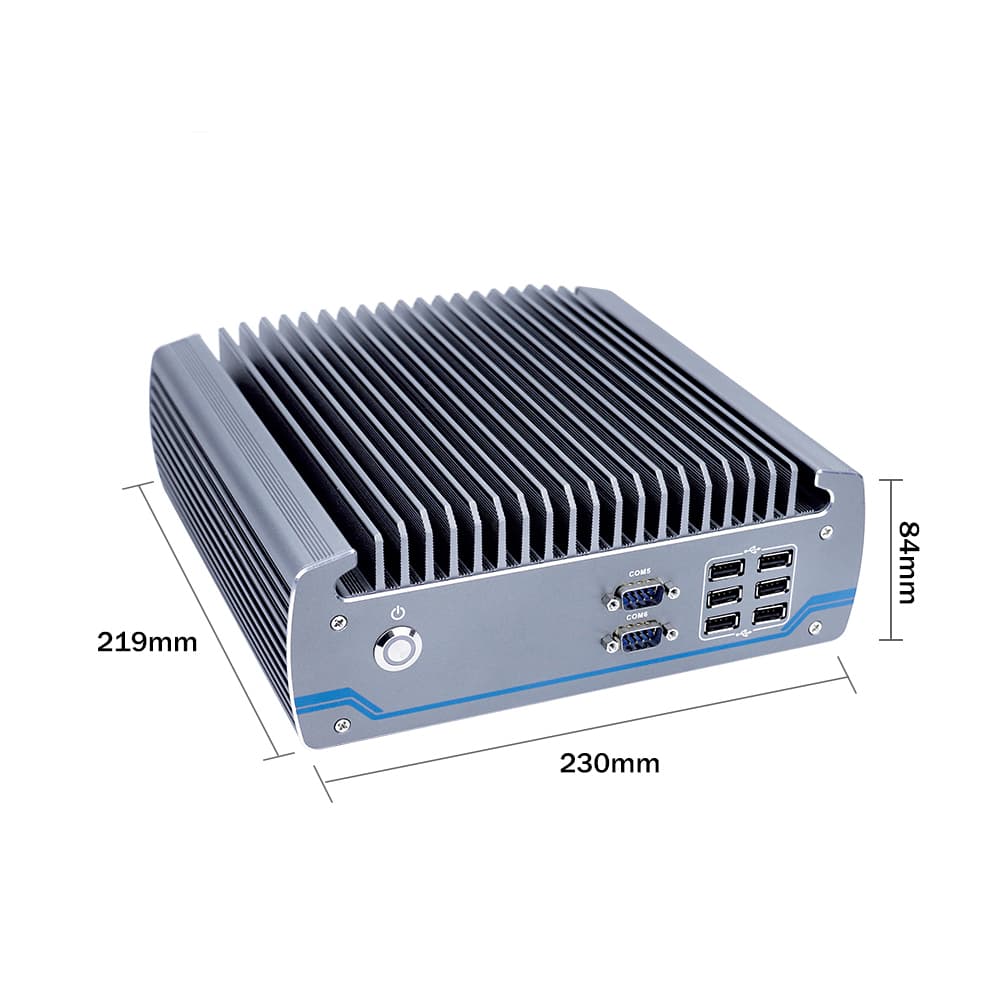

Dimensions | 230 * 219 * 84 mm; Weight: 4.0 kg |
The IBOX-605 solves common industrial pain points:
Dust & Vibration
| Connectivity Gaps
| Voltage Instability
|
Smart Manufacturing
| Command & Control Centers
| AI Edge Computing
|
 |
YANLING Technical Support & Service for This Fanless Industrial Desktop Computer1. Long-Lifecycle Support: YANLING provides consistent hardware supply for long-term industrial projects. 2. Pre-Sales Consultation: Engineering support for BIOS customization (Auto-on, Wake-on-LAN) and I/O port configuration. 3. Quality Assurance: Every unit undergoes a 24-48 hour burn-in test and holds CE, CCC, FCC Class A, and RoHS certifications. |
A: The fanless design significantly extends lifespan by preventing dust from entering the chassis and eliminating mechanical failure points, making it ideal for 24/7 industrial use.
A: Yes, while the standard is RS232, the IBOX-605 offers a configuration where COM2 supports RS232/RS422/RS485 to meet specific industrial protocol requirements.
A: Absolutely. By using M.2 SSD storage and the optional DC 9V~36V wide voltage input, the PC becomes highly resistant to the physical and electrical fluctuations common in mobile or vehicle-mounted environments.
A: Maintenance is minimal. Simply ensure the external cooling fins are free of heavy debris to maintain optimal passive heat dissipation.
The IBOX-605 is the ultimate fanless industrial desktop PC for users who need the processing power of an i7 with the ruggedness of a fanless chassis. With 6*COM ports and dual HDMI, it simplifies your hardware architecture and eliminates downtime.
Contact the YANLING industrial PC factory today for direct wholesale pricing and custom configuration options for your next mission-critical project!
