Product Details
| Place of Origin: | Industrial Computer Manufactur |
|---|---|
| Brand Name: | YANLING |
| Certification: | CCC, CE, ROHS, ISO9001 |
| Model Number: | IBOX-104 Plus |
Payment & Shipping Terms
| Min Order: | 100 Unit |
|---|---|
| Price: | $ Customized |
| Packaging: | Each pc for one neutral box |
| Delivery Time: | 3~5 Working Days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 10000 Pcs/Month |
Detailed Product Description

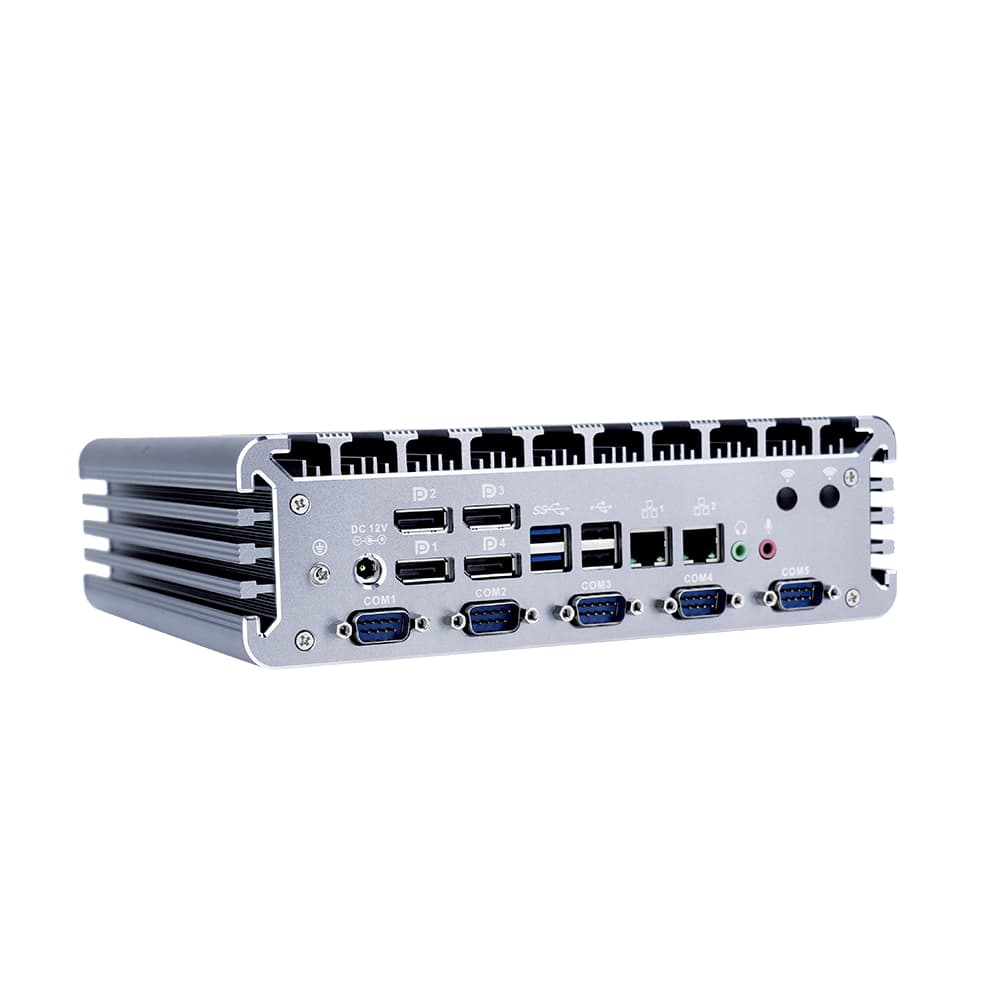

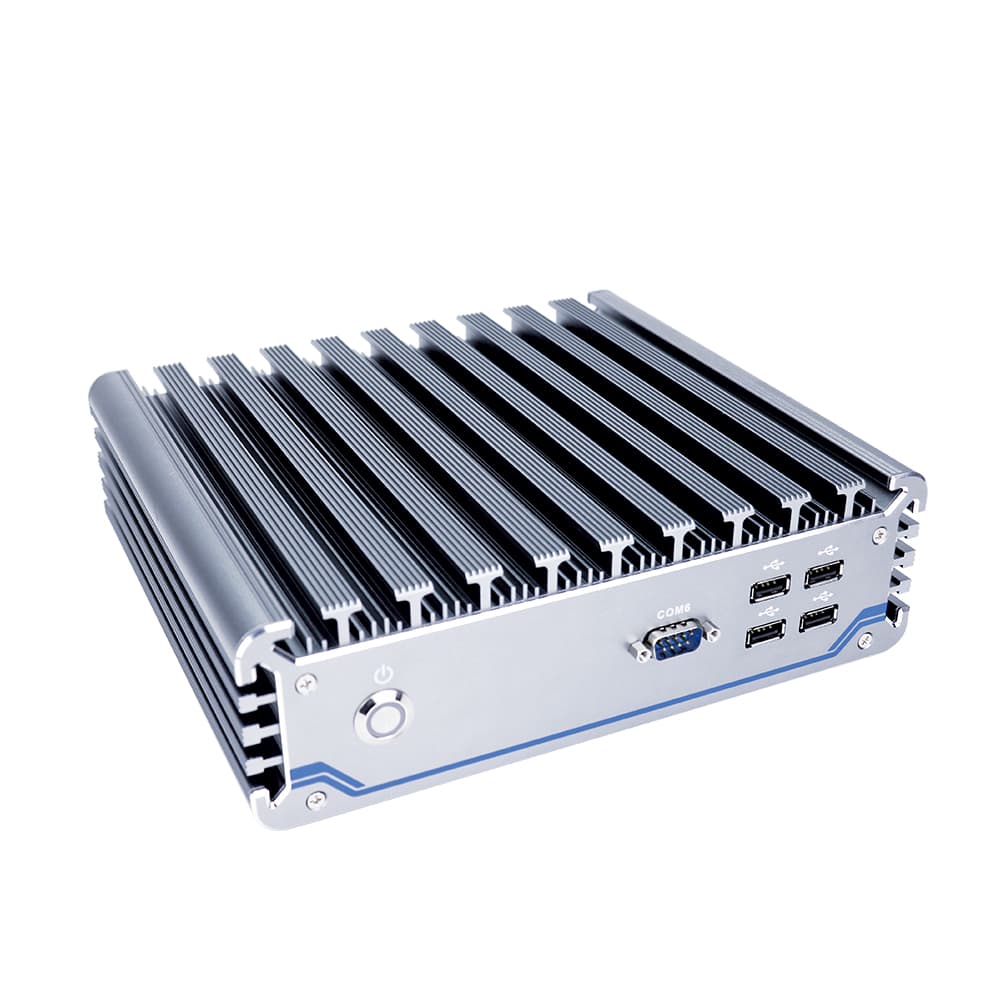

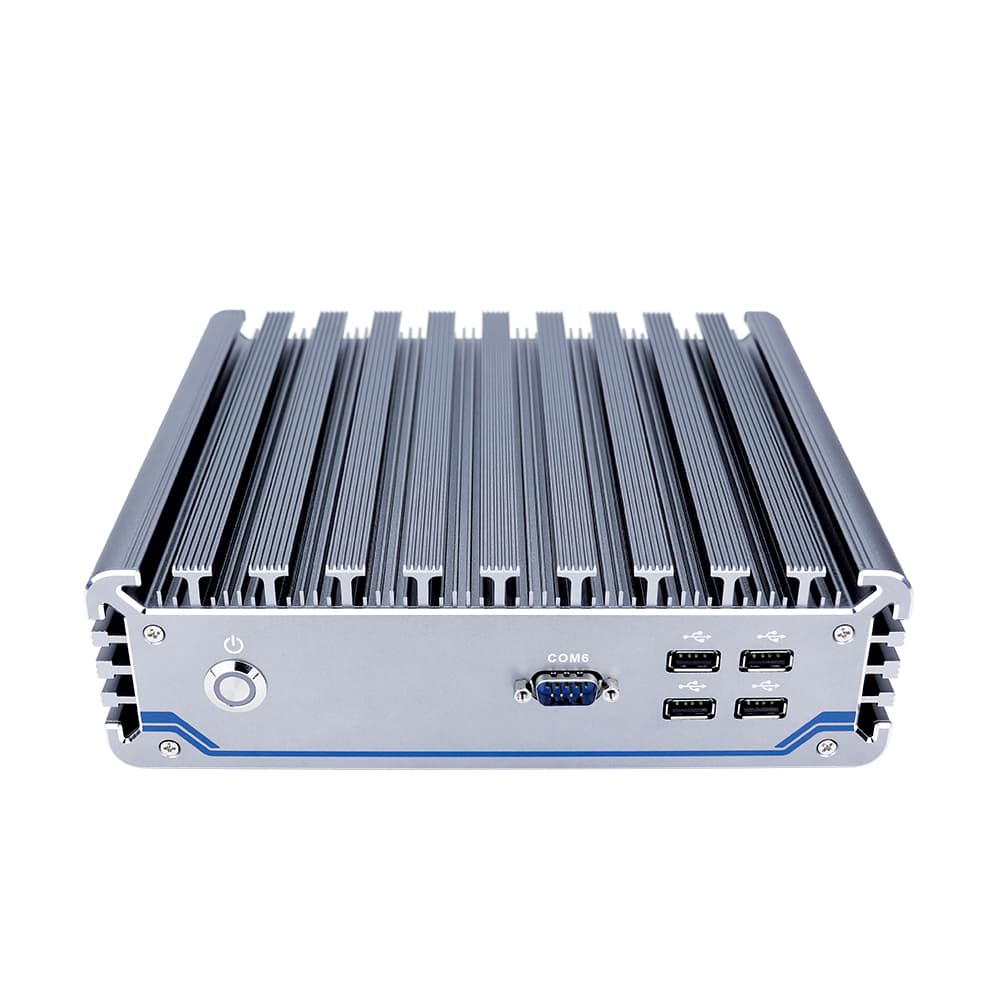

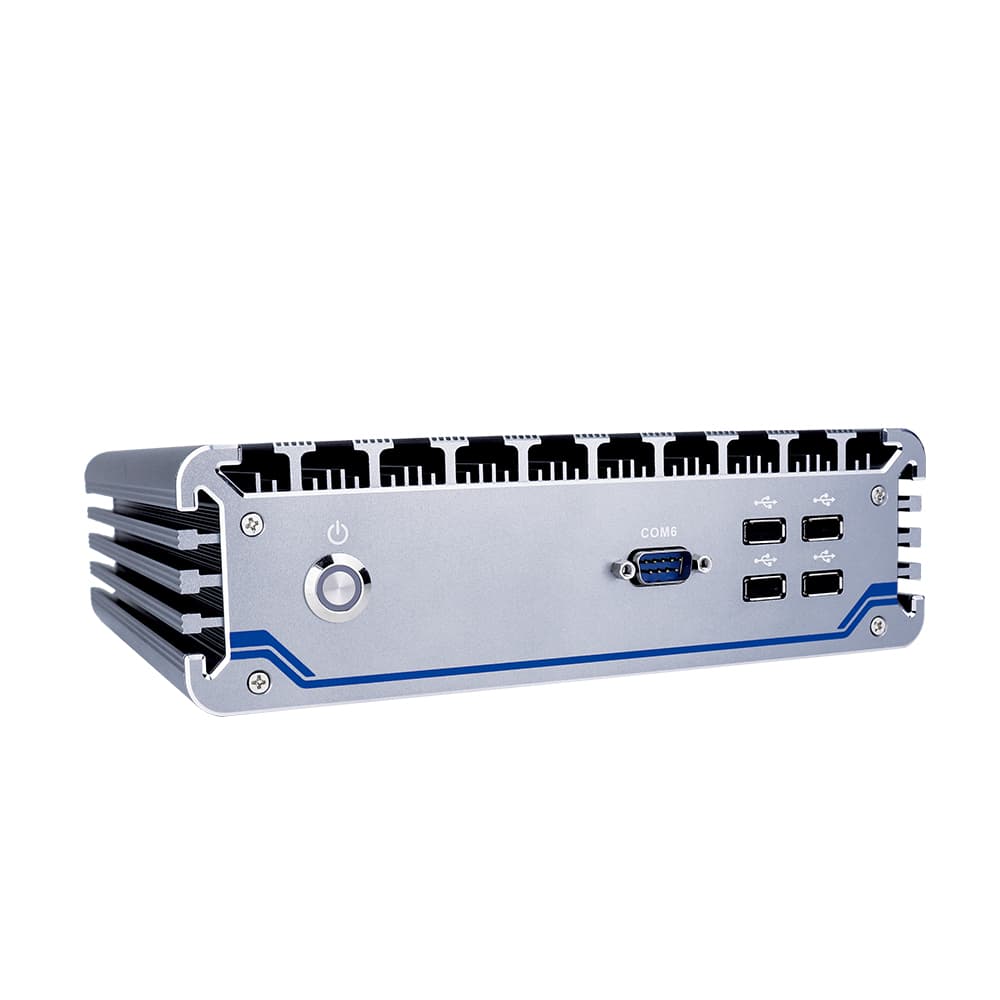

4-display splitting industrial desktop computer (Model: IBOX-104 Plus) is a high-performance, ruggedized workstation specifically engineered for multi-screen monitoring and high-definition advertising broadcast. Encased in a high-quality titanium gray all-aluminum chassis with an anodic oxidation surface, this unit provides exceptional durability and efficient thermal management. It is powered by an onboard AMD Ryzen™ Embedded V1605B processor, featuring a quad-core, eight-thread architecture that delivers up to 3.6GHz turbo frequency for demanding computational tasks. With support for four synchronous or asynchronous 4K displays and diverse serial connectivity, this industrial desktop computer serves as a reliable backbone for complex digital signage and intelligent monitoring systems.
The most significant advantage of this industrial desktop computer is its support for 4*DP 1.2 ports, enabling a resolution of up to 4096 x 2160 @ 60Hz per screen. This allows for a massive visual canvas, perfect for command centers or large-scale video walls, without the need for additional expensive graphics splitters.
By utilizing the AMD Ryzen™ V1605B with integrated Radeon™ Vega 8 Graphics, the system handles graphics-intensive workloads with ease. This processor is specifically designed for long-lifecycle industrial applications, offering better energy efficiency and thermal profiles than standard desktop chips.
The fanless design eliminates the primary failure point in industrial environments—dust and mechanical fan wear. The all-aluminum heat-dissipation fins ensure the system remains operational in temperatures ranging from -20℃ to 60℃ (with industrial SSD), providing 24/7 stability in harsh workshop or outdoor cabinet conditions.
 |
Feature | Technical Specification |
Model | IBOX-104 Plus (High-quality all aluminum structure) |
Processor | AMD Ryzen™ Embedded V1605B (Quad core, 8 threads, 2.0G, Turbo 3.6G) |
Graphics | Integrated AMD Radeon™ Vega 8 Graphics |
Memory | 2*DDR4 2400/2666 SODIMM slots, Max 32GB |
Display Ports | 4*DP 1.2 (Max resolution: 4096 x 2160 @ 60Hz) |
Serial Ports | 6*COM (COM2 supports RS232/485 Optional) |
Network | 2*RTL 8111H 10/100/1000M LAN |
Storage | 1M.2 2280 slot, 12.5" HDD |
Expansion | 1*M.2 E-Key (WIFI/BT), Embedded SIM slot for 4G module |
Input Voltage | DC 12V Input (Optional DC 9V~36V wide voltage) |
Dimension | 230 x 202 x 68 mm; Net Weight: 3.0kg |
 | Application Scenarios & Engineering Case Studies
|
At YANLING, we provide tailored configurations to fit your specific engineering needs:
Wide Voltage Input: Optional upgrade from DC 12V to DC 9V~36V for vehicle or unstable power environments.
Interface Expansion: Optional ports including GPIO, LPT, or PS/2 for specialized industrial peripherals.
Branding & Aesthetics: Titanium gray is standard, but chassis color can be customized for large-volume orders.
Industrial Certifications
| Reliability Features
| Long-Term Availability
|
The IBOX-104 Plus is the definitive 4-display splitting industrial desktop computer for professionals who refuse to compromise on visual power or durability. By merging AMD Ryzen™ performance with a rugged fanless chassis, we deliver a solution that simplifies complex multi-screen setups while ensuring zero downtime.
Ready to revolutionize your monitoring or broadcast system? Contact the YANLING expert team today to secure your wholesale pricing and technical sample!
