Product Details
| Place of Origin: | Mini PC manufacturer China |
|---|---|
| Brand Name: | YANLING |
| Certification: | CCC,CE,ROHS,ISO9001 |
| Model Number: | XP-512 |
Payment & Shipping Terms
| Min Order: | 1 Unit |
|---|---|
| Price: | $ |
| Packaging: | Each pc for one neutral box |
| Delivery Time: | 3-5 Days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 10000 Pcs/Month |
Detailed Product Description

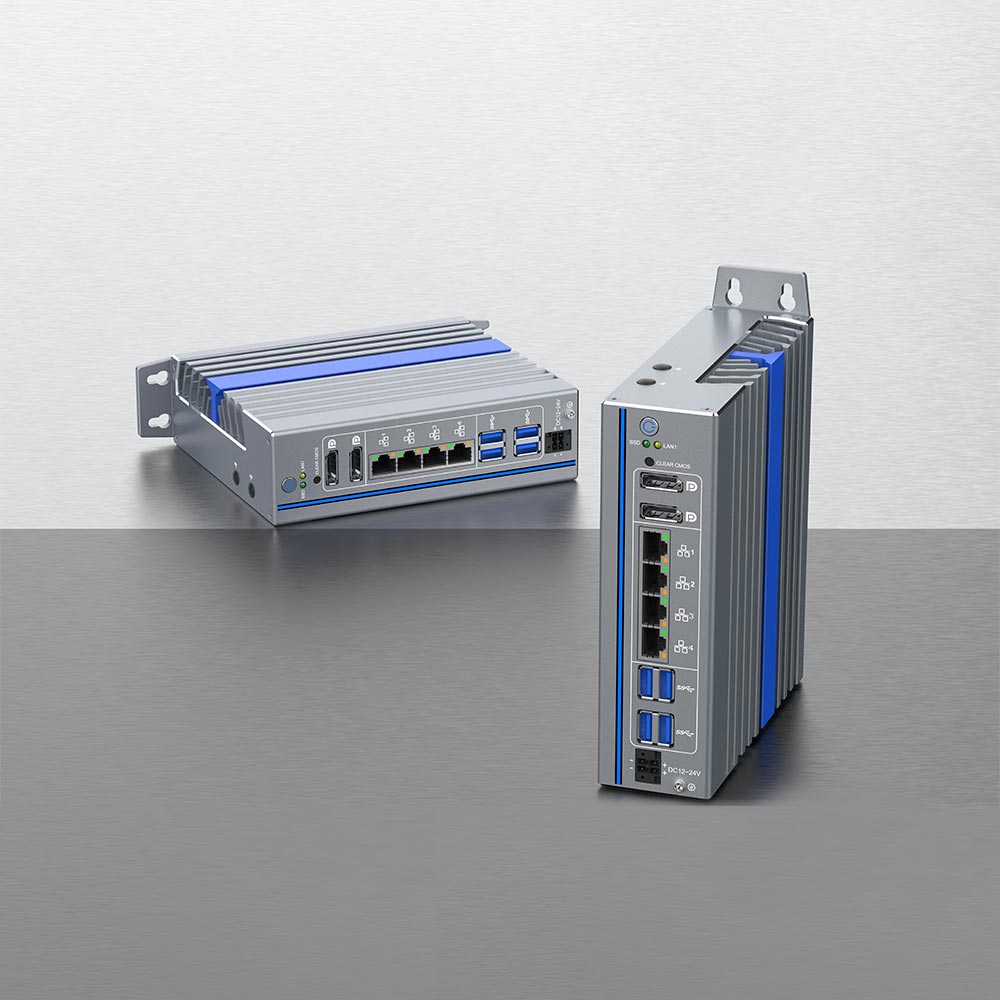

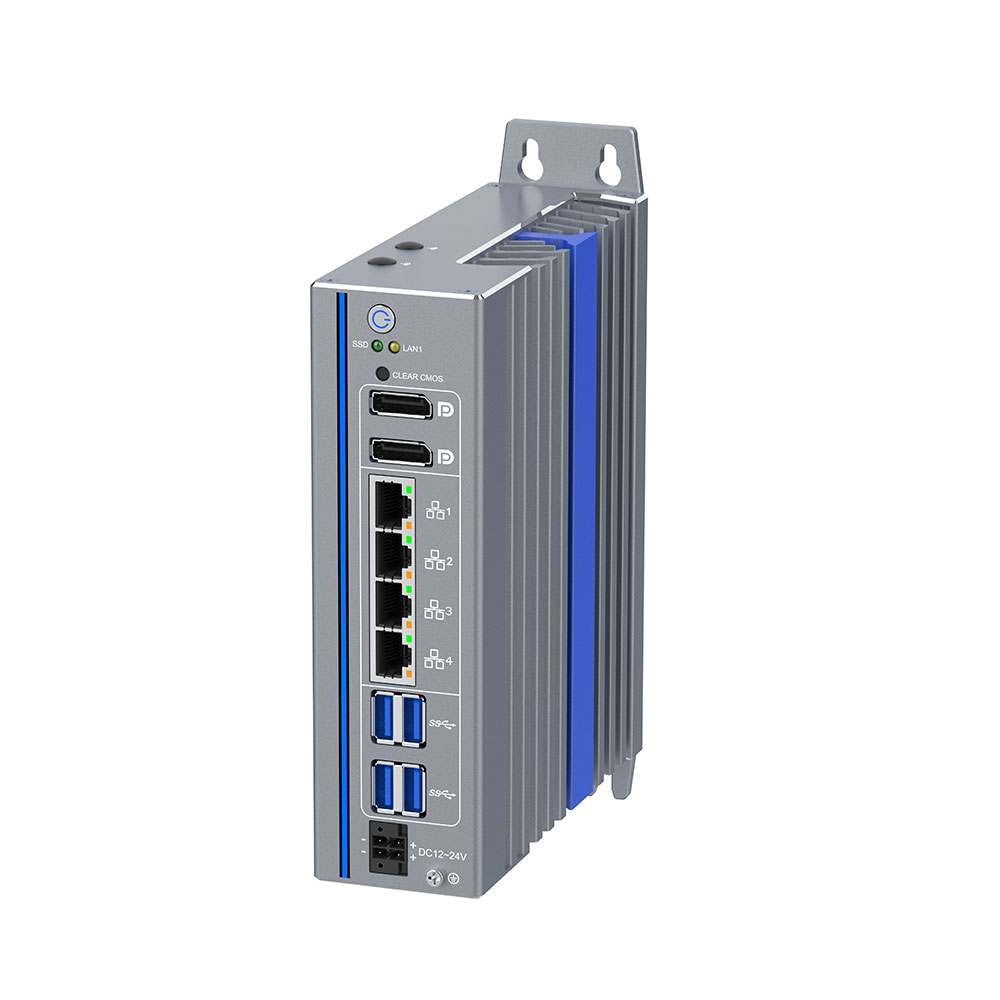

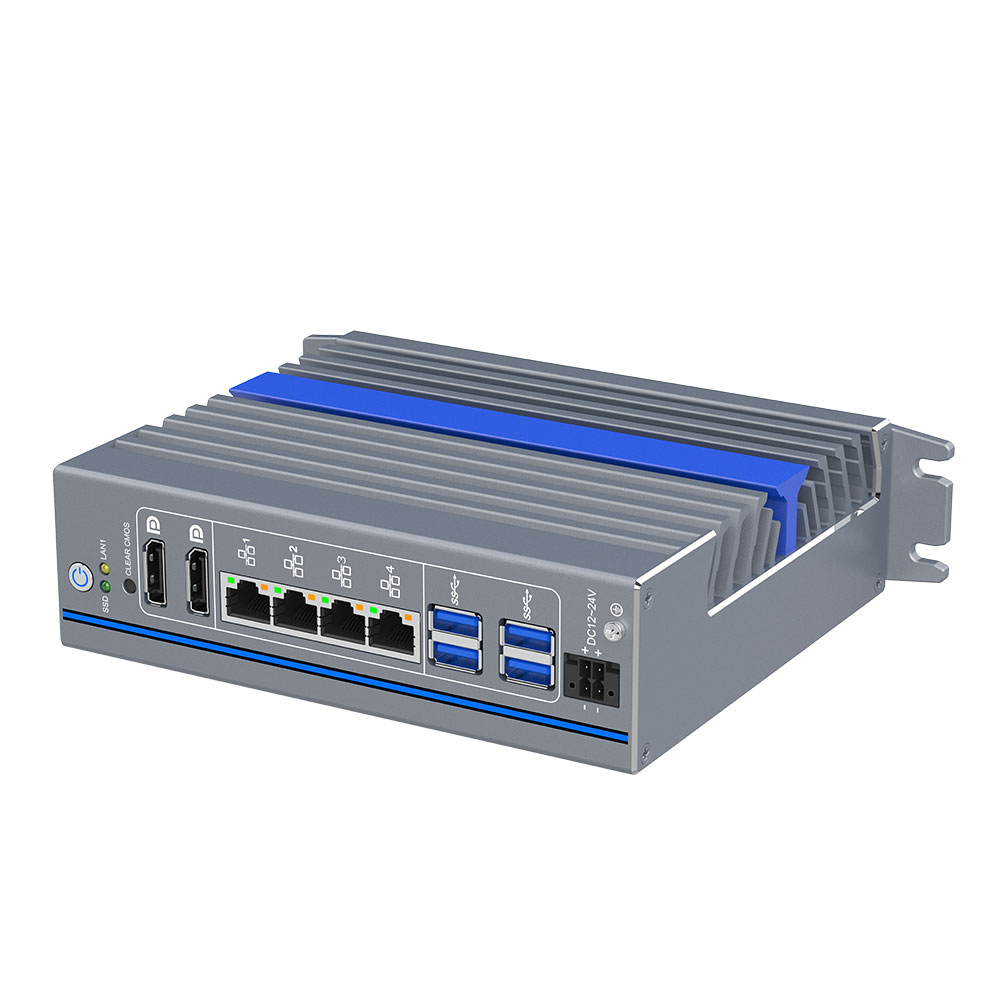

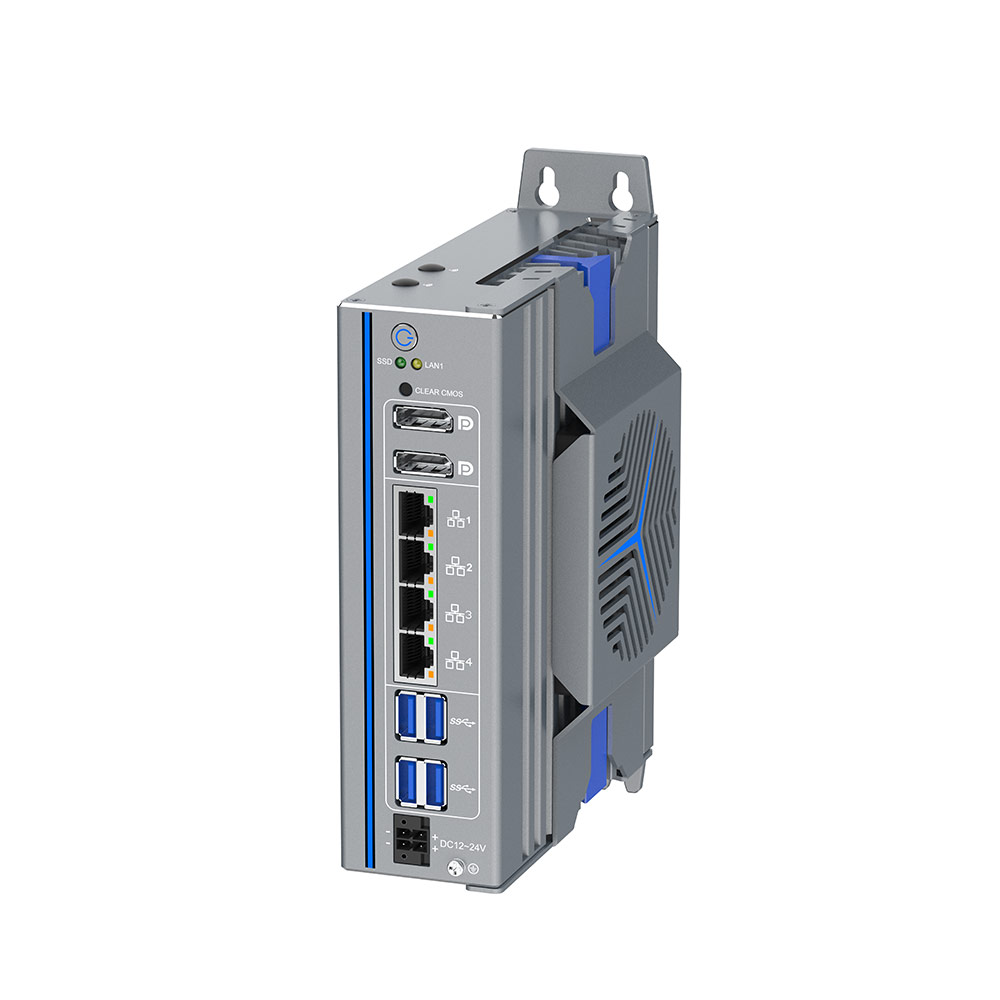

The DDR5 4800MHz Core i7 Industrial Mini PC (Model: XP-512) represents the next generation of high-performance embedded computing. Driven by the Intel Alder Lake U Series Deca-Core Processor, this unit is architected for data-intensive industrial applications that require rapid memory throughput and multi-network reliability. Its unique Book Type vertical orientation and fanless all-aluminum alloy structure make it an ideal fit for modern industrial cabinets and space-constrained control environments.
Parameter | Storage | |||
Processor | Intel i5-1235U (10 core 12 threads, Turbo. 4.4 GHz) Intel i7-1255U (10 core 12 threads,Turbo. 4.7 GHz) | M.2 | 1x M.2 2280 M-key slot (support SATA SSD & NVME SSD PCEIE 1X ) | |
Chipset | Alder Lake-U | MSATA | 1 x MSATA | |
Memory | 2xDDR5 4800MHz SODIMM, Max 64 GB | Expansion | ||
Graphics Card | Mini PCIE | 1xfull-length Mini PCIe slot (support PCIE & USB2.0 signal, 4G/WIFI/Bluetooth optional), internal Nano-SIM card slot | ||
Graphics | Intel(R) Iris(R) Xe Graphics | |||
Display | 2xDP(Resolution 7680 x 4320 @60Hz) | Dimension | ||
Size | 205 * 146 * 50 mm | |||
Network | Weight | 1.54 kg | ||
Lan Port | 3xIntel i210-AT, 1xIntel i219-LM 1000M Ethernet | Installation | Wall-mounted (standard included), Din rail (optional), Desktop (default support) | |
I/O | Environment | |||
USB | 4xUSB 3.0 | Temperature | -20℃~+60℃, Surface air flow | |
COM | Standard None, Optional 2xCOM (COM1/2 RS232/485) | Humidity | 5%~95% Non-condensing state | |
Audio | / | Other Function | Power-on, Timing boot, Wake on LAN, PXE boot, watchdog (level 0-255), TPM2.0 security encryption | |
Power Supply | ||||
Power Supply | 1x4Pin Phoenix terminal power supply, DC 12V~24V wide voltage input | Application | Industrial Automation, Medical, Logistics &Transportation, Warehousing, e-education and other fields. | |
Next-Gen Memory Architecture: Supporting up to 64GB of DDR5 4800MHz SODIMM RAM, this unit provides the high bandwidth necessary for real-time edge AI and complex automation algorithms.
Quad-LAN Network Redundancy: Equipped with 3x Intel i210 LAN and 1x Intel i219 LAN, the system supports vPro (on LAN1) for advanced remote management and secure network isolation.
Hybrid Storage Flexibility: The internal architecture supports an M.2 SSD, MSATA SSD, and a Mini PCIE slot concurrently, allowing for high-speed boot drives alongside expansive data storage and wireless modules like WiFi or 4G.
Dual 4K Visual Interfaces: Featuring 2x DisplayPort (DP), the XP-512 supports synchronous or asynchronous dual displays, perfect for multi-window industrial monitoring.
Processor: Intel 12th Gen Alder Lake U Series Deca-Core (Core i7 capable).
Chassis: Rugged all-aluminum alloy with vertical "Book Type" fanless cooling.
USB Connectivity: 4x High-speed USB 3.0 ports for rapid peripheral data transfer.
Power Input: Wide-range DC 12V-24V input with a secure 4-pin connector.

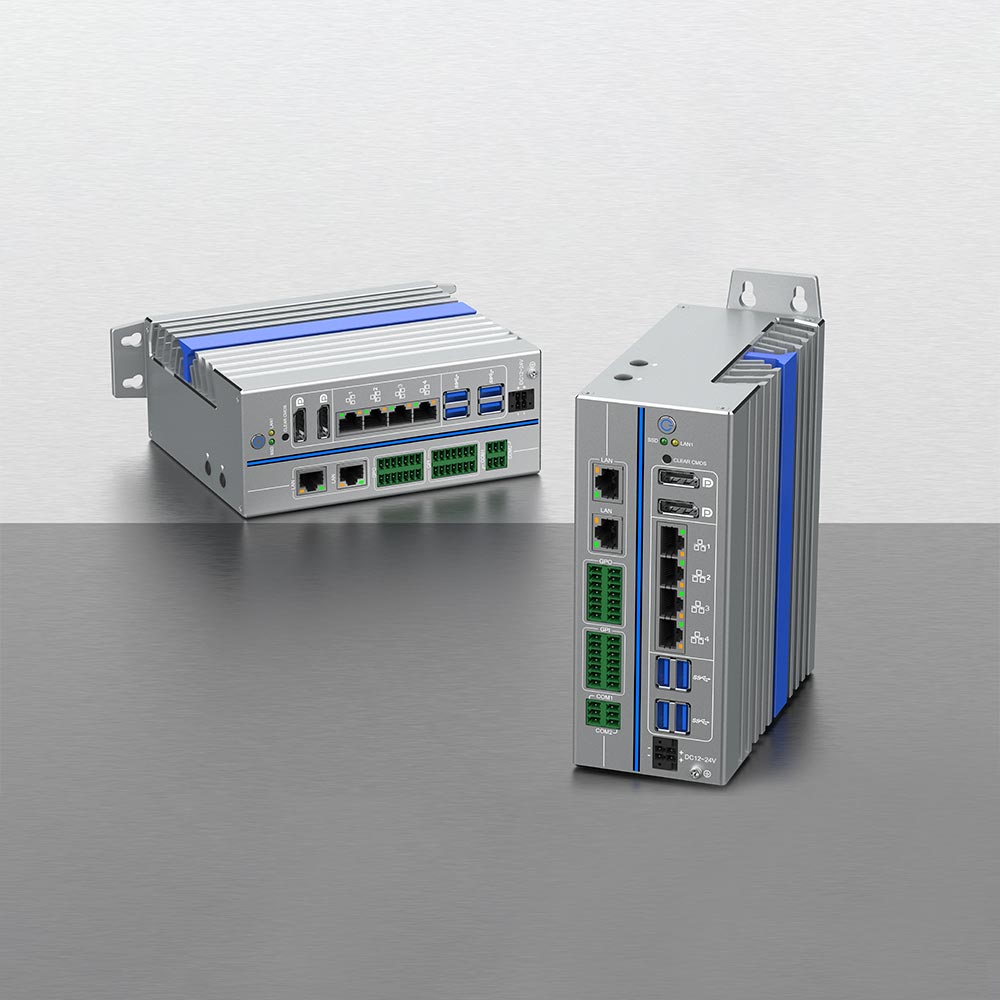

Optional Extensions: Flexible modular support for CAN bus, COM ports, GPIO, 4G, and WiFi/Bluetooth.

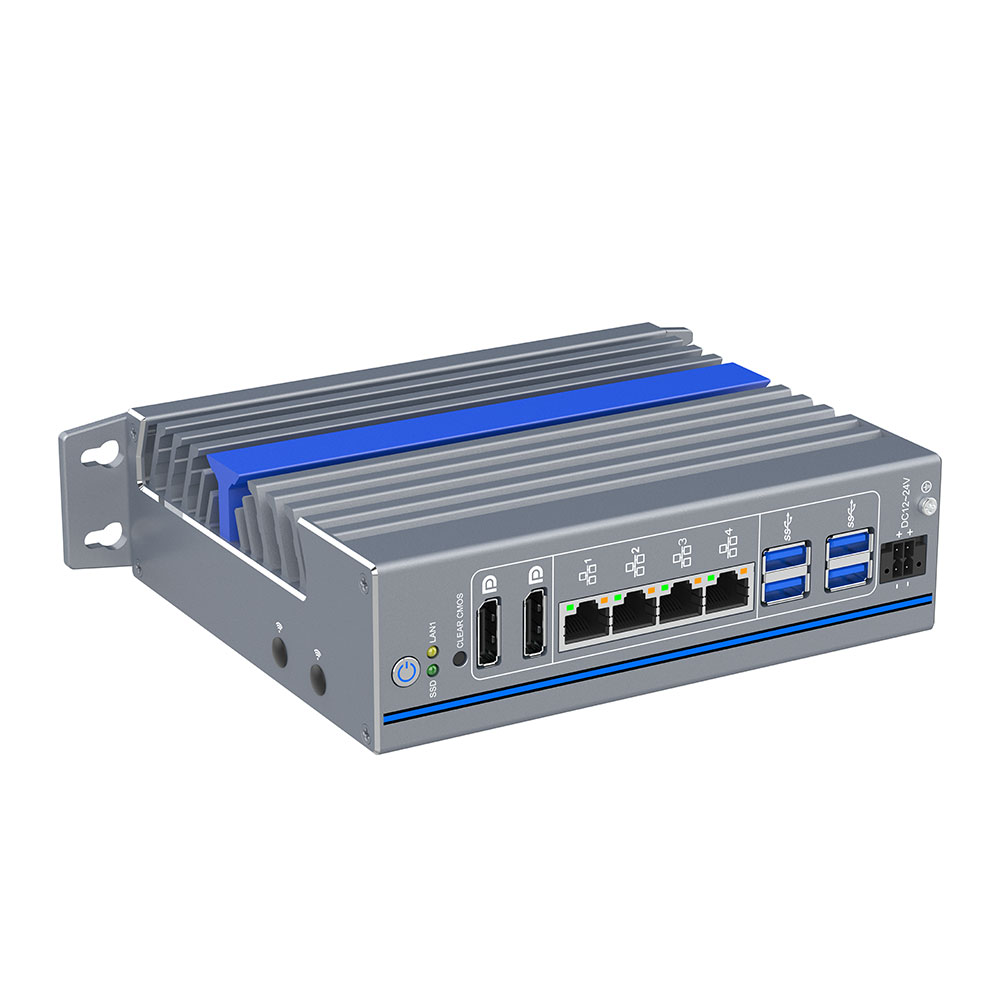

Advanced Robotics & Machine Vision: The high-speed DDR5 memory is critical for processing high-frame-rate image data.
Smart Grid & Energy Gateways: vPro support and quad LAN make it perfect for secure remote monitoring in power stations.
Factory Automation Integrators: The slim Book Type design is optimized for DIN-rail mounting inside standard electrical cabinets.
IoT Infrastructure Providers: Buyers needing a future-proof embedded PC that supports 4G/WiFi expansion and high-speed storage simultaneously.
Mounting & Thermal Management: Utilize the vertical mounting brackets for cabinet installation. The fanless design relies on natural convection; ensure the aluminum fins are clear of obstructions.
Remote Management: Configure Intel vPro on LAN1 to allow IT teams to troubleshoot, update, or repair the system even when the OS is unresponsive.
Expansion Configuration: Use the "Optional Extensions" to tailor the I/O for your specific fieldbus needs, such as adding CAN for automotive testing or GPIO for sensor arrays.
Maintenance: As a fanless system, internal cleaning is unnecessary. Periodically check cable connections at the DC 12V-24V terminal for tightness.
Compliance & Certification: This product is fully certified with CCC, CE, FC, and RoHS.
Industrial Partnership: As part of the Intel IoT Solutions Alliance, YANLING ensures long-term supply cycles and specialized technical support for industrial projects.
The XP-512 is a powerhouse of memory and connectivity. By combining the Intel Alder Lake Deca-Core architecture with DDR5 4800MHz speed and a fanless Book Type design, it is built to anchor the most demanding industrial workflows. Elevate your industrial control today. Contact YANLING Sales for a bulk quote or to discuss your custom I/O requirements for the XP-512!
