Detailed Product Description

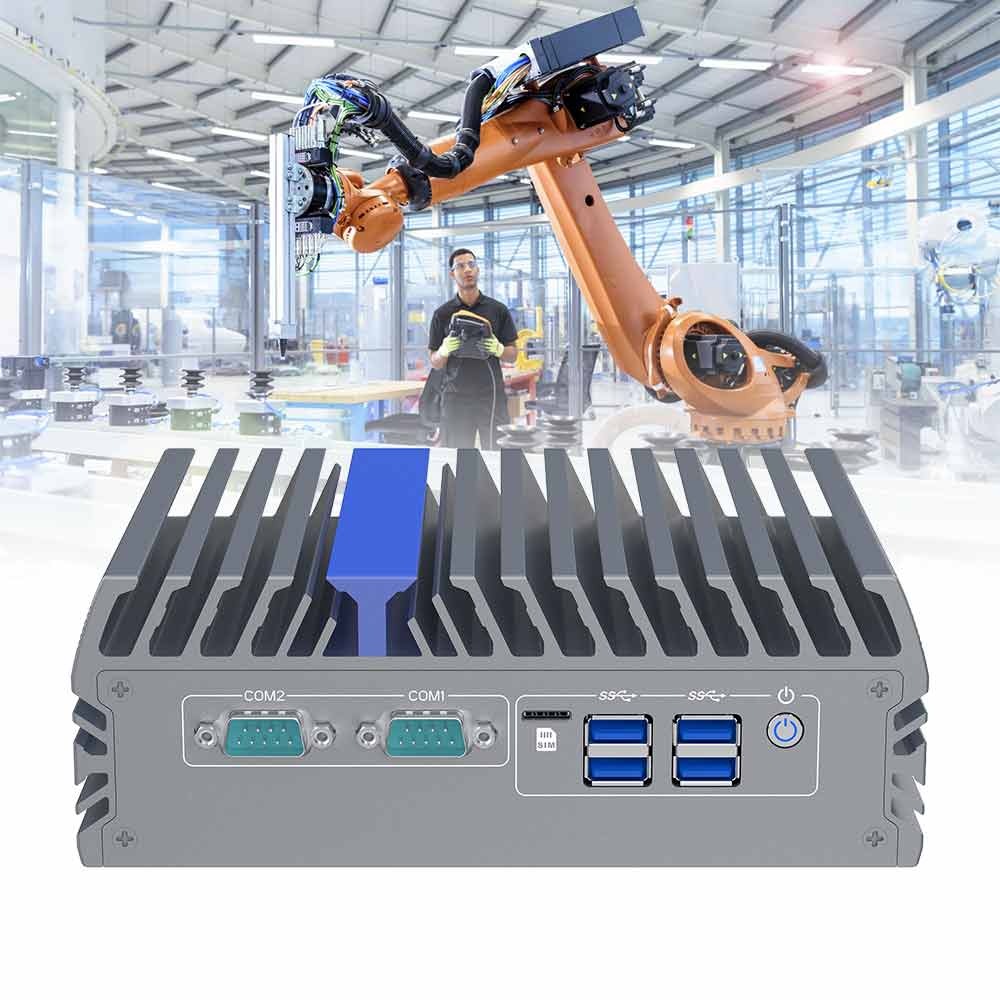

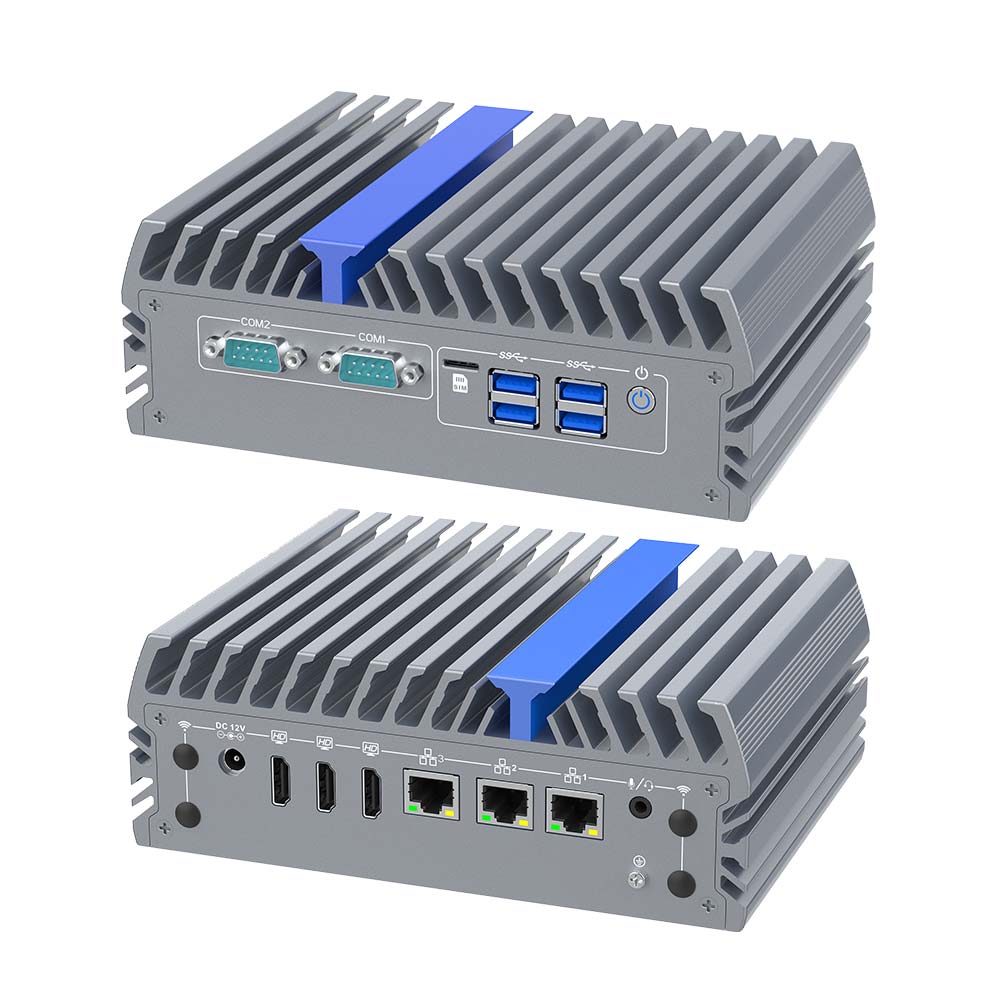

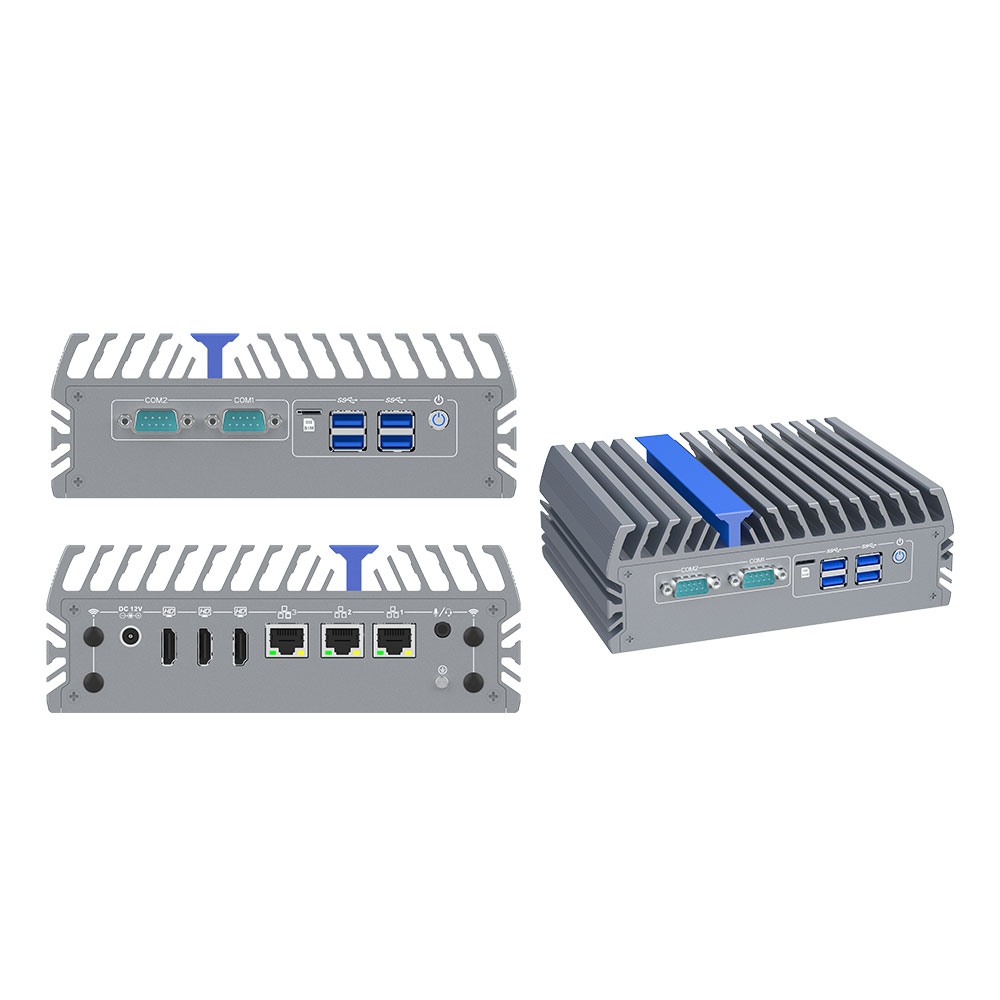

The 2.5G LAN Core i7 Industrial Mini PC (Model: IEXP-502) is a flagship embedded solution engineered for high-bandwidth data processing and mission-critical reliability. Powered by the Intel 12th Gen Core i7 Processor, this unit delivers workstation-class performance in a compact, fanless form factor. Designed for the future of Industrial IoT, it integrates 3x Intel i226-V 2.5G Ethernet ports, providing the massive throughput required for machine vision, real-time AI analytics, and high-density network gateways.
Specifications of 2.5G LAN Core i7 Industrial Mini PC | ||||
Parameter | Storage | |||
Processor | Intel Core i3 1215U (6 cores 8 threads, Turbo 4.4 GHz) | M.2 | 1xM.2 2280 M-key slot(Only support NVME) | |
Intel Core i5 1235U (10 cores12 threads, Turbo 4.4 GHz) | SATA | 1x2.5 inch HDD | ||
Intel Core i7 1255U (10 cores 12 threads, Turbo 4.7 GHz) | Expansion | |||
Chipset | Alder Lake | WIFI | 1xM.2 2230 E-key slot (support WIFI, BT) | |
Memory | 1xDDR5 4800 SODIMM, max 32 GB | 4G/5G | 1xM.2 3052 B-key slot (USB3.0 signal), External SIM card slot | |
Graphics Card | Extensible | 2xUSB2.0, 4xpin GPIO (Standard NOT included) | ||
Graphics card | Intel(R) UHD Graphics | |||
Display | 3xHDMI, synchronous/asynchronous triple display, (Resolution 4096x2160@ 60Hz) | Dimension | ||
Size | 186x140x66 mm/18.6x14x6.6 cm/ 7.3x5.5x2.6 inch | |||
Network | Weight | 1.53 kg 1530g 3.4 lb | ||
Lan Port | 3xIntel i226-V 100/1000/2500M LAN | Installation method | VESA, Wall mount, DIN-rail (optional) | |
I/O | Environment | |||
USB | 4xUSB3.1 | Temperature | -20℃~ +50℃, Surface air flow | |
COM | 2xCOM(RS232/485 optional) | Humidity | 5%~95% Non-condensing state | |
Audio | 1xLine-out / Mic Two-in-one | Other Function | Power-on, Timing boot, Wake on LAN, PXE boot, watchdog (level 0-255), TPM2.0 security encryption | |
Power Supply | ||||
Power supply | 1x DC(5.5*2.5mm), support 12V input | Application | Industrial Automation, Medical, Logistics & Transportation, Warehousing, e-education and other fields. | |
Intel 12th Gen Core Architecture: Leverages the power of hybrid computing to handle complex industrial algorithms with high efficiency.
Fanless Thermal Engineering: The all-aluminum alloy structure acts as a high-efficiency heat sink, ensuring 24/7 operation without the risk of mechanical fan failure or dust ingestion.
3x Intel i226-V 2.5G LAN: This 2.5G LAN Core i7 Industrial Mini PC breaks the gigabit bottleneck, offering 2.5x faster data transfer speeds for lag-free industrial communication.

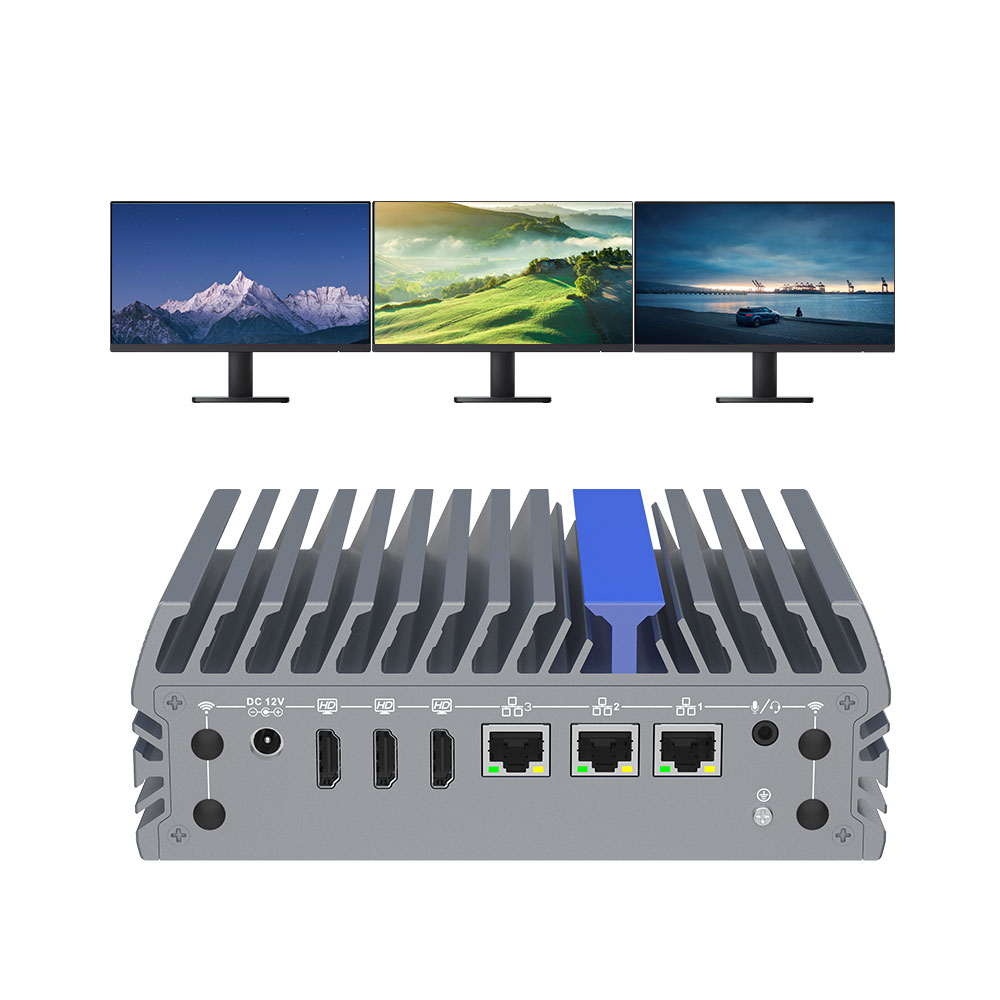

3x HDMI Support: Equipped with three HDMI ports, supporting synchronous and asynchronous triple display at 4K resolution. This is ideal for multi-screen monitoring stations and advanced digital signage.
Triple M.2 Slots: Architected to support SSD + WiFi + 4G/5G modules simultaneously, ensuring global connectivity and high-speed local storage.

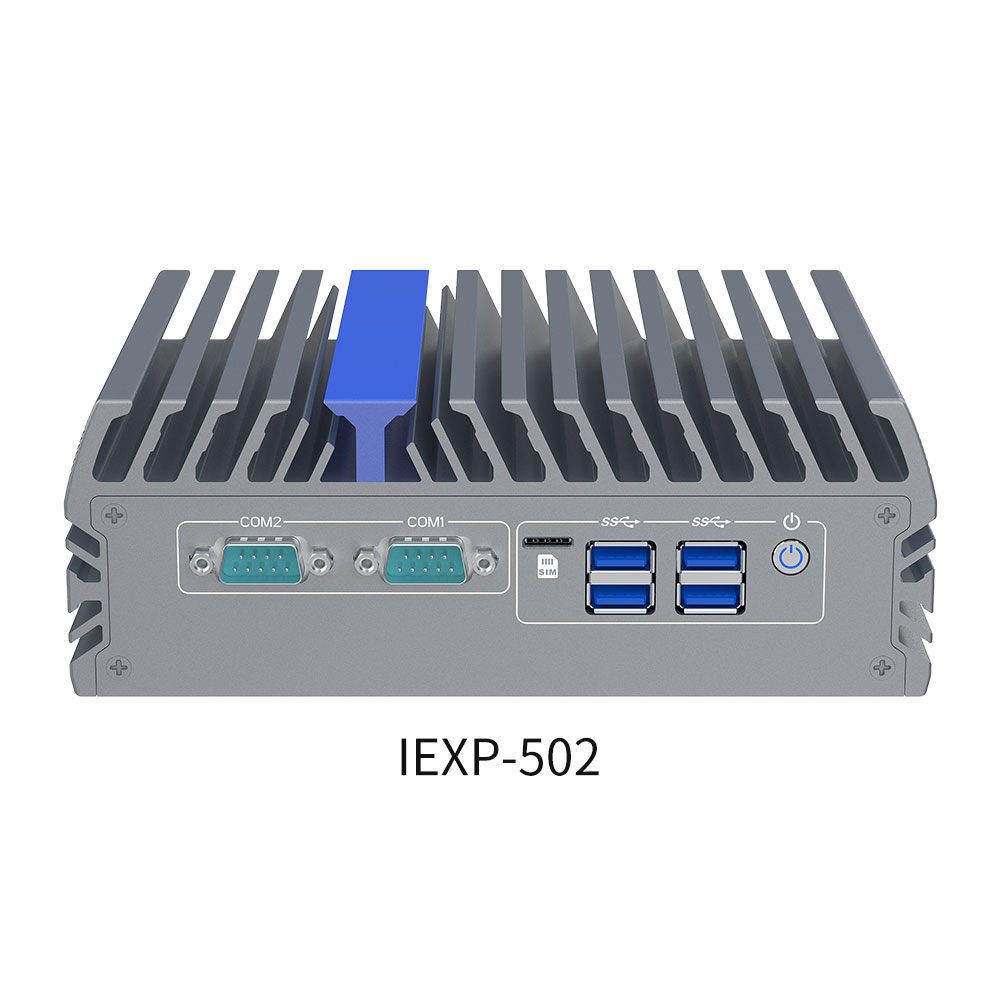

Industrial I/O: Includes 2x COM (RS232/485 optional) and 4x USB 3.1 ports for seamless integration with legacy and modern peripherals.
Deployment: The unit can be mounted in cabinets or on desks; its rugged design supports a wide range of industrial environments.
Power Flexibility: For environments with unstable power, an optional 9~36V wide voltage module is available to protect internal components.
Multi-Display Setup: Connect up to three displays via HDMI for independent task management (Asynchronous mode) or mirrored content (Synchronous mode).
I/O Customization: Users can expand functionality via optional GPIO (4 pin), CAN bus, or additional USB 2.0 modules based on specific project requirements.
This 2.5G LAN Core i7 Industrial Mini PC is the ultimate tool for engineers and system integrators who demand zero-compromise performance. By combining the Intel 12th Gen power with 2.5G high-speed networking, it enables:
Real-time Edge AI: Processing data locally with minimal latency.
Enhanced Reliability: Eliminating downtime through fanless, solid-state engineering.
Future-Proofing: Supporting 5G and high-bandwidth Ethernet standards.
