Product Details
| Place of Origin: | Industrial Computer Manufactur |
|---|---|
| Brand Name: | YANLING |
| Certification: | CCC, CE, ROHS, ISO9001 |
| Model Number: | ITPC-C150 |
Payment & Shipping Terms
| Min Order: | 10 Units |
|---|---|
| Price: | $ Customized |
| Packaging: | Each pc for one neutral box |
| Delivery Time: | 3~5 Working Days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 10000 Pcs/Month |
Detailed Product Description

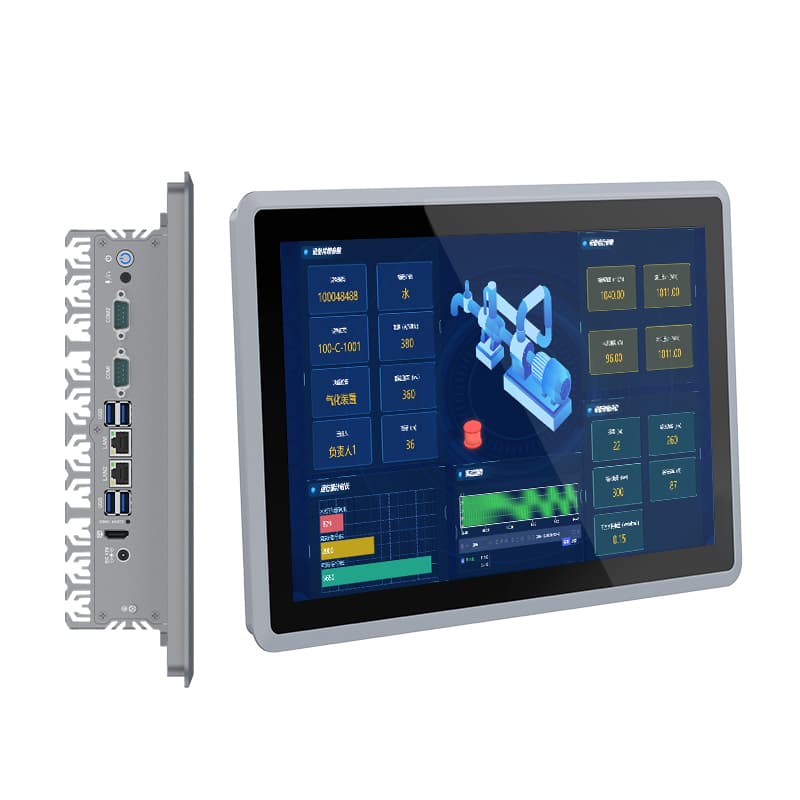

The IP65 waterproof industrial all-in-one computer (Model: ITPC-C150) is a high-performance embedded solution built with a rugged all-aluminum alloy structure and a fanless cooling system. It is designed to thrive in demanding environments, featuring a 15-inch TFT-LCD with a full-flat front panel that provides IP65-rated protection against dust and water. Powered by a range of processors from Intel Celeron J1900 up to 8th Gen Intel Core i5, it supports up to 32GB DDR4 memory for seamless industrial multitasking.

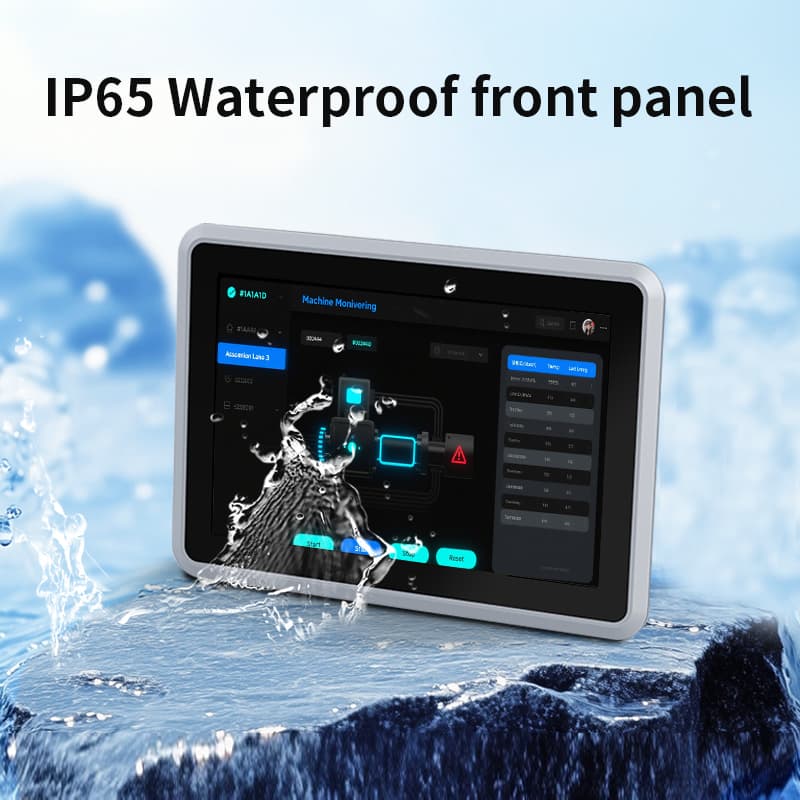

Achieving a reliable IP65 waterproof rating requires a precise synergy between industrial structural engineering and specialized material science. At its core, this industrial all-in-one computer utilizes a full-flat front panel design integrated with a high-density, automotive-grade waterproof sealing strip. This creates a seamless barrier that prevents high-pressure water jets and fine dust particles from penetrating the internal circuitry. The chassis is constructed from a rugged all-aluminum alloy, which is not only corrosion-resistant but also precision-milled to ensure tight tolerances where the screen meets the frame. Technically, the "6" in IP65 signifies total protection against dust ingress, while the "5" confirms protection against water projected by a nozzle from any direction. This is further supported by the fanless cooling architecture, which eliminates the need for external ventilation holes—the most common entry point for moisture in standard PCs. By dissipating heat through the aluminum casing itself, the system remains internally sealed. Additionally, the resistive or capacitive touch screens are bonded using industrial adhesives that maintain their elasticity and sealing properties even under extreme temperature fluctuations ranging from -20°C to +60°C, ensuring the computer remains a fortress against liquid damage in the harshest factory wash-down environments.
Processor Options
Display
Touch Interface
Connectivity
Rugged BuildOperates in temperatures from -20°C to +60°C (with SSD) and supports wide voltage DC 9~36V input. |  |
Detailed Specification of IP65 Waterproof Industrial All-in-One Computer | |
Model | ITPC-C150 |
Color | Gray (color customizable) |
Material | Aluminum alloy shell |
Processor | Intel Celeron J1900 |
3th /4th /5th Gen Intel Core i3/i5 (specific model is subject to shipment) | |
6th /7th /8th Gen Intel Core processor (specific model subject to shipment) | |
Memory | DDR3/DDR4 laptop memory slots Max.32GB (see the order information at the end of this page for details) |
BIos | AMI BIOS |
Display Chip | Intel UHD Graphics |
Display Port | 1*HDMI, 1*LVDS (LVDS has been connected to the LCD screen, synchronous/asynchronous dual display) |
Storage | 1*MSATA hard disk |
Expansion slot | 2*Mini PCIE slots (support 1*WIFI/Bluetooth/3G/4G with SIM card holder, support 1* wifi) |
I/O Port
| 1*HDMI 2*COM (COM1-2 RS232/485, Customizable 6 COM), 1*Power Button, |
1*DC, 1*audio two-in-one, 4*USB | |
2*Realtek Gigabit network ports, support network wake up /PXE | |
Other Functions | Power on, timer on, watchdog (0~255 level) |
Expansion options | (Standard shipment does not include this interface): GPIO (4 channels), 4*COM, 2*USB) |
LCD
| Screen size: 15 inch TFT-LCD; screen brightness: 350 cd/m2; viewing Angle: full Angle |
Screen ratio: 4:3; resolution: 1024 * 768; | |
Touch screen | Resistive high sensitivity touch screen (default), life up to 50 million times; (optional capacitive screen) |
Speaker | 2*8Ω2W speakers |
Input Voltage | DC 12V input, customizable DC 9~36V wide voltage input |
Work Temperature | 0℃ ~ +50℃ (hard disk), -20℃ ~ +60℃ (solid state drive), surface air flow |
Work Humidity | 5% ~ 95% non-condensable state |
Dimension | 366 * 290 * 77 mm |
Embedded size | 355 * 279 mm |
Weight | 4.6 kg |
Application | Industrial automation, medical, logistics and transportation, warehousing, machine vision and other fields |
An IP65 waterproof industrial all-in-one computer serves as the central "brain" for harsh environment operations. It executes complex automation software while protecting internal components from external contaminants. Its dual Gigabit network ports enable reliable data transmission for IoT gateways, while the multiple COM ports allow for direct communication with legacy industrial hardware and sensors. The fanless design ensures it can run 24/7 without drawing in metal shavings or dust that would normally destroy consumer-grade electronics.
 | Applications of IP65 Waterproof Industrial All-in-One Computer
|
YANLING offers comprehensive customization and support for the ITPC-C150 series:
Hardware Customization: Customizable shell colors and I/O expansion (GPIO, extra USB/COM ports).
Voltage Flexibility: Standard 12V DC input can be upgraded to a 9~36V wide voltage module for unstable power environments.
OS Compatibility: Full support and driver verification for Windows 7, Windows 10, and Linux.
Reliability Testing: Each unit undergoes rigorous burn-in and environmental testing to ensure long-term stability.
Embedded Mounting: Use the included 4 embedded installation clips to secure the unit into a panel cutout of 355 * 279 mm.
Wall/Desktop Mount: Supports standard VESA mounting (100*100mm) for wall or three-dimensional bracket installation.
Touch Screen Calibration: If touch response is inaccurate, use the built-in OS calibration tool. For resistive screens, ensure the edge of the bezel is free from debris.
Network Connectivity: If LAN is not detected, check the Realtek Gigabit drivers in the Device Manager. The dual LAN setup allows for redundant failover if one port fails.
BIOS Configuration: If the PC fails to start after a power outage, enter the AMI BIOS to enable "Power On" (Auto-start) settings.
Expandability: To add 4G or specialized WIFI, use the Mini PCIE slots located internally (professional assistance recommended for card insertion).
The ITPC-C150 is more than just a PC; it is a durable, high-performance tool built to withstand the rigors of the modern industrial landscape. Whether you need the efficiency of the Celeron J1900 or the power of an 8th Gen i5, this IP65 waterproof industrial all-in-one computer delivers unmatched reliability.
Ready to upgrade your industrial infrastructure? Contact YANLING today for a custom quote on the ITPC-C150 and secure your factory’s future!
