YANLING Industrial Computer Technology (Shenzhen) Co., Ltd
Product Details
| Place of Origin: | Industrial Computer Manufactur |
|---|---|
| Brand Name: | YANLING |
| Certification: | CCC, CE, ROHS, ISO9001 |
| Model Number: | IEXP-304 |
Payment & Shipping Terms
| Min Order: | 100 Unit |
|---|---|
| Price: | $ Customized |
| Packaging: | Each pc for one neutral box |
| Delivery Time: | 3~5 Working Days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 10000 Pcs/Month |
Detailed Product Description

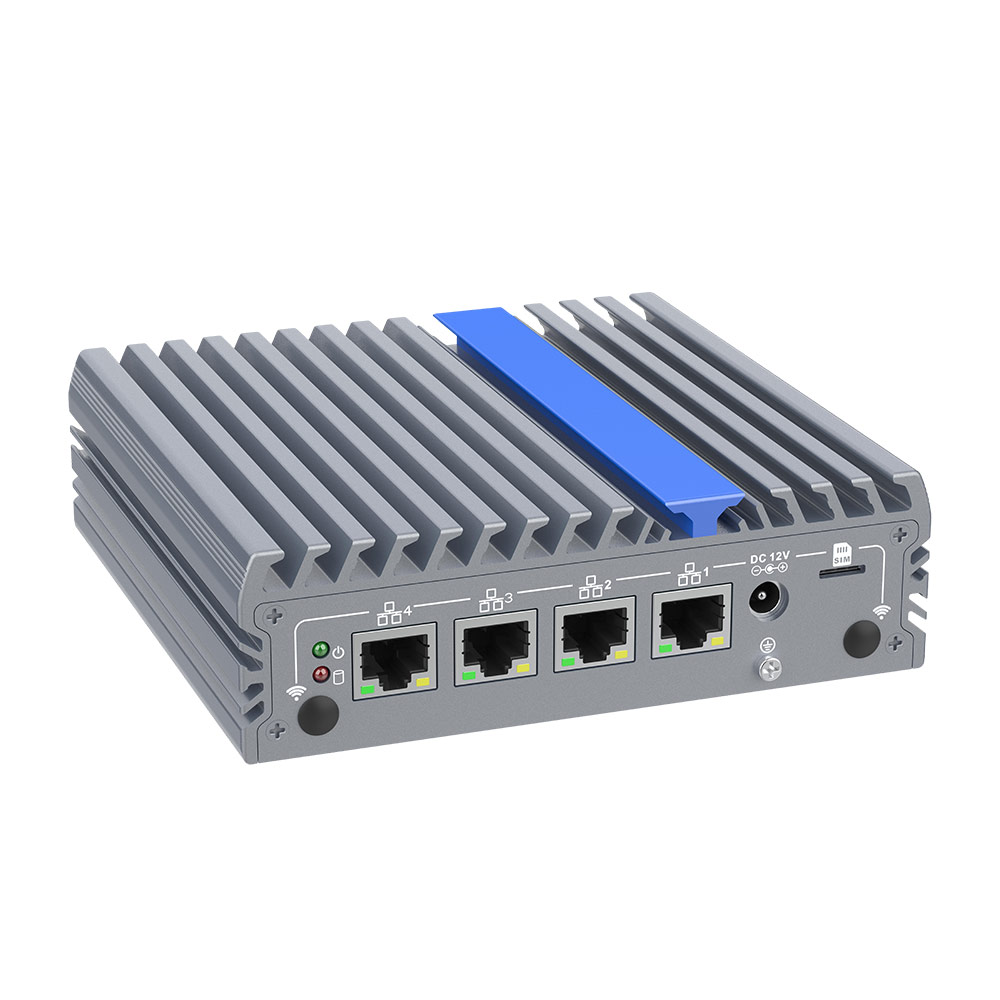

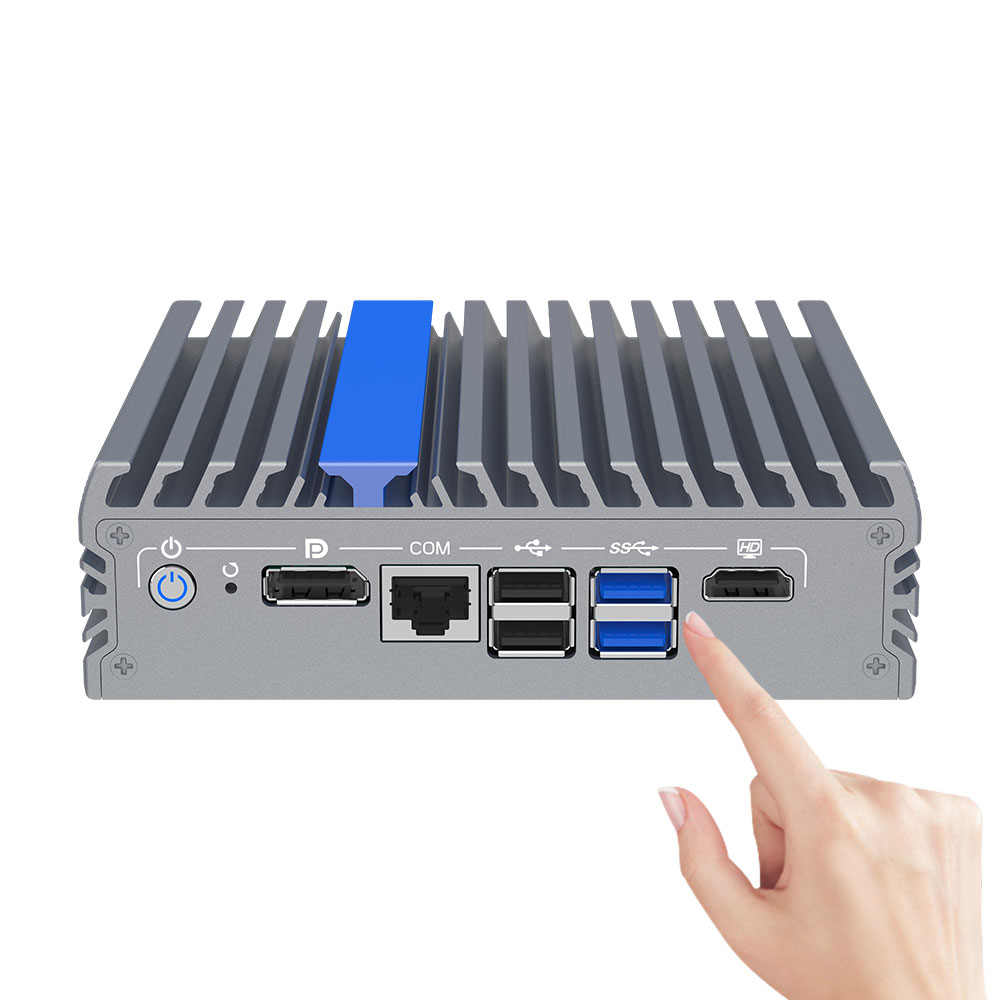

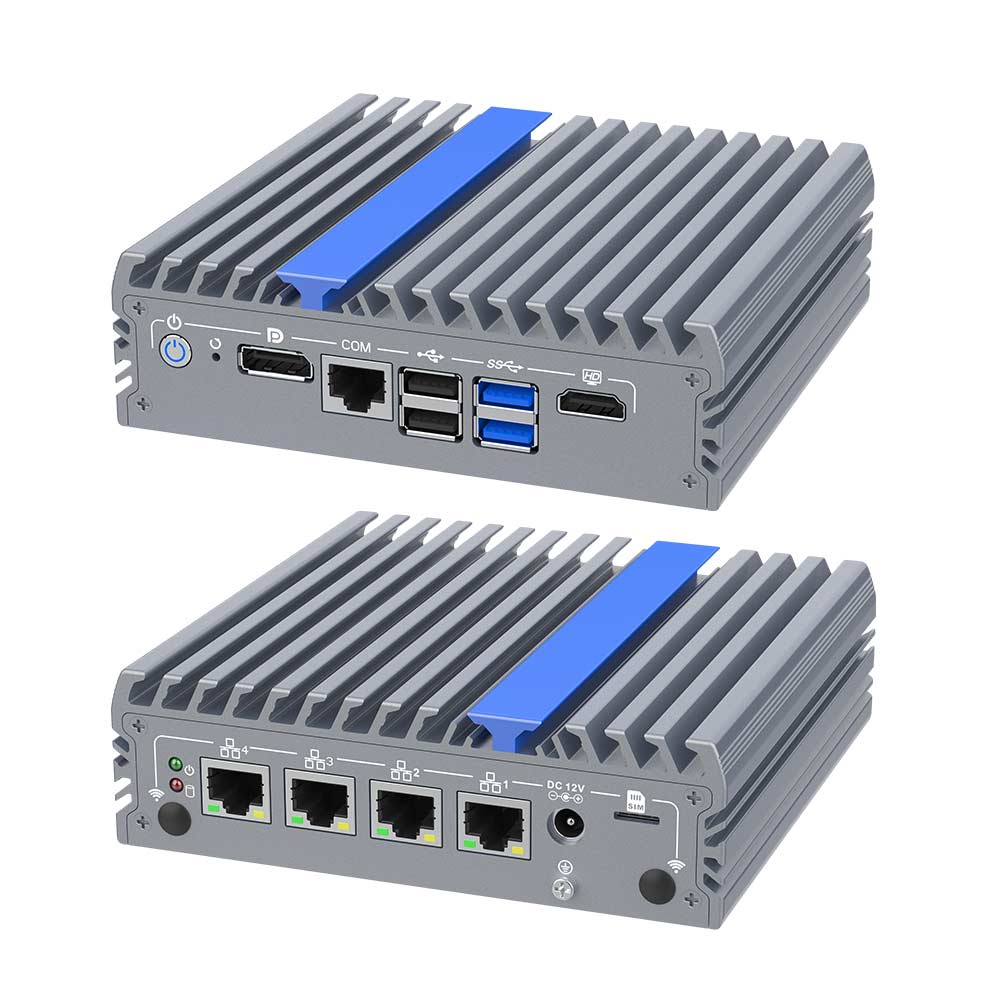

Small industrial computer (Model: IEXP-304) is a high-performance network security platform and server designed for modern edge computing requirements. Encased in a rugged all-aluminum alloy structure, this unit utilizes a fanless cooling design to ensure silent and maintenance-free operation in harsh environments. It is powered by the Intel 12th Generation Alder Lake-N processor, providing efficient computational power for high-speed data processing. With a robust I/O array featuring 4*Intel i226-V 2.5G LAN ports, dual 4K display support, and diverse wireless expansion capabilities, this small industrial computer serves as a reliable gateway for secure network communications and industrial IoT applications.
The integration of 2.5G LAN ports provides a significant bandwidth upgrade over standard Gigabit Ethernet, essential for a small industrial computer acting as a high-speed firewall or network server. The Intel i226-V controllers ensure low latency and high reliability for mission-critical packet handling.
Utilizing the latest 12th Gen architecture offers superior energy efficiency and improved performance-per-watt. This allows the small industrial computer to handle complex tasks like AI at the edge or sophisticated network encryption without excessive heat generation.
The fanless design eliminates the most common failure point in industrial hardware—mechanical fans. The all-aluminum chassis acts as a high-efficiency heat sink, protecting internal components from dust, vibration, and mechanical wear, which is vital for long-term 24/7 reliability.

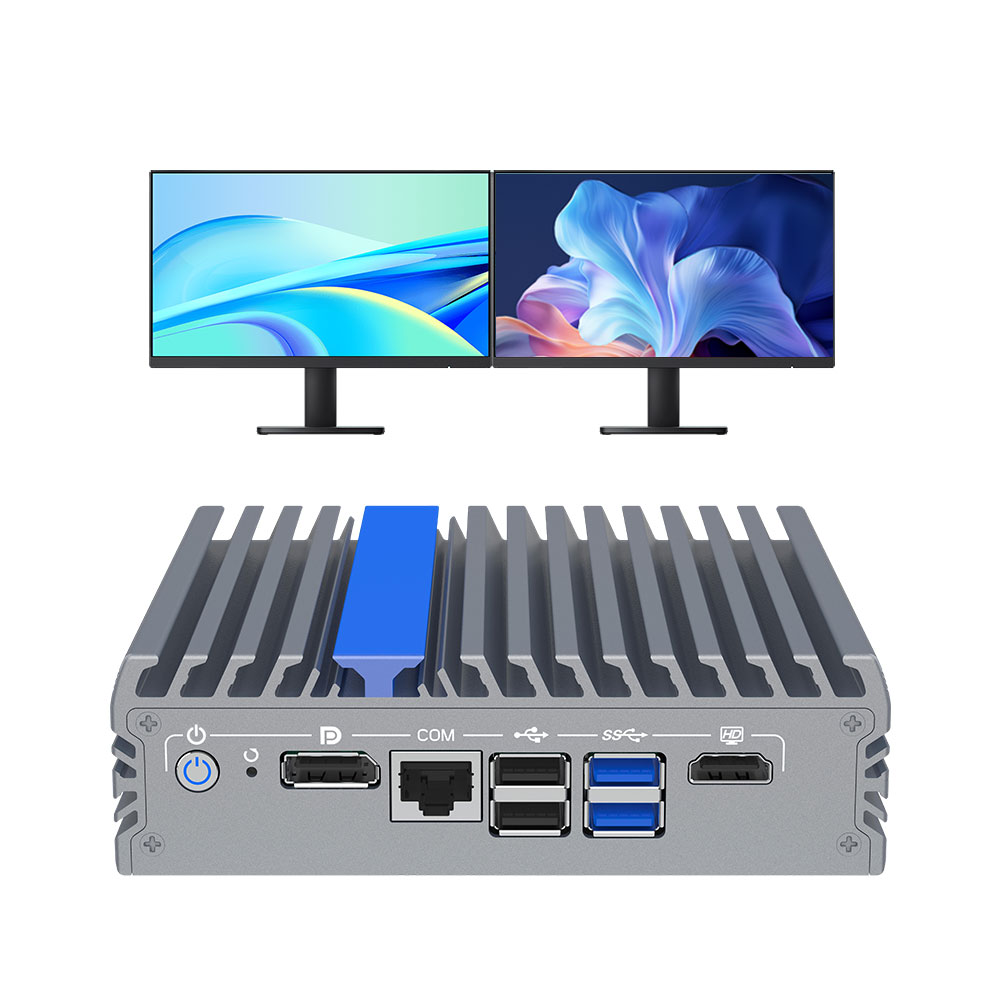

Support for 4K dual display through HDMI and DP ports enables high-definition monitoring and multi-tasking interfaces. This is a critical advantage for operators who need to visualize complex network data or industrial processes simultaneously in high resolution.
Feature | Technical Specification |
Model | IEXP-304 (Network Security Platform) |
Processor | Intel® 12th Alder Lake-N processor |
Structure | All-aluminum alloy, fanless cooling design |
Network | 4 * Intel i226-V 2.5G LAN |
Display | 1HDMI + 1DP (Supports 4K HD dual display) |

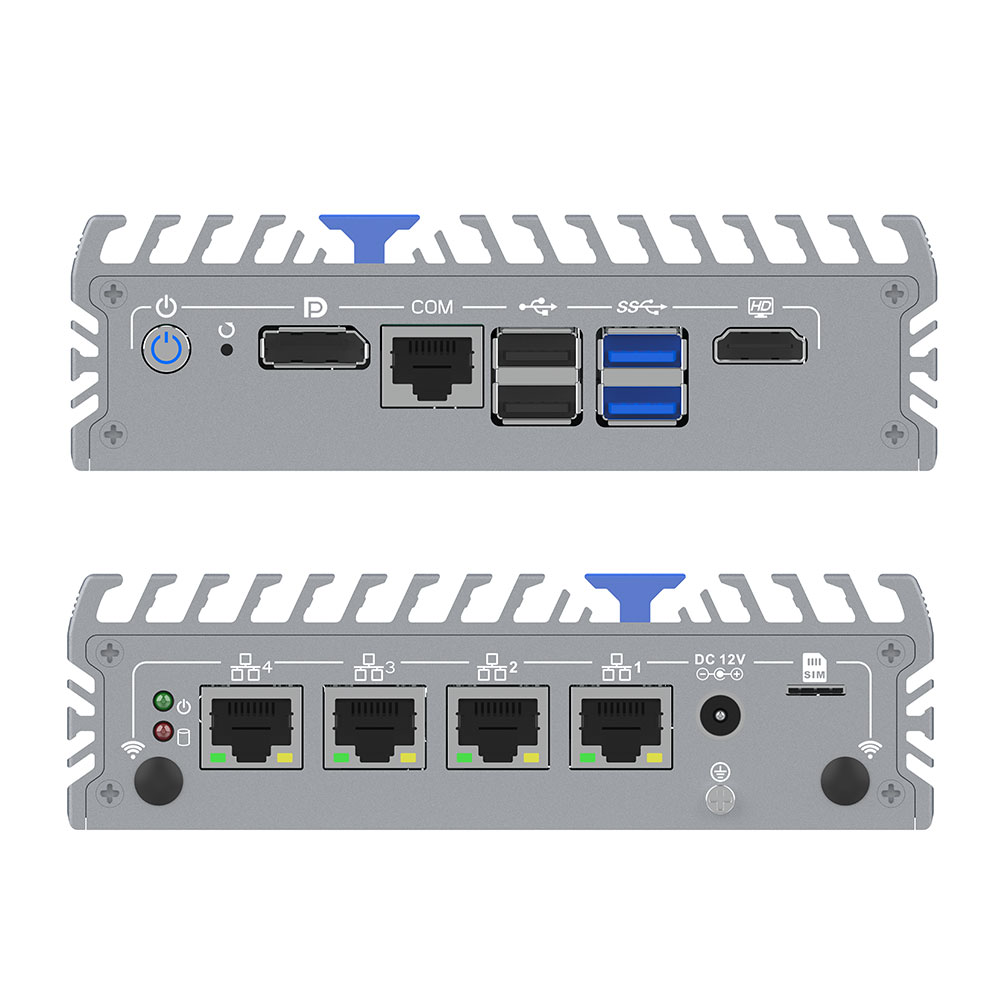

I/O Ports | 1RJ45 COM (Console), 1USB 3.0, 3USB 2.0, 1SIM slot |
Expansion | 3*M.2 slots (Supports SSD + WIFI + 4G/5G simultaneously) |
Optional | CAN card, 4G/5G Module, WIFI/BT, Extra USB |
Power | DC 12V Input |
Buttons | Power SW, Reset SW |
Indicators | Power LED, HDD LED |
Who Needs It?Network Engineers
Industrial Automation Specialists
IT Solution Providers

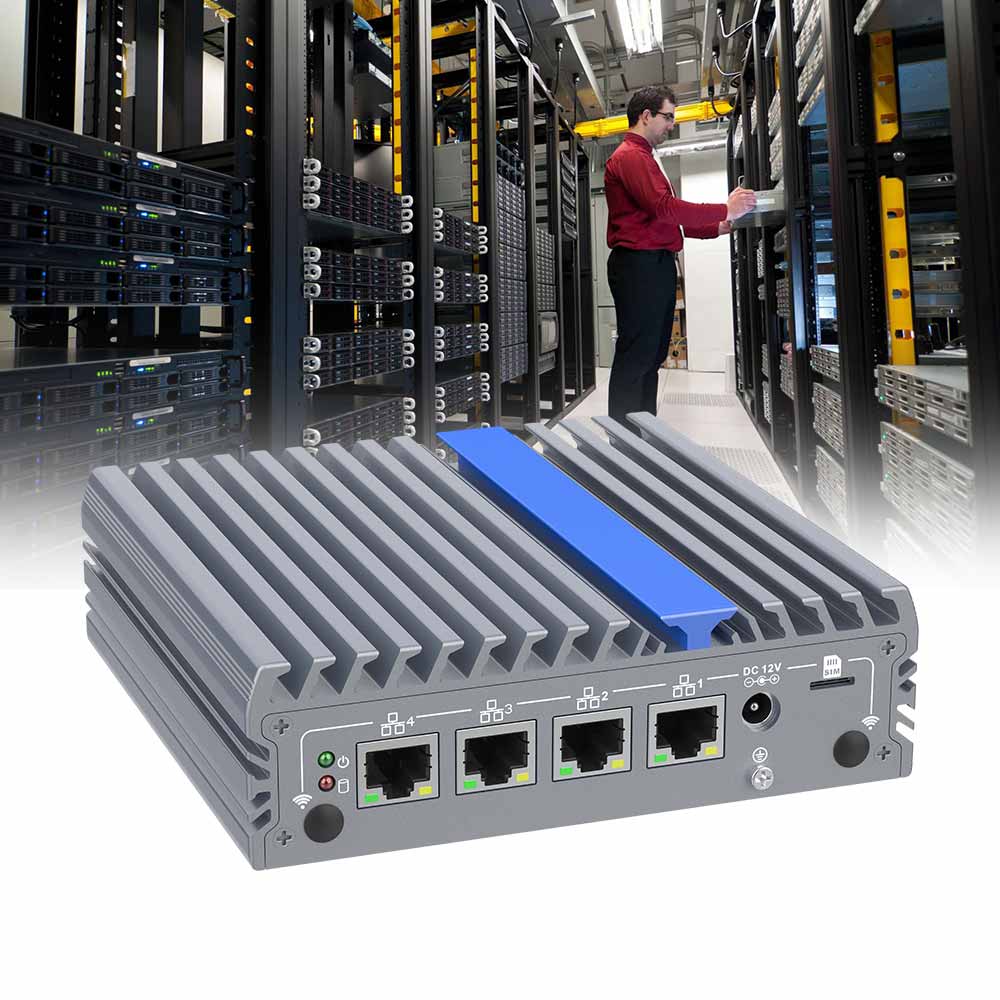

| Where to Use?Network Security
Smart Factories
Remote Workstations
|
Connectivity: Ensure the number of LAN ports and the speed (2.5G) meet your network throughput requirements.
Expandability: Check if the device supports simultaneous SSD and wireless modules (4G/5G/WIFI) via multiple M.2 slots.
Thermal Management: Verify the fanless chassis build quality to ensure it can handle your local ambient temperature.
Material Integrity: The chassis should be high-grade all-aluminum for optimal heat dissipation.
Certification: Look for CE, FCC, CCC, and RoHS marks to ensure global safety and environmental standards.
Network Stability: Verify the use of genuine Intel i226-V controllers for guaranteed 2.5G performance.
Customization: Optional extensions for CAN, 4G, 5G, and WIFI/BT to fit specific project needs.
Expert Consultation: Assistance in choosing the right 12th Gen processor configuration for your specific network server load.
Global Compliance: Every IEXP-304 is manufactured under strict quality control and holds major international certifications.
A: The IEXP-304 features a dedicated RJ45 COM (Console) port on the front panel. You can connect via a console cable to manage the device at the hardware level, which is standard for network servers.
A: Yes. The device supports 3*M.2 slots, specifically designed to support SSD, WIFI, and 4G/5G modules at the same time, providing ultimate wireless flexibility.
A: The device includes a physical Reset SW on the front panel for immediate hardware reboots. Additionally, you can monitor system status via the Power and HDD LEDs.
A: Absolutely. The all-aluminum alloy structure is engineered specifically for passive cooling, allowing the small industrial computer to run 24/7 without the risk of fan failure or dust-related overheating.
The IEXP-304 is the definitive small industrial computer for high-speed networking and secure edge applications. By combining Intel 12th Gen efficiency with quad 2.5G LAN and a rugged fanless build, it provides the performance and reliability required for Industry 4.0.
Empower your network today. Contact YANLING for wholesale pricing and customized IEXP-304 configurations!
