Fanless Industrial Edge Computers 2 Rs232 For Continuous 24/7/365 Operation

Fanless Industrial Edge Computers – Product Overview

The Nano-N3322 is a high-performance fanless industrial edge computer powered by Intel’s 12th Gen Core processors (i3 1215U / i5 1235U / i7 1255U). Built with a high-quality all-aluminum structure, it delivers silent operation, excellent heat dissipation, and long-term reliability. It supports three independent 4K displays via 3×HDMI ports, making it ideal for industrial control, edge computing, machine vision, robotics, and IoT gateway applications.

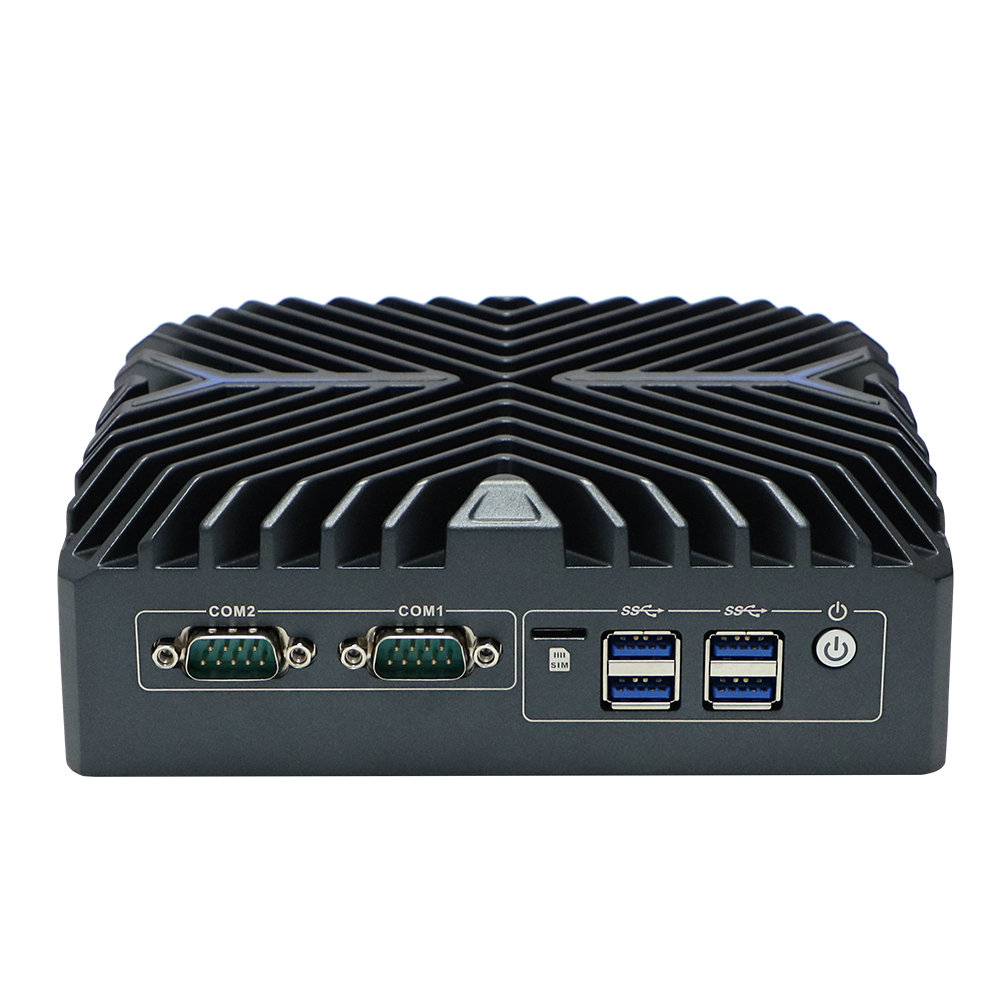

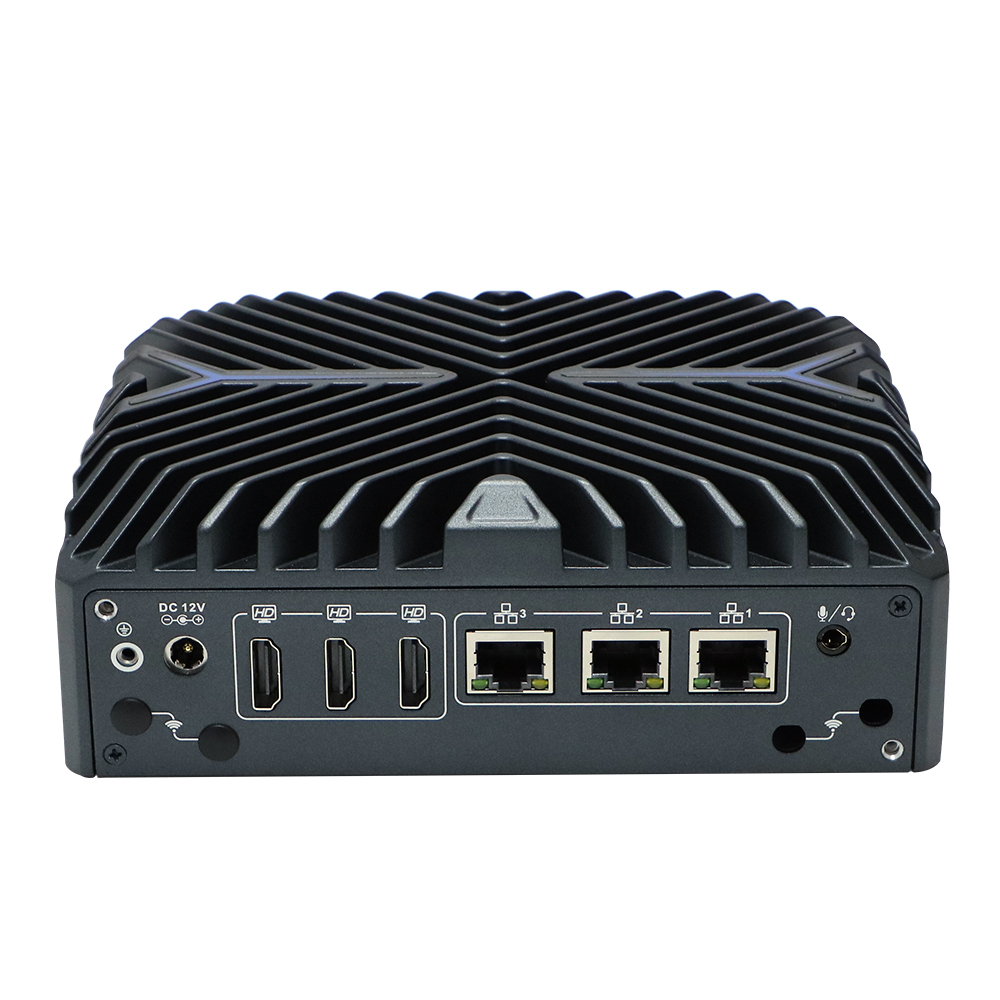

Fanless Industrial Edge Computers – Key Features Fanless & Rugged Design: All-aluminum enclosure ensures silent operation and durability in harsh environments. 12th Gen Intel Core Processors: Choose from Core i3/i5/i7 with up to 10 cores and 12 threads. Triple 4K Display Output: 3×HDMI ports support synchronous or asynchronous display up to 4096×2160. High-Speed Connectivity: 3×Intel 2.5G LAN ports, 4×USB 3.2, and 2×COM (RS232/485). Expandable Wireless & Cellular: M.2 slots for Wi-Fi/Bluetooth and 4G/5G with external SIM card slot. Rich Storage Options: 1×M.2 2280 NVMe slot (PCIe 4.0×4) and 1×2.5″ HDD/SSD bay. Advanced Management: Supports power-on timer, network wake-up, PXE boot, watchdog, and TPM 2.0 security.

Fanless Industrial Edge Computers – Technical Specifications

Fanless Industrial Edge Computers – Applications The Nano-N3322 is designed for demanding edge computing environments. Typical applications include: Industrial Control & Automation – PLC control, HMI, data acquisition Edge Computing – Real-time data processing at the network edge Robotics & AGV/ARM – Navigation and control systems Digital Signage – Triple 4K display for information kiosks

Fanless Industrial Edge Computers – Customization Services

We offer flexible customization options for the Nano-N3322 to meet your specific project needs:

1. Color Customization: Metallic grey is standard, other colors are freely customizable.

2. Processor Selection: Choose from Core i3 1215U, i5 1235U, or i7 1255U.

3. Memory & Storage: DDR5 capacity and SSD/HDD size can be configured per order.

4. I/O Expansion: Additional USB ports or COM ports available upon request.

5. Wireless Modules: Integrated Wi-Fi 6, Bluetooth, 4G, or 5G modules with antenna support.

6. OS Pre-installation: Linux, Windows 10, or Windows 11 available.

Fanless Industrial Edge Computers – Frequently Asked Questions (FAQ)

Q1: What fanless industrial PC configurations do you currently offer that could meet these specifications?

Based on the Nano-N3322 model, we offer three fanless configurations:

• Configuration 1: Onboard Intel Core i3 1215U (6 cores, 8 threads, turbo up to 4.4 GHz)

• Configuration 2: Onboard Intel Core i5 1235U (10 cores, 12 threads, turbo up to 4.4 GHz)

• Configuration 3: Onboard Intel Core i7 1255U (10 cores, 12 threads, turbo up to 4.7 GHz)

All configurations support 1×DDR5 5600 SODIMM (up to 32GB), 1×M.2 2280 NVMe slot, 1×2.5″ HDD, 3×HDMI 4K output, 3×Intel 2.5G LAN, 2×COM (RS232/485), 4×USB 3.2, and dual M.2 slots for Wi-Fi and 4G/5G.

Q2: What processor/chipset would you recommend for 24/7 continuous operation with these requirements?

For 24/7 continuous industrial operation, we recommend the Intel Core i5 1235U or i7 1255U configuration. Both offer higher core counts (10 cores, 12 threads) and better thermal performance, making them suitable for sustained workloads. The all-aluminum fanless design ensures reliable heat dissipation without moving parts, reducing failure risk in always-on environments.

Q3: Minimum order quantity and pricing for bulk orders?

Typically, MOQ for standard configurations is 1 unit, with bulk discounts available for orders above 10, 50, or 100 units. For accurate pricing based on your volume, please contact our sales team directly.

Q4: Lead time for delivery to the US at the 07306 zip code location?

Estimated lead time for standard Nano-N3322 units to ZIP code 07306 (USA) is typically 5–10 business days for production (if not in stock) plus 5–7 business days for international shipping. Please confirm with our sales team for current stock levels and exact lead time.

Q5: Do you offer customization options (additional USB, storage capacity)?

Yes, customization options are available:

• Additional USB: The front I/O already includes 4×USB 3.2. More USB ports may be available via expansion or custom request.

• Storage capacity: Supports 1×M.2 2280 NVMe SSD and 1×2.5″ HDD/SSD. Capacity can be customized based on your order.

• Other customizations: Chassis color (metallic grey standard, freely customizable), COM port mode (RS232/485), and 4G/5G module integration.

Q6: Warranty terms for 24/7 industrial use?

The Nano-N3322 includes a warranty card. Typically for industrial 24/7 use, we offer a 1 to 3-year limited warranty covering manufacturing defects. The fanless design and high-quality aluminum construction reduce failure rates. For exact warranty terms, including coverage for 24/7 operation, please contact our sales team.

Need More Help?

If you have additional questions or need a customized solution, please contact our technical support or sales team. We respond within 24 hours.
