Product Details
| Place of Origin: | Industrial Computer Manufactur |
|---|---|
| Brand Name: | YANLING |
| Certification: | CCC, CE, ROHS, ISO9001 |
| Model Number: | IBOX-205 Plus |
Payment & Shipping Terms
| Min Order: | 100 Unit |
|---|---|
| Price: | $ Customized |
| Packaging: | Each pc for one neutral box |
| Delivery Time: | 3~5 Working Days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 10000 Pcs/Month |
Detailed Product Description
This Intel Core i5 Industrial Computer (Model: IBOX-205 Plus) is a high-performance, ruggedized embedded system engineered for mission-critical reliability. Encased in a high-quality all-aluminum alloy chassis with an anodic oxidation surface, this unit is built to thrive in harsh environments where dust and debris would compromise standard systems. Powered by an Intel Core i5-4300U processor, it delivers powerful dual-core, four-thread performance with a turbo frequency of up to 2.9GHz, ensuring smooth operation for demanding industrial applications. With its diverse I/O layout featuring 6*COM ports, dual Intel Gigabit LAN, and support for synchronous or asynchronous dual displays via VGA and HDMI, the IBOX-205 Plus stands as a versatile hub for industrial automation, medical technology, and smart logistics.
The fanless architecture is the cornerstone of the IBOX-205 Plus. By eliminating mechanical fans, the system removes the most common point of failure—bearing wear and dust clogging. The all-aluminum structure acts as a massive heat sink, providing passive cooling that allows the device to operate silently 24/7 in environments ranging from 0℃ to +50℃ (or even up to +60℃ with industrial SSDs).
Unlike entry-level industrial PCs, this ipc industrial computer utilizes an Intel Core i5-4300U. This provides the computational overhead needed for edge computing, complex data processing, and high-definition video playback that Celeron-based models might struggle to handle.

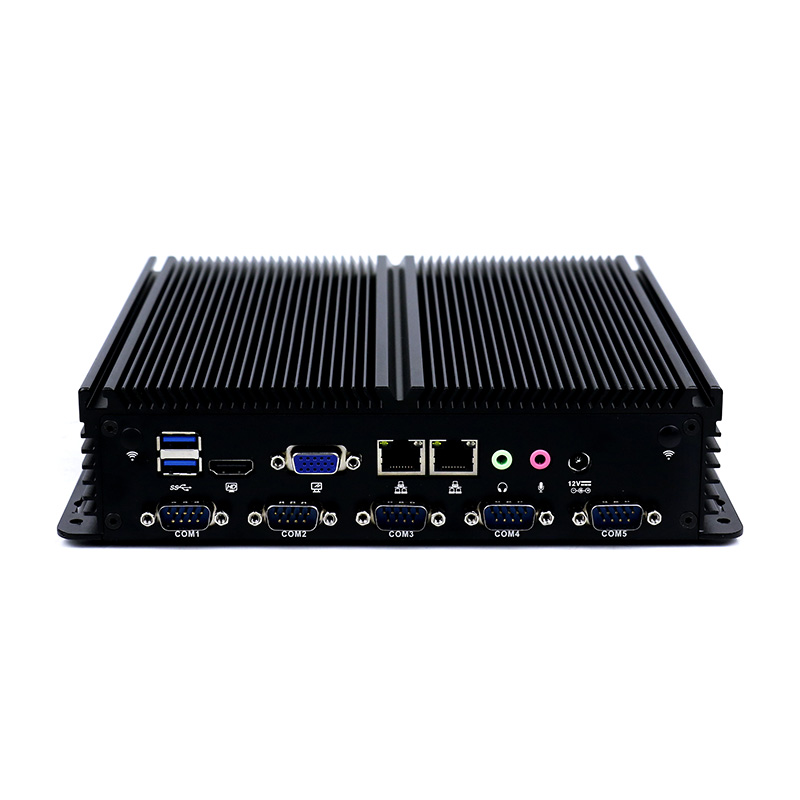

6*COM Ports
| Dual Intel i211-AT LAN
|
 |
Feature | Technical Specification |
Model | IBOX-205 Plus |
Processor | Intel Core i5 4300U (Dual Core, 1.9GHz, Turbo 2.9GHz) |
Memory | 1*DDR3L 1333/1600MHz SODIMM, Max. Support 8GB |
Graphics | Integrated Intel HD Graphics 4400 |
Storage | 1MSATA Slot, 12.5" HDD (Option for 2*2.5" HDD) |
I/O Interfaces | 6USB (42.0, 23.0), 6COM, 1VGA, 1HDMI, 2*Intel LAN |
Expansion | 2*MINI PCIE (Supports MSATA, WIFI/3G/4G, Embedded SIM) |
Network | 2*Intel i211-AT 1000M LAN |
Power Input | DC 12V Input |
Operating Temp | -20°C ~ +60°C (Industrial SSD), 0°C ~ +50°C (Commercial HDD) |
Structure | High-quality all aluminum, surface anodic oxidation |
Dimensions | 234 * 200 * 54mm; Weight: 2.0kg |
Industrial Automation & MES: Using the 6*COM ports to interface with factory floor PLCs and manufacturing execution systems.
Smart Medical Terminals: The silent fanless operation and i5 performance are perfect for operating room consoles and diagnostic imaging stations.
Intelligent Logistics & Warehousing: Handling high-speed data from barcode scanners and sorting systems via the dual Intel LAN ports.
Electronic Education: Driving interactive digital signage or smart classroom terminals with its dual-display support.
System Integrators needing a stable, high-performance platform for specialized software.
Factory Managers looking to replace failure-prone office PCs with ruggedized industrial hardware.
IT Directors requiring high-security hardware that supports network isolation via dual LAN.
A: Every IBOX-205 Plus undergoes rigorous quality inspection, including high-temperature burn-in tests and vibration resistance checks to ensure the anodic oxidation aluminum chassis meets CE, CCC, FCC Class A, and ROHS standards.
A: The device supports multiple mounting options including wall-mount and desktop. Ensure the unit is installed in a way that allows for natural air convection around the aluminum cooling fins for the fanless system to operate optimally.
A: Yes. The system supports Wake on LAN and PXE boot for remote startup, as well as a hardware Watchdog (0~255 level) which automatically reboots the PC in the event of a software freeze.
A: The unit features TPM 2.0 security encryption (standard in modern versions) and supports a DC 12V stable input. The dual Intel LAN controllers provide superior surge protection compared to generic chips.
A: Maintenance is minimal since there are no fans. Periodically check that the cooling fins are free of heavy dust accumulation. In case of a rare emergency fault, the IBOX-205 Plus supports Auto power on when there is electricity, ensuring minimal downtime.
The IBOX-205 Plus I5 ipc industrial computer is more than just a PC; it is a durable tool designed to eliminate downtime. By combining the power of an Intel Core i5 with the extreme connectivity of 6*COM ports, Yanling provides a solution that solves your integration challenges today and stays reliable for years to come.
Optimize your industrial workflow now. Contact Yanling for factory-direct pricing on the IBOX-205 Plus!
