Detailed Product Description

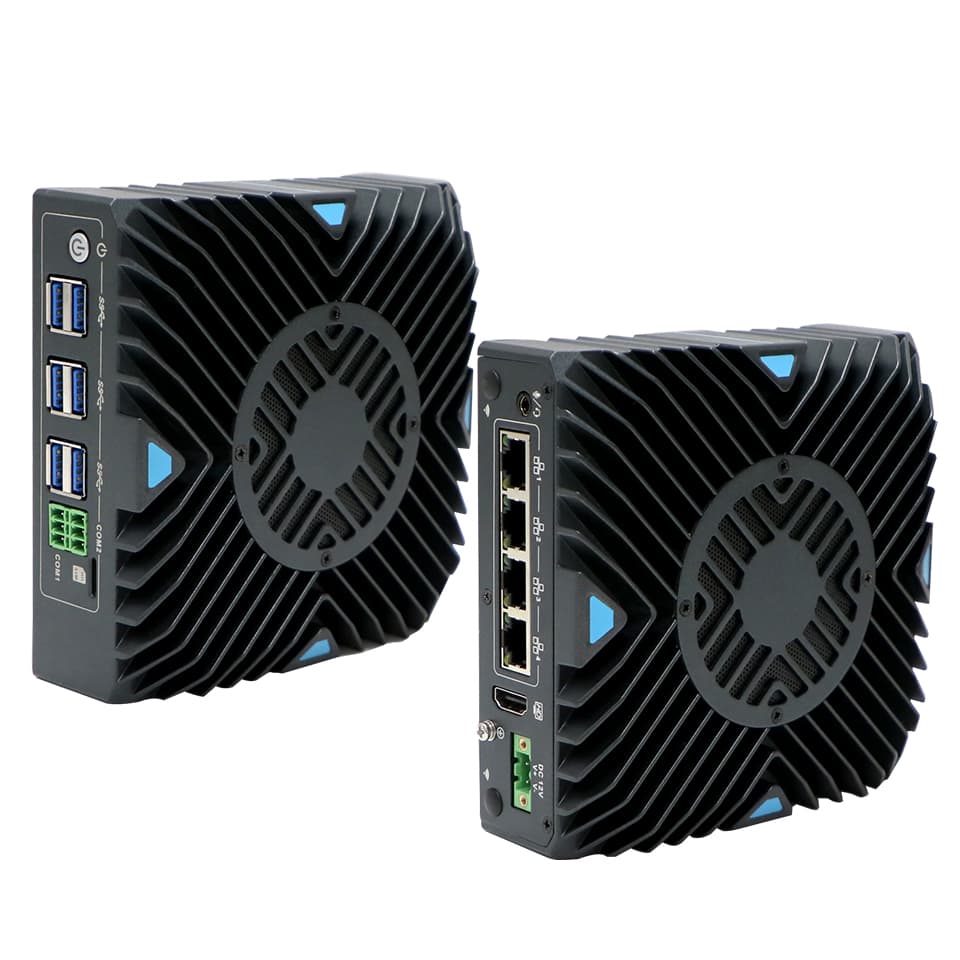

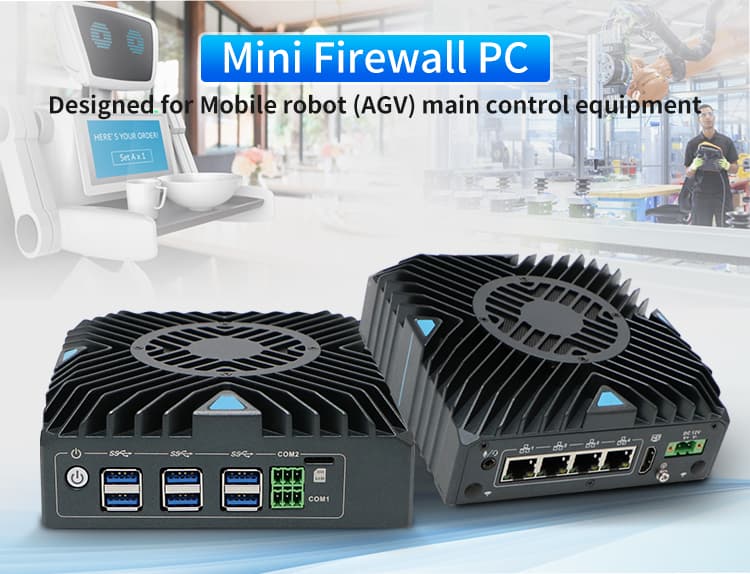

This purpose-built AGV solution industrial linux computer (Model: Nano-N312F) is a high-performance, compact workstation engineered for the rigorous demands of automated guided vehicles and mobile robotics. Encased in a high-quality all-aluminum alloy chassis with a unique fan-assisted heat dissipation design, it provides exceptional durability and thermal management.
Scalable Performance
| Robust Connectivity
| Versatile Storage & Expansion
| Industrial Stability
|
 |
Specifications of AGV Solution Industrial Linux Computer 4 Intel Gigabit LAN | |
Machine Model | Nano-N312F |
Chassis color | Metallic gray (color can be customized) |
Chassis material | High quality aluminum alloy |
processor | Intel Core i3 10110U (dual-core 4 threads, base 2.1 GHz, turbo frequency 4.1 GHz) |
Intel Core i5 8260U ( 4 cores 8 threads, base 1.6 GHz, turbo frequency 3.9 GHz) | |
Intel Core i7 10810U (6 cores 12 threads, base 1.1 GHz, turbo frequency 4.9 GHz) | |
Memory | 1 DDR4 2400/2666 SODIMM memory slot, up to 32 GB |
BIOS | AMI EFI BIOS |
Display chip | Intel(R) UHD Graphics 620, Intel(R) UHD Graphics |
Display Interface | 1 HDMI high-definition display (resolution up to 4096x2304@24Hz) |

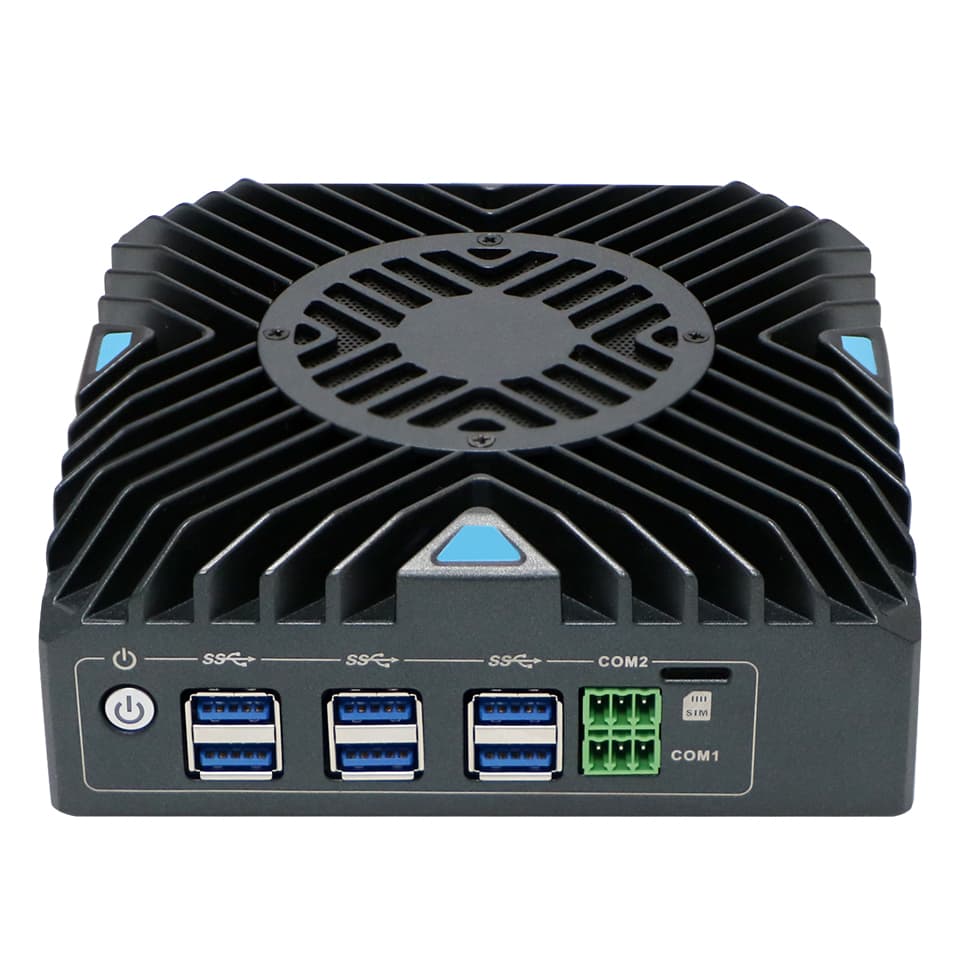

Front panel I/O ports | 1 power button, 6 USB3.1, 1 SIM card holder |
2 3-pin Phoenix terminal COM ports (can output 2 selectable RS232/485 mode COM) | |

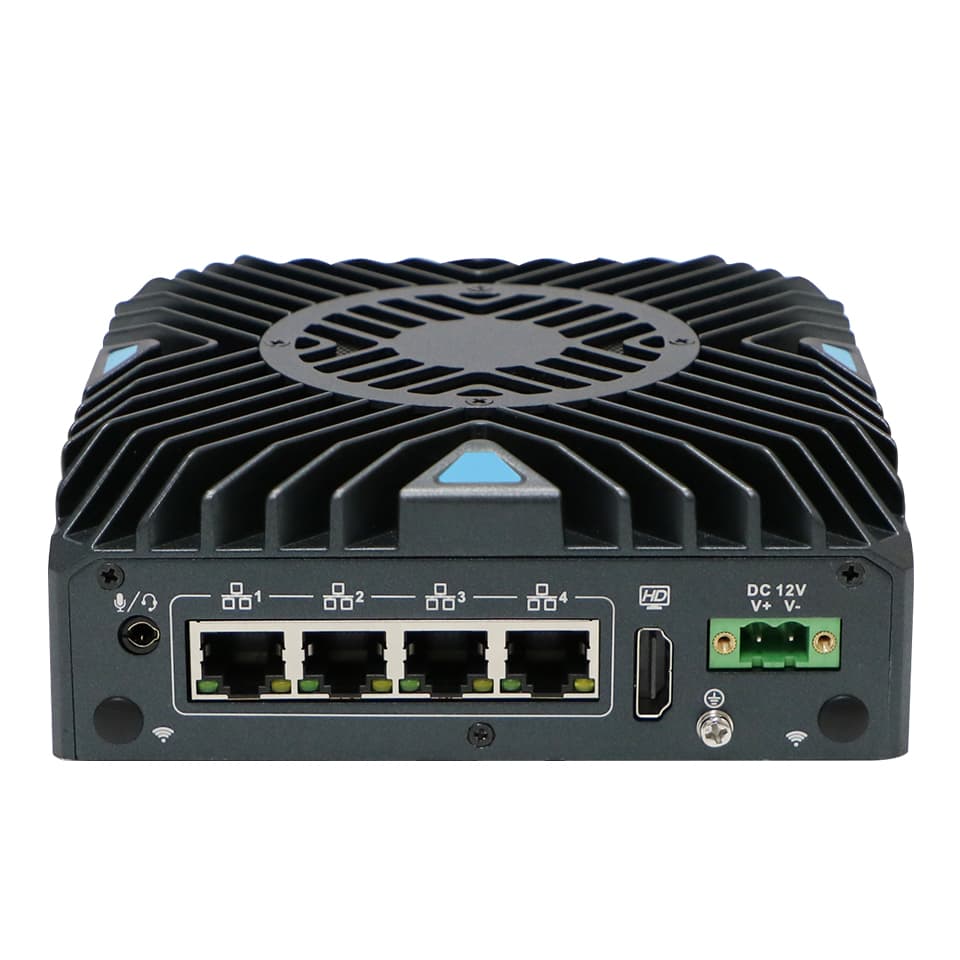

Rear Panel I/O Ports | 4 RJ45 network ports, 1 HDMI port, 1 DC port |
Expansion slots | 1 M.2 2280 M-Key slot ( supports SATA protocol and NVME protocol) |
1 MINI PCIE slot (WIFI/3G/4G, choose one), front SIM card holder | |
Expandable interface (standard delivery does not include this interface): 2 USB2.0, 3 GPIO | |
Network Interface | 4 Intel i210-AT/i211-AT 100/1000M Ethernet |
Storage Interface | 1 M.2 2280 slot, 1 2.5-inch hard disk slot, and RAID 0/1 |
Input voltage | DC 9 ~ 36V wide voltage input |
Other features | Power on, scheduled startup, network wake-up, PXE boot, watchdog (0 to 255 levels), TPM2.0 security encryption |
Operating temperature | 0℃ ～ +40℃ (commercial HDD), -20℃ ～ +50℃ (industrial SSD), surface air flow |
Operating humidity | 5% to 95% non-condensing state |
Security certification | CE, CCC, FCC Class A, RoHS |

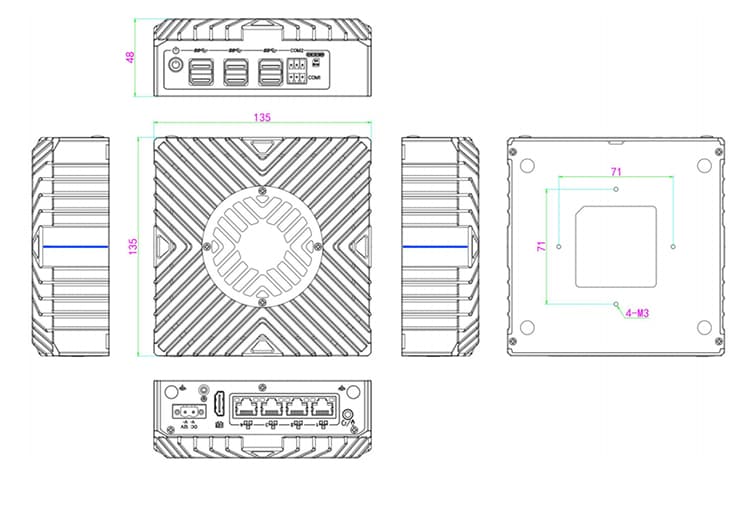

Product size | 135 * 135 * 48 mm |
Machine weight | 0.83 kg |
Application Areas | Business office, high-definition video playback, electronic education, machine vision, industrial automation, etc. |
 |

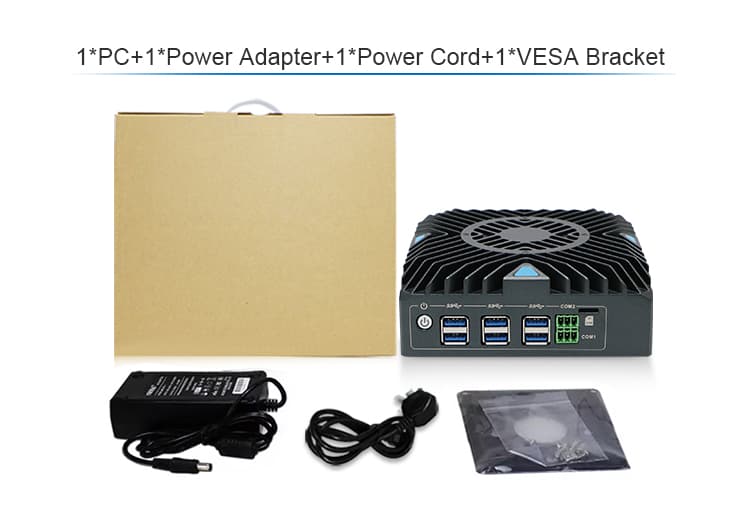

Packing list for This AGV solution industrial linux computer | ||
name | quantity | Specification |
adapter | 1 | i3/i5 recommends 12V 5A |
i7 recommends 12V 7.5A | ||
Power cord | 1 | Optional national standard, American standard, British standard, etc. |
Certificate | 1 | Yanling Industrial Control Logo/Neutral |
Warranty card | 1 | Yanling Industrial Control Logo/Neutral |
VESA Mount | 1 | Standard back mount |
Optional information of AGV solution industrial linux computer | |||
Configuration 1 | Nano-N312F | Intel Core i3 10110U Intel i210-AT/ i211-AT | Standard interface |
Configuration 2 | Intel Core i5 8260U Intel i210-AT/ i211-AT | Standard interface | |
Configuration 2 | Intel Core i7 10810U Intel i210-AT/i211-AT | Standard interface | |

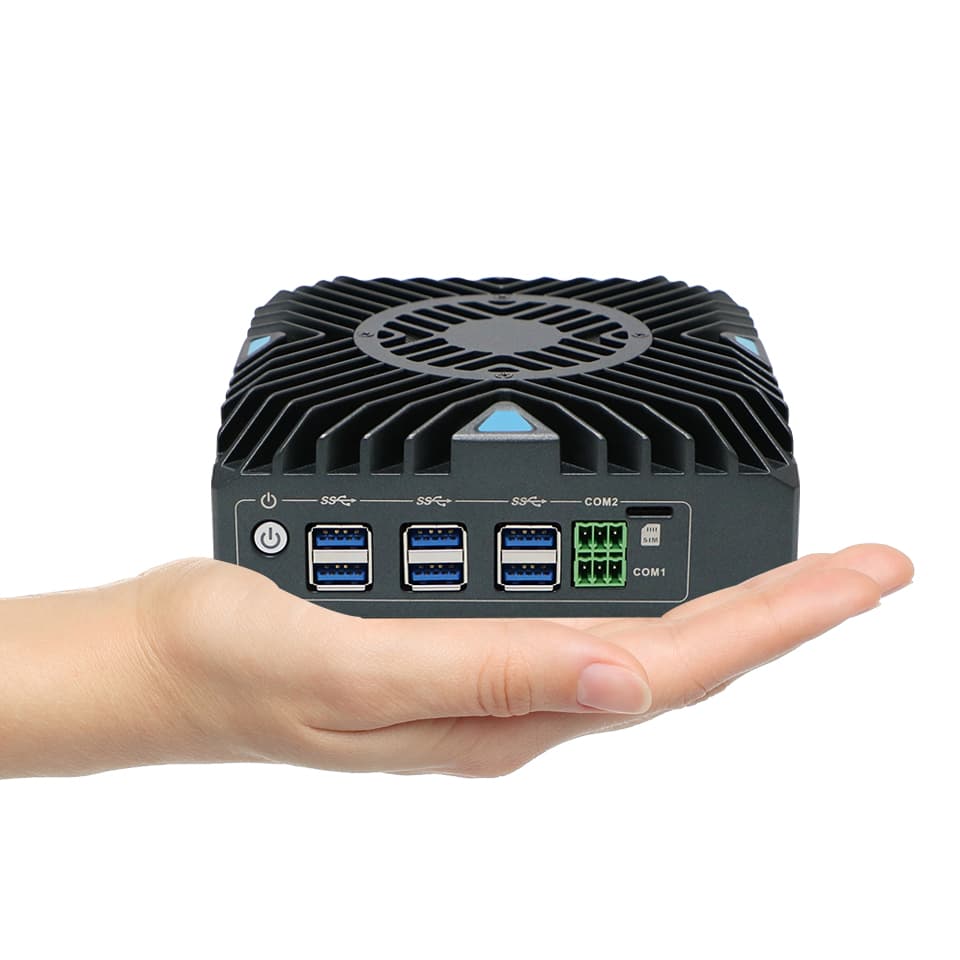

Unlike general-purpose PCs, this industrial linux computer is specifically optimized for AGV/AMR platforms. Its ultra-compact size (135 * 135 * 48 mm) and light weight (0.83 kg) allow for seamless integration into small robot chassis without sacrificing high-end processing power.
Multi-LAN capability is critical for industrial linux computers managing complex sensor arrays. These ports provide dedicated bandwidth for LiDAR, vision cameras, and PLC communication simultaneously, ensuring low-latency data flow and network isolation for improved security and reliability.
Power fluctuations are common in mobile industrial environments. The 9-36V wide voltage support ensures that the computer remains operational despite voltage drops or spikes from a robot's battery or unstable power grids, providing a critical "fail-safe" layer for continuous operation.
AGV & AMR Navigation: Ideal for logistics robots requiring real-time obstacle avoidance and mapping via LiDAR and vision sensors.
Machine Vision & AI Inspection: Perfect for automated quality control lines where 4 network ports can handle multiple high-resolution cameras.
Industrial Gateway & Automation: Suitable for factory floor data aggregation and PLC control using the selectable RS232/485 Phoenix terminal serial ports.
We highly recommend the Nano-N312F for system integrators in the robotics, smart warehousing, and edge computing sectors who require a rugged, high-performance Linux-ready platform that fits in tight spaces.
|
|

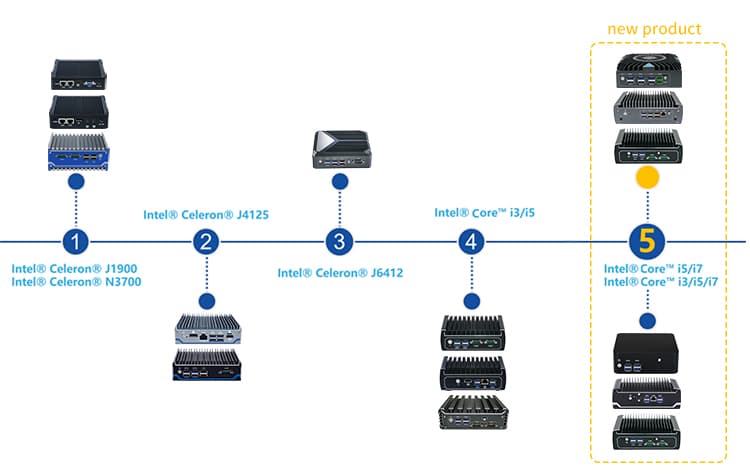

At YANLING, we offer flexible hardware configurations to meet your project's specific needs:
Processor
| Memory
| Storage
| Expandable Interfaces
|
YANLING provides professional-grade technical support to ensure your industrial linux computer is deployment-ready:
Linux Optimization
| Custom BIOS Settings
| Certification Compliance
|
Elevate your AGV and industrial automation projects with the Nano-N312F. This industrial linux computer combines the power of 10th Gen Intel Core i7 with the ruggedness of an all-aluminum, wide-voltage design. Contact the YANLING team today for a technical consultation or to place your order and secure factory-direct pricing for your next mission-critical deployment!
