Product Details
| Place of Origin: | Industrial Computer Manufactur |
|---|---|
| Brand Name: | YANLING |
| Certification: | CCC, CE, ROHS, ISO9001 |
| Model Number: | ITPC-A113 |
Payment & Shipping Terms
| Min Order: | 100 Unit |
|---|---|
| Price: | $ Customized |
| Packaging: | Each pc for one neutral box |
| Delivery Time: | 3~5 Working Days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 10000 Pcs/Month |
Detailed Product Description

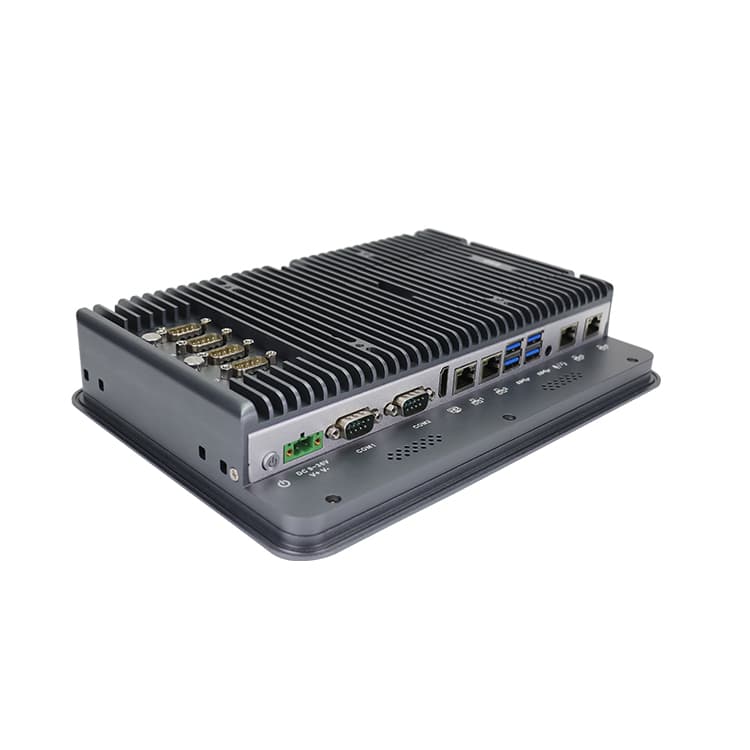

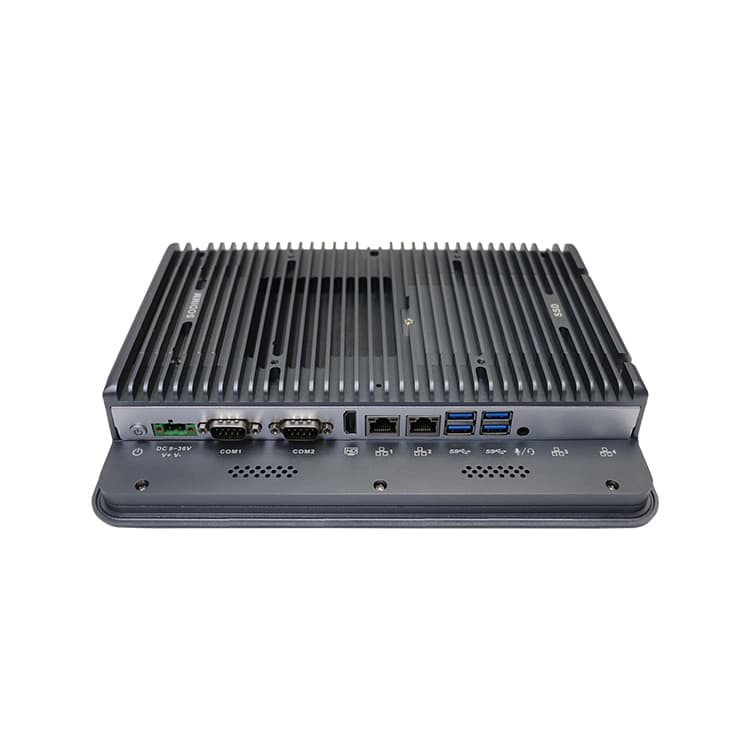

10.1 inch industrial panel computer (Model: ITPC-A113) is a high-performance HMI solution engineered for mission-critical reliability. It features a rugged aluminum alloy die-casting chassis with a fanless design, ensuring silent, dust-free operation. This series supports a range of processors, from Intel Celeron J6412 to high-end Intel Core i7-10710U, providing scalable power for complex industrial tasks. Built for harsh environments, it includes a full flat front panel with IP65 protection, TPM 2.0 for hardware-level security, and a robust 9~36V wide voltage input with reverse polarity protection.

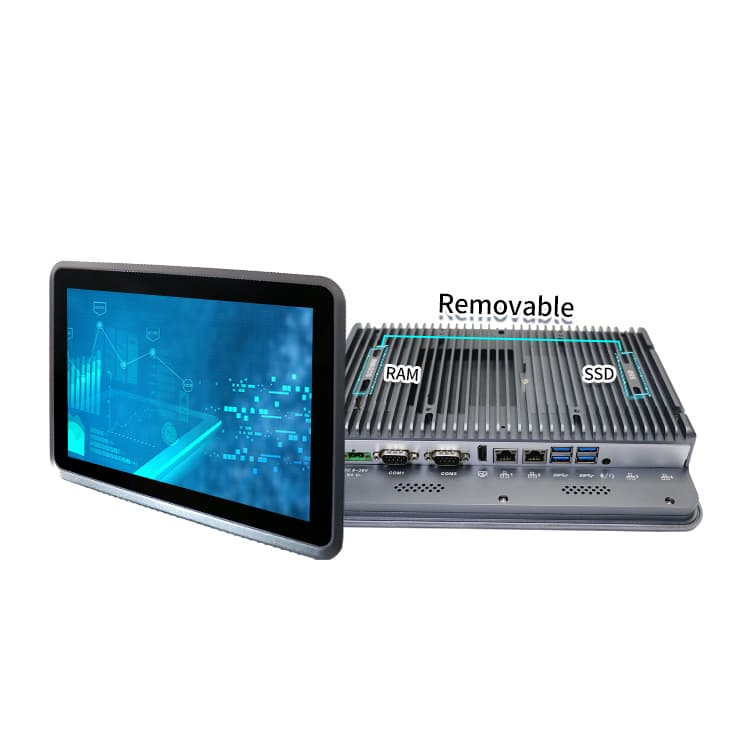

Category | Specification Details | Category | Connectivity & Expansion |
Model | ITPC-A113 (Grey) | I/O Ports | 1HDMI, 4USB3.0, 2*Intel LAN (Up to 4) |
Processor | Intel Core i3/i5/i7 (10th Gen) / J6412 | Serial Port | 2RS232/422/485 (Optional 6COM) |
Memory | 1*DDR4 SODIMM (Up to 32GB) | Expansion | 1*Mini PCIE (WiFi/BT/3G/4G with SIM) |
LCD/Touch | 10.1" TFT-LCD (1280*800) / Capacitive | Storage | 1M.2 2280 (SATA), 12.5" SSD/HDD |
Power | DC 9V~36V Wide Voltage | OS Support | Windows 10/11, Linux |
Dimensions | 271.5 * 190 * 53 mm | Environment | -20°C ~ +60°C (with SSD) |
The 10.1-inch size is the "goldilocks" of industrial displays, offering the perfect balance between high-resolution data visualization and physical compactness.
Space Optimization: With dimensions of 271.5 * 190 mm, it fits into narrow control cabinets and mobile workstations where larger screens cannot.
High Pixel Density: The 1280 * 800 resolution on a 10.1-inch screen provides sharp, clear text and graphics, essential for detailed monitoring.
When to Choose 10.1 inch: This size is mandatory for handheld industrial terminals, space-constrained AGV control interfaces, or bedside medical diagnostic equipment where portability and readability must coexist.

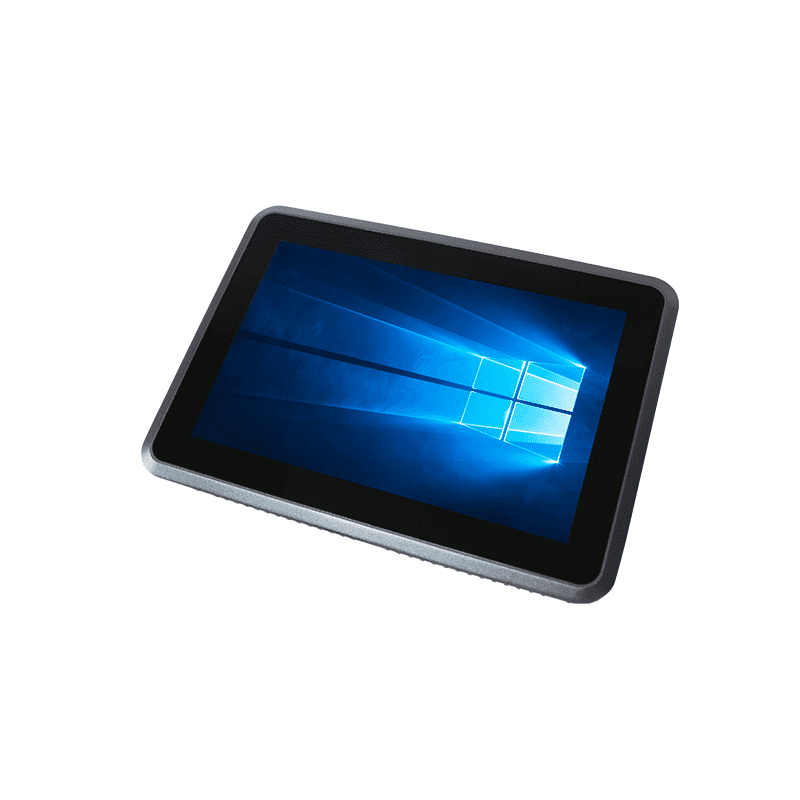

IP65 Waterproof Front PanelThis allows the unit to be safely deployed in wash-down environments (like food processing) or outdoor kiosks, as it is completely protected against water and dust ingress. |

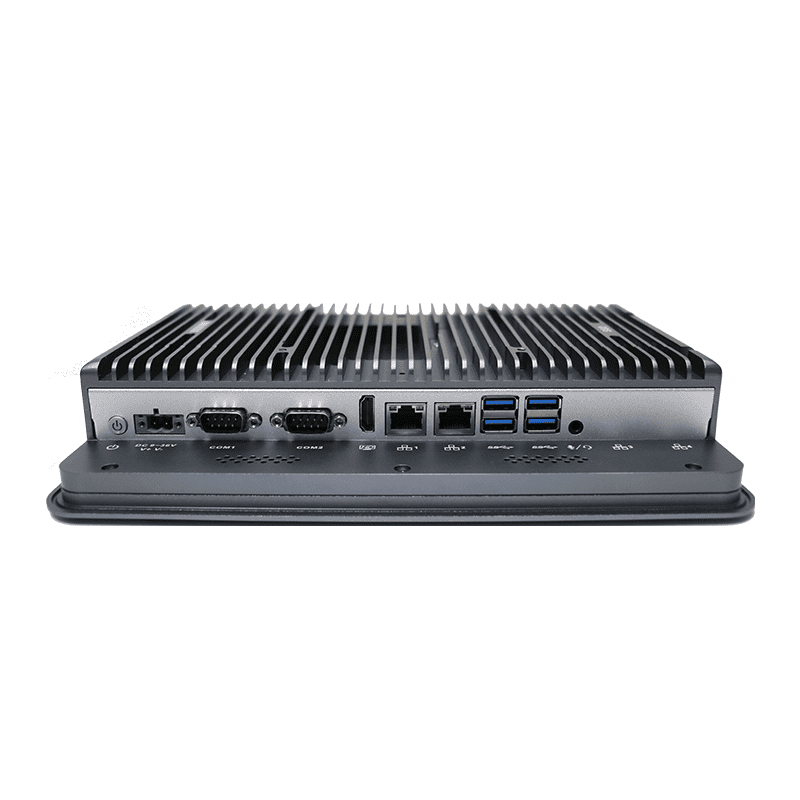

9-36V Wide VoltageThis feature is critical for an industrial panel computer deployed on vehicles or unstable power grids, as it protects sensitive internal components from voltage spikes and drops. |
Automated Logistics (AGV/AMR): Mounted on mobile robots, the ITPC-A113 uses its 3G/4G/WiFi connectivity and 9-36V input to manage real-time navigation and fleet coordination in warehouses.
Smart Factory HMI: Integrated into a CNC machine cabinet, its RS232/422/485 ports allow it to communicate directly with PLCs for real-time production monitoring.
Outdoor Interactive Kiosks: Its 350 cd/m² brightness and IP65 rating make it ideal for self-service parking or ticketing terminals exposed to the elements.
Installation Steps
| Use Guide
| Maintenance
|
Yanling provides professional technical assistance for the ITPC-A113, including:
BIOS Customization: Options for Auto Power On, PXE Boot, and Watchdog timers.
Hardware Expansion: Specialized customization for up to 6 COM ports or 4 Network ports.
Quality Assurance: All units are built with industrial-grade components and undergo rigorous burn-in testing.
Ready to upgrade your industrial infrastructure with the ultimate 10.1-inch solution? The Yanling ITPC-A113 combines the power of Intel Core i7 with rugged fanless durability. Contact the Yanling team today for wholesale pricing, OEM/ODM samples, and technical consultations!
