YANLING Industrial Computer Technology (Shenzhen) Co., Ltd
Product Details
| Place of Origin: | Mini PC manufacturer China |
|---|---|
| Brand Name: | YANLING |
| Certification: | CCC,CE,ROHS,ISO9001 |
| Model Number: | N5 Plus |
Payment & Shipping Terms
| Min Order: | 1 Unit |
|---|---|
| Price: | $ |
| Packaging: | Each pc for one neutral box |
| Delivery Time: | 3-5 Days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 10000 Pcs/Month |
Detailed Product Description

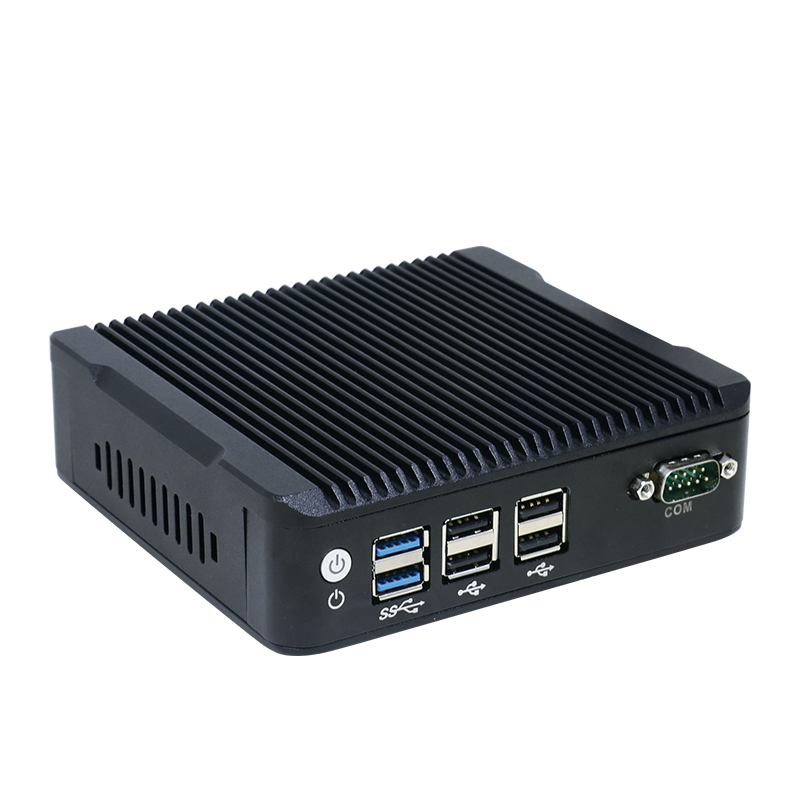

The 4K Triple Display Industrial Mini PC (Model: N5 Plus) is a robust embedded solution engineered for high-definition visual processing and 24/7 reliability. Powered by the Intel Pentium J3710 Quad Core processor, it is specifically designed to handle complex multi-screen tasks in space-constrained industrial environments.
Primary Function
| Key Features
| Technical Versatility
|

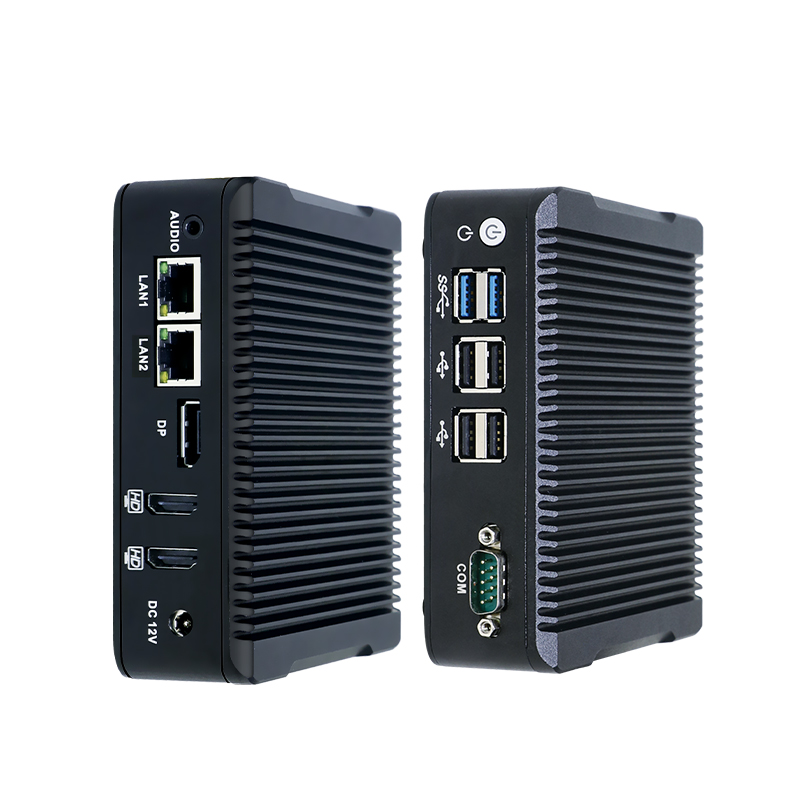

 | Why Choose 4K Triple Display Industrial Mini PCIntegrating 4K Triple Display capability into this industrial mini pc provides significant operational benefits: Enhanced Visualization
Increased Productivity
Cost Efficiency
|
Specifications of This 4K Triple Display Industrial Mini PC | |
Model | N5 Plus |
Color | Black (Color can be customized) |
Material | High-quality all aluminum，surface anodic oxidation |
Processor | Intel Pentium J3710（Quad core quad threading，1.6GHz，Max turbo 2.64GHz） |
RAM | Support 1*DDR3L 1600MHz SODIMM Memory Slot，Max. Support 8GB |
BIOS | AMI UEFI BIOS |
Display Chip | Intel HD Graphics |
Display Port | 1*DP，2*HDMI（Support synchronous and asynchronous three display） |
（DP、HDMI Max. Support Resolution: 4096x2160） | |

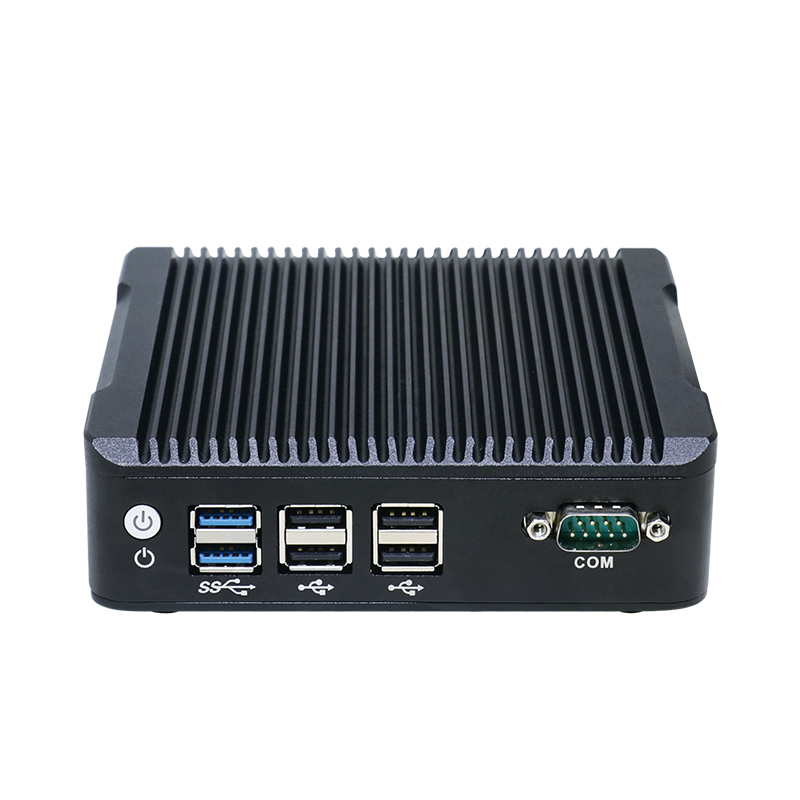

Front I/O | 1*Power Switch，2*USB3.0，4*USB2.0，1*RS232 COM |

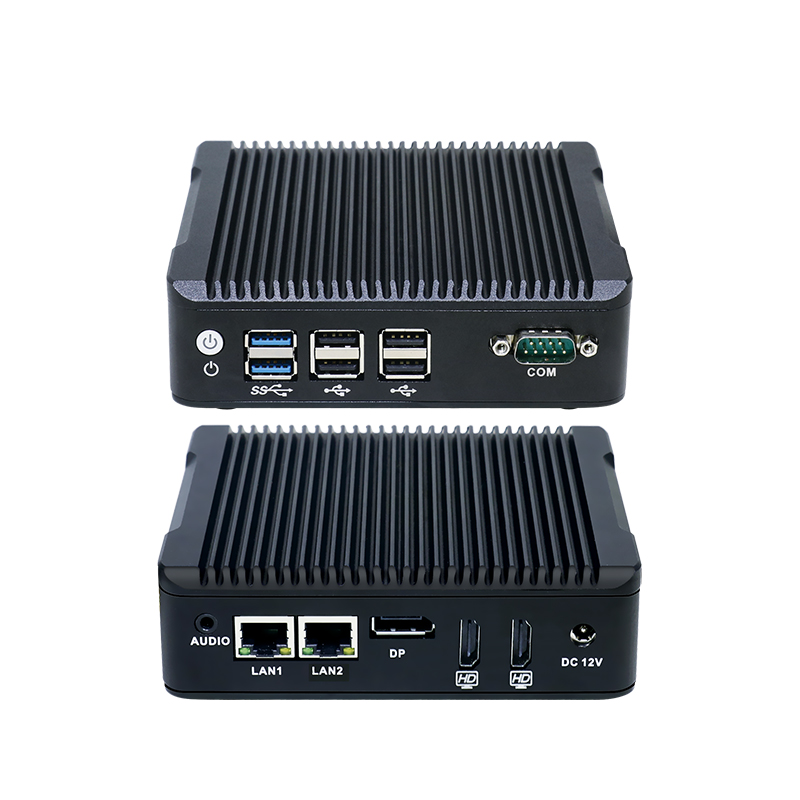

Rear I/O | 1*Audio，2*RJ45 LAN，1*DP，2*HDMI，1*DC Input |
Expansion Slot | Support 1*MINI PCIE Slot（Support MSATA） |
Support 1*MINI PCIE Slot（WIFI/3G/4G Optional），Embedded SIM Slot | |
Network | 2*100/1000M RTL8111H 1000M LAN |
Storage | 1*MSATA Slot，1*2.5” HDD |
Input Voltage | Support DC 12V Input |
Other Function | Auto power on when there is electricity、 Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level）(Standard version doesn’t set these function) |
Work Temp | 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +50℃（Industrial SSD），Surface air flow |
Work Humidity | 5% ～ 95% non-condensing |
Certificates | CE、 CCC、 FCC Class A、 RoHS |

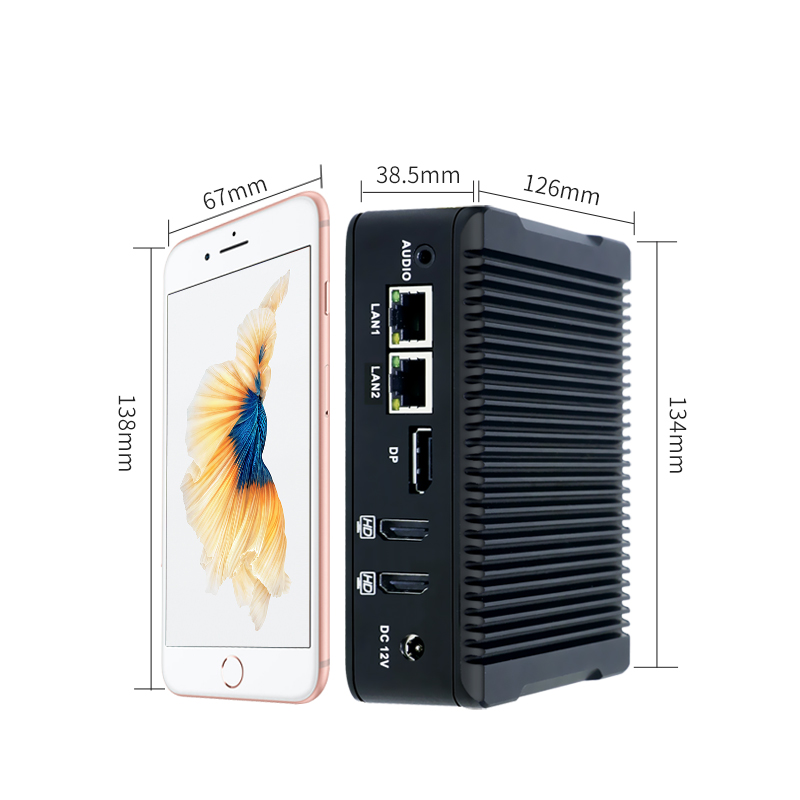

Dimension | 134 * 126 * 38.5 mm |
Net Weight | 0.7kg |
Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc. |
Premium Fanless Architecture: The high-quality all-aluminum chassis with surface anodic oxidation acts as a massive heat sink, eliminating the need for cooling fans and preventing dust-related failures.
Powerhouse Processing: The onboard Intel Pentium J3710 (up to 2.64GHz) provides four cores and four threads for smooth multitasking without the thermal footprint of traditional desktop CPUs.

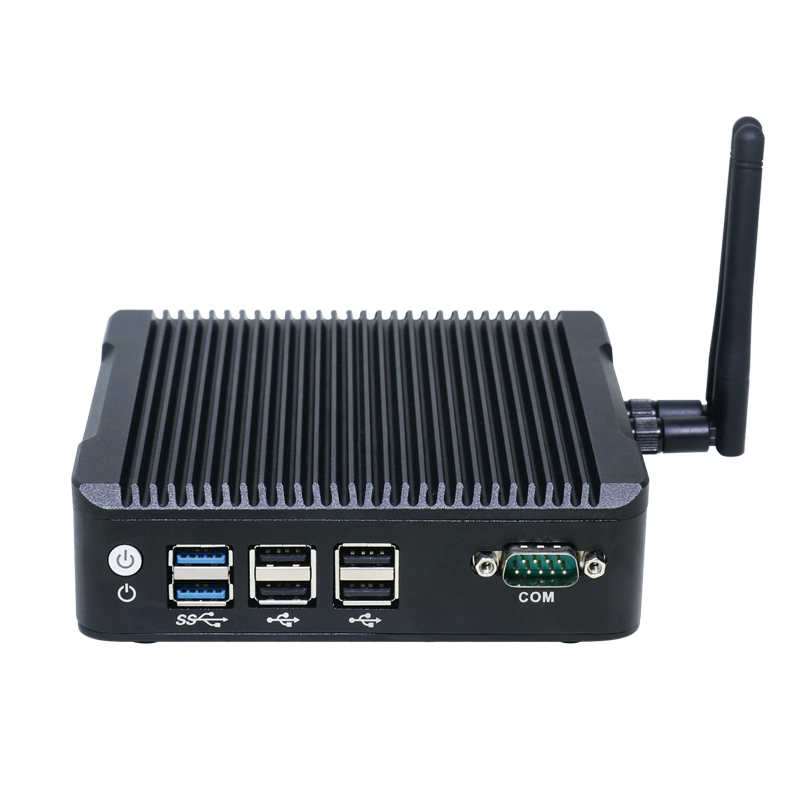

Expansion & Connectivity: Features an embedded SIM slot for 3G/4G connectivity and a Mini PCIE slot for WiFi, ensuring reliable communication in remote deployments.
Compact Footprint: Measuring only 134 x 126 x 38.5 mm, it is easily integrated into kiosks, DIN-rail cabinets, or behind monitors.
Smart Retail
| Industrial Automation
| Security & Surveillance
|
|
|
|
Precision CNC-milled aluminum ensures high structural integrity and thermal efficiency.
When purchasing, consider your OS requirements (Compatible with Windows 7/10 and Linux) and storage needs (MSATA for speed vs. 2.5" HDD for capacity).
Mount via VESA or custom brackets; ensure the surface air flow is not obstructed to maintain the operating temperature range of 0℃ - +50℃.
Wipe the exterior aluminum fins periodically to prevent dust insulation. No internal fan maintenance is required.
No Display: Verify DP/HDMI cables; the system supports up to 4K resolution.
System Freeze: Utilize the Watchdog (0~255 level) to automatically reboot the system in case of software crashes.
Emergency: In case of power loss, the Auto power on function ensures the device resumes operation immediately upon power restoration.
Anything else you can contact YANLING expert team directly to learn more
YANLING provides professional-grade support to ensure the success of your industrial projects:
Quality Certification
| Customization
|
The YANLING N5 Plus is a high-performance 4K Triple Display Industrial Mini PC that combines a powerful Intel quad-core processor with a rugged, fanless design. It is the ultimate choice for high-definition visual computing where reliability is non-negotiable.
Ready to upgrade your project? Contact YANLING Sales Team Today to discuss your project requirements or request a bulk quote.
