Detailed Product Description

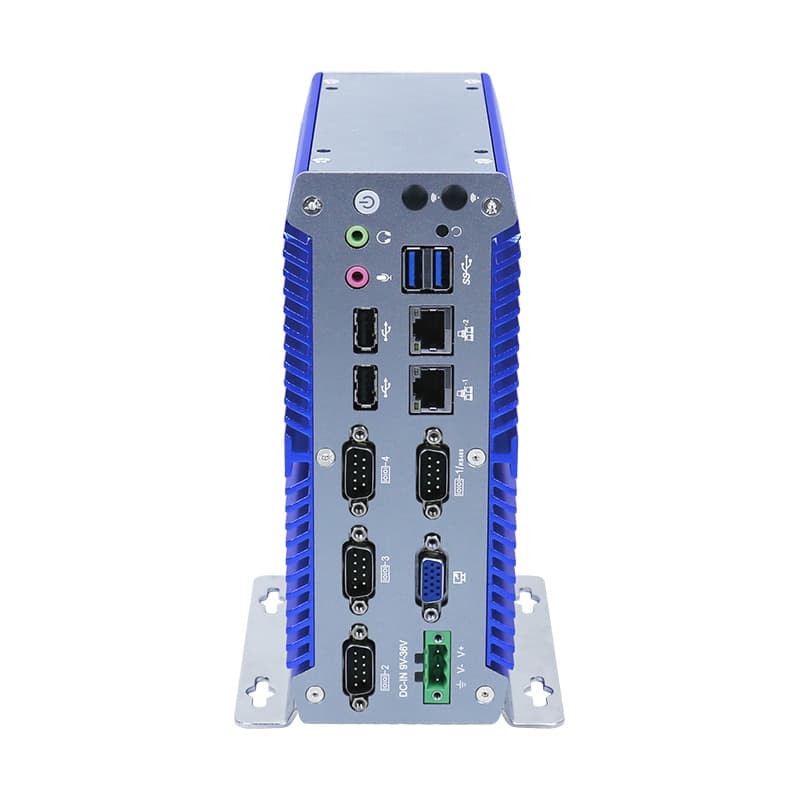

The Wide Voltage Fanless Rugged Industrial Computer IBOX-700 Plus is a high-performance rugged industrial computer engineered to thrive in the most volatile electrical and physical environments. Featuring a unique 9~36V wide voltage input with reverse polarity protection, this Wide Voltage Rugged Industrial Computer is purpose-built for vehicle and industrial power grid integration. Encased in a high-quality, anodized all-aluminum fanless chassis, it supports up to 7th Gen Intel Core i7 processors, ensuring workstation-grade processing for industrial automation and logistics transportation. With dual Intel Gigabit LAN and integrated 4G/LTE expansion, the IBOX-700 Plus represents the pinnacle of stable, "set-and-forget" edge computing.
Component | Specification Details | Connectivity & I/O | Environmental & Power |
Model | IBOX-700 Plus (Blue + Grey) | Serial Ports | 4* COM (Max 6* COM Optional) |
CPU Options | Celeron 3865U / Core i5 / i7 | USB Ports | 2* USB 3.0, 2* USB 2.0 |
RAM | DDR4 1866/2133 (Max 16GB) | Display | 1* VGA, 1* HDMI (Sync/Async) |
Network | 2* Intel i211-AT 1000M LAN | Wireless | WiFi/3G/4G with SIM Slot |
Storage | 1* MSATA + 1* 2.5" HDD/SSD | Audio | 1* MIC, 1* Speaker |
In the world of rugged industrial computers, power stability is often the weakest link. The IBOX-700 Plus solves this with a 9~36V wide voltage range that absorbs the spikes and dips common in heavy machinery and automotive batteries. The added reverse polarity protection is a critical "fail-safe" feature for field technicians, preventing catastrophic motherboard damage if power leads are connected incorrectly during installation.

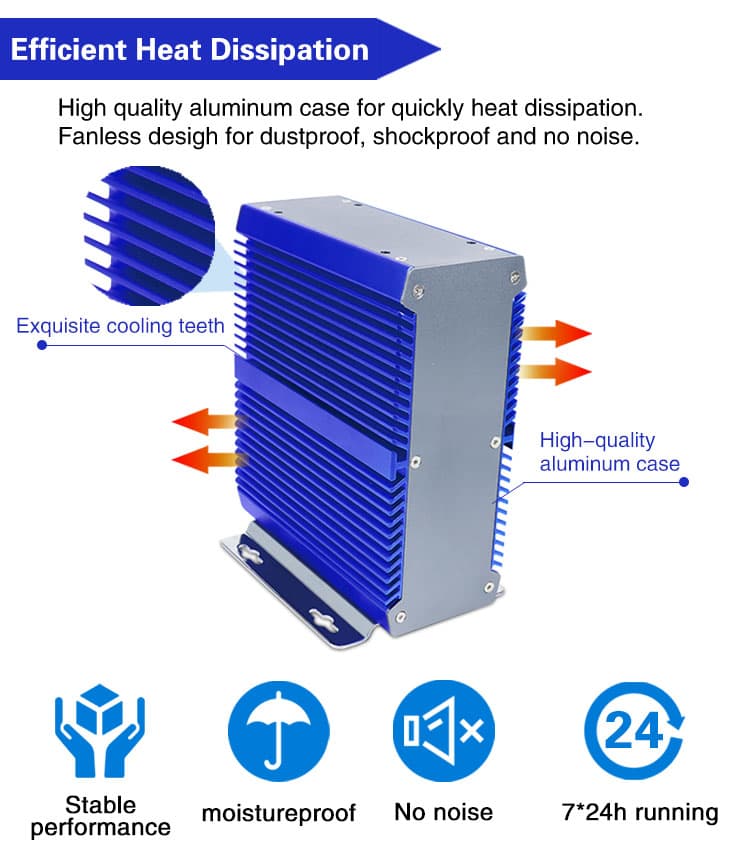

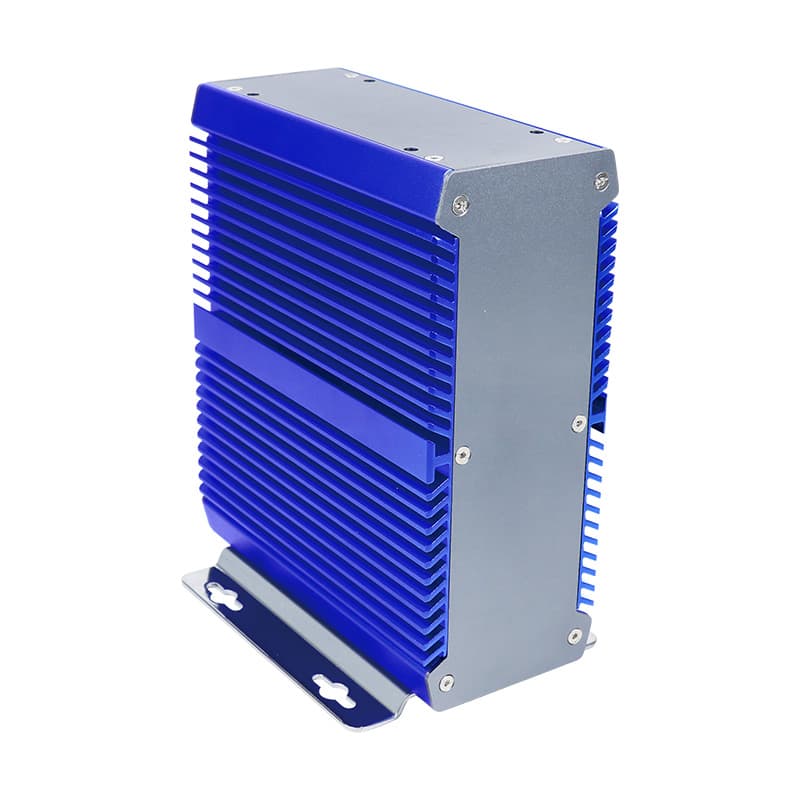

The signature "finned" all-aluminum structure is not just for aesthetics; it is a passive heat dissipation system. By removing the cooling fan, this rugged industrial computer eliminates the risk of mechanical failure and prevents the internal "vacuum cleaner effect" that destroys standard PCs in dusty warehouses or textile factories. This allows for 24/7 silent operation without maintenance.
Connectivity is vital for remote logistics. Unlike standard mini PCs, the IBOX-700 Plus features an embedded SIM slot and dedicated Mini-PCIE support for 4G modules. This transforms the unit into a powerful mobile gateway, capable of real-time data transmission for fleet management or remote medical monitoring where wired Ethernet or stable Wi-Fi is unavailable.
Logistics & Warehouse Management: Ideal for AGVs and forklifts where vibration resistance and 4G tracking are required.
Industrial Automation: Perfect for CNC control and factory floor data aggregation using the 4* COM (RS232/422/485) ports.
Medical Equipment: Silent, fanless operation makes it suitable for sensitive diagnostic environments.
Electronic Education: Stable 24/7 hardware for digital signage and classroom management.
Who Should Buy? System integrators and project managers looking for a durable, vehicle-ready computer that can handle both legacy serial connections (COM) and modern high-speed cloud connectivity.
When configuring your Wide Voltage Fanless Rugged Industrial Computer (IBOX-700 Plus), the Operating Temperature should be your primary consideration. If your deployment involves unconditioned outdoor cabinets or engine rooms, you must select an Industrial-grade SSD to achieve the stable -20℃ to +60℃ range.
Secondly, evaluate your I/O expansion needs. While the standard version is highly capable, YANLING offers optional GPIO and additional COM ports; identifying these requirements during the order phase ensures the factory-integrated shielding and internal cables are perfectly tuned for your specific sensors or actuators.
